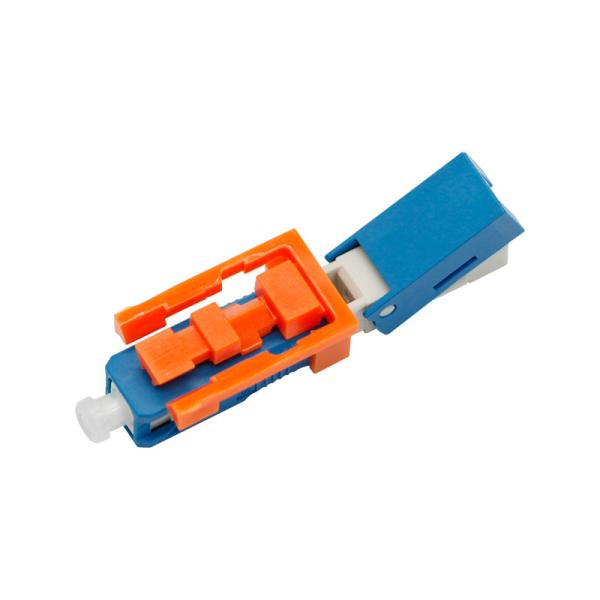

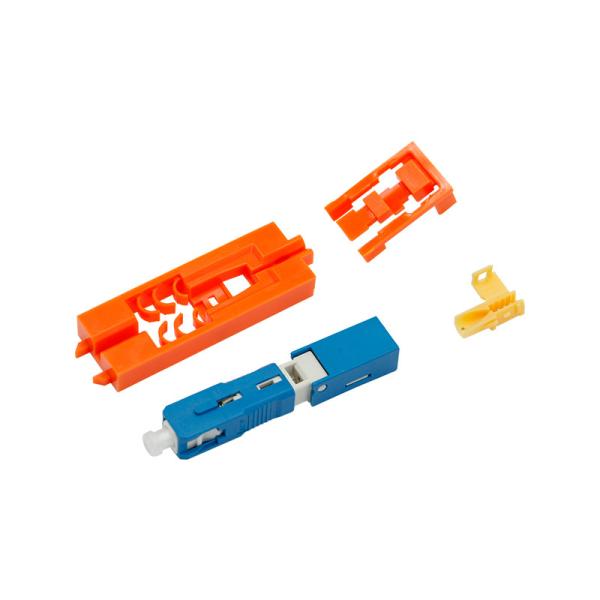

China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector
China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector
China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector
China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector
China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector
China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector
Specifications
Brand Name :
QualitY or QY
Certification :
ISO9001
Place of Origin :
Dongguan China
MOQ :
100pcs for minium order
Price :
USD 0.33usd-0.6usd
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000 Piece per Week SC UPC Fast Fiber Optic Connector
Delivery Time :
7 working days
Packaging Details :
PE bag or customized package & cartons
Name :
SC UPC Field-mounted quick Connector
Model type :
QSC60K-UPC
Connector :
SC UPC
Insertion loss :
<0.3dB(Max0.5dB)
Return loss :
>55db
Cable for :
2.0x3.0mm
Manufacturer :
Yes
Application :
FTTH drop cable,CATV ,CCTV,etc
Description

China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector

China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector

Overview

QY's SC single piece connectors are designed for quick and easy termination either on-site or in the factory. The SC range covers Multimode and Singlemode options which include all colours - Beige, Aqua, Violet, Blue and Green options for all Multimode and Singlemode & APC fibre types. All connectors have precision Zirconia ceramic ferrules which are pre-radiused for rapid polishing/finishing.

Features

  • ROHS, CE compliant
  • High Reliability
  • Low return losses due to the APC polish
  • Easy installation due to the SC connector
  • Effective data transmission
  • Reliable optical performance

Application

  • Fibre Optic Cable Distribution network
  • Fibre To The Home (FTTH) network
  • Highly stable and reliable performance
  • High Success Rate design and technology
  • Reusable termination capability (up to 5x)
  • Time-saving

Specification

Item Name

Unit

SC/UPC Field Installable Connector
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- UPC
Insertion Loss dB ≤0.5 ≤0.3
Return Loss dB ≥45 ≥50
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Reusability times ≥5
Tensile Strength N ≥50
