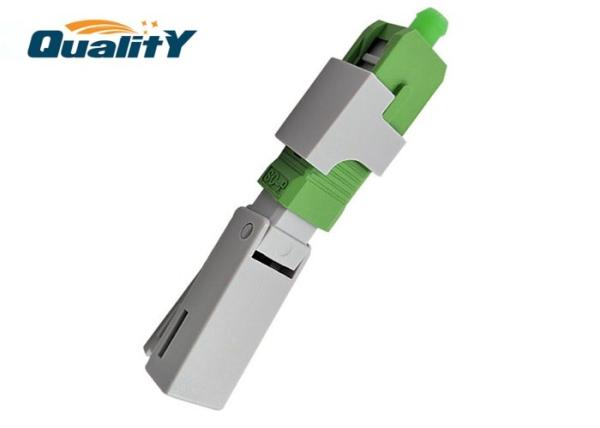

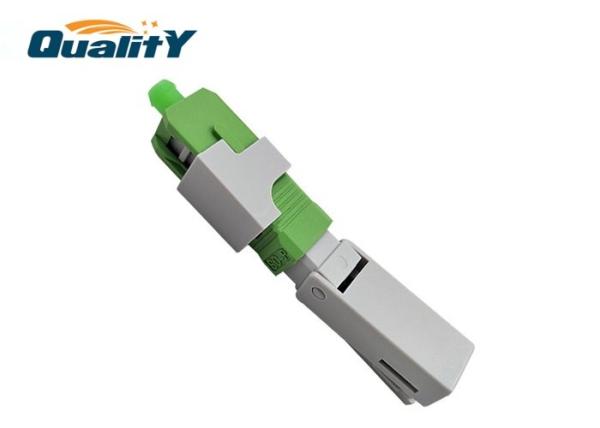

SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
SC/APC Fiber Optic Fast Connector For CATV FTTH
Specifications
Brand Name :
QualitY or QY
Certification :
ISO9001
Place of Origin :
Dongguan China
MOQ :
100pcs for minium order
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Delivery Time :
7 working days
Packaging Details :
PE bag or customized package & cartons
Name :
SC APC field mountable fast connector
Insertion loss :
≤0.3dB
Color :
Green
Return Loss :
≥60dB
Material :
Plastic
Lead time :
3-7working days
Description

SC/APC Fiber Optic Fast Connector For CATV FTTH

Overview

QY's SC single piece connectors are designed for quick and easy termination either on-site or in the factory. The SC range covers Multimode and Singlemode options which include all colours - Beige, Aqua, Violet, Blue and Green options for all Multimode and Singlemode & APC fiber types. All connectors have precision Zirconia ceramic ferrules which are pre-radiused for rapid polishing.

Features

  • ROHS, CE compliant
  • High Reliability
  • Low return losses due to the APC polish
  • Easy installation due to the SC connector
  • Effective data transmission
  • Reliable optical performance

Application

  • Fibre Optic Cable Distribution network
  • Fibre To The Home (FTTH) network
  • Highly stable and reliable performance
  • High Success Rate design and technology
  • Reusable termination capability (up to 5x)
  • Time-saving

Specification

Item Name

Unit

SC/APC Field Installable Connector
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- APC
Insertion Loss dB ≤0.5 ≤0.3
Return Loss dB ≥50 ≥60
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Reusability times ≥5
Tensile Strength N ≥50
