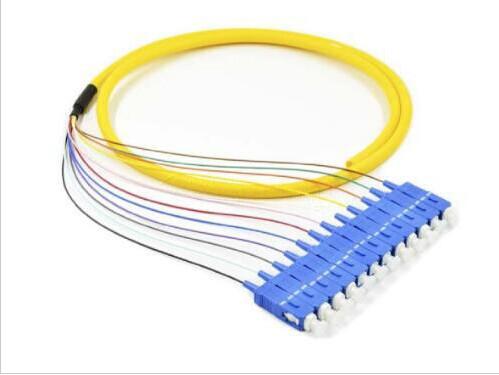

Yello Color Optic Fiber Patch Cable Patch Cords SC 12 Cores Bundle Pigtail
Yello Color Optic Fiber Patch Cable Patch Cords SC 12 Cores Bundle Pigtail
Yello Color Optic Fiber Patch Cable Patch Cords SC 12 Cores Bundle Pigtail
Yello Color Optic Fiber Patch Cable Patch Cords SC 12 Cores Bundle Pigtail
Yello Color Optic Fiber Patch Cable Patch Cords SC 12 Cores Bundle Pigtail
Yello Color Optic Fiber Patch Cable Patch Cords SC 12 Cores Bundle Pigtail
Specifications
Brand Name :
Qingying
Model Number :
Optic Fiber Patch Cable Patch Cords Pigtails SC 12 Cores Bundle Pigtail
Certification :
IEC 60794-2-10/11
Place of Origin :
China Dongguan
MOQ :
20pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50000pcs per week
Packaging Details :
2000 Piece/Pieces per Day Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable.
Name :
multimode fiber patch cable
Fiber Type :
OM1(62.5/125),OM2(50/125)
Connector Type: :
SC/UPC
Cable Length :
1/1.5/3/5/10/20m or custom
Catagory :
Fiber Optic Patch Cord
Cable Outer Diameter: :
0.9/2.0/3.0mm
Description

Product Description

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.

Features:

---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;


Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.

Product Performance:

Parameter Specification
Connectors Type SC,LC,FC,ST,MU,E2000,MTRJ,MPO etc. or customized
Fiber Type Single Mode Multi Mode
Matched Bandwidth Range 1250~1650nm 1250~1650nm
Testing Wavelength 1310nm, 1550nm 1310nm, 1550nm
IL(dB) Typical≤0.20dB,Max≤0.30dB Typical≤0.150dB,Max≤0.30dB
RL(dB) UPC≥50.0dB,APC≥60.0dB UPC≥50.0dB,APC≥60.0dB
Repeatability ≤0.10dB
Exchange ability ≤0.20dB
Durability 1000 Mating,Typical≤0.20dB
Tensile Force ≥120N(except 0.9mm cable)or customized
Operating Temperature -20℃ ~ +70℃
Storage Temperature -40℃ ~ +85℃

Ordering Guide:

Connector Cable Type Fiber Type Fiber Core Surface Type Cable Diameter Skin Material Length
FC,LC,SC,ST,
MU,MTRJ,E2000,
MTRJ,MPO etc. or customized		 Indoor optical fiber cable,Outdoor optical fiber cable,Armored optical fiber cable, FTTH drop optical fiber cable SM-G652D
SM-G657A1
SM-G657A2
SM-G657B3
SM-G655
OM1(62.5)
OM2(50)
OM3(50)-150
OM3(50)-300
OM4(50)-550
OM5(50)-550		 According to cable mode and customer designated some conclusions to decide UPC
APC

 According to cable mode and customer designated some conclusions to decide PVC
LSZH
TPU
PE
……		 1M
3M
5M
10M
……
or customized




Yello Color Optic Fiber Patch Cable Patch Cords SC 12 Cores Bundle Pigtail
