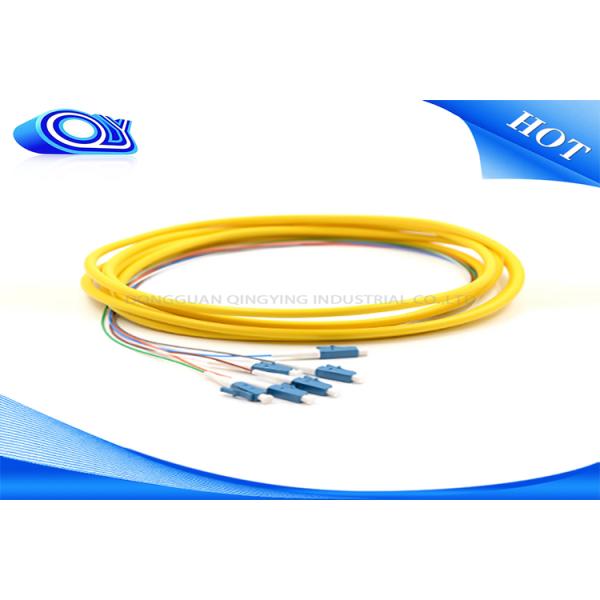

LC Multimode Fiber Pigtail
LC Multimode Fiber Pigtail
Specifications
Brand Name :
Qy or Qingying
Model Number :
LC/UPC Jaketed 6 Core Optic Fiber pigtails Multimode 50/125um
Place of Origin :
Dongguan China
MOQ :
50 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pcs per week
Packaging Details :
one piece in a polybag and 300 pieces in a carton. Delivery Detail: 8 days
OM3 LC Pigtail: :
PC/UPC/APC
Diameter :
0.9MM/2.0MM/3.0MM
Connector Design :
SC/ST/FC/LC/MU/E2000
Options :
OFNR, LSZH & OFNP
Tensile Strength :
≥90 (3.0)≥70 (2.0) 0.9
Fiber :
9/125um, 50/125um,62.5/125um,ect
cores :
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc
Applications :
FTTH or FTTX
Description

LC/UPC Jaketed 6 Core Optic Fiber pigtails Multimode 50/125um

Product Description

Specifications
1.SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000
2.0.9mm / 2.0mm / 3.0mm
3.SM/MM SX/DX

Technical specifications:

Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss (dB) ≤0.2 (max≤0.3)
Repeatability (dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
diameter 0.9mm 2.0mm, 3.0mm etc
Cable material PVC, LSZH
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Features:

---Good durability

---Good exchangeability

---High temperature stability

---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing

---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;

Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.

LC Multimode Fiber Pigtail
