OM2 ST SC Multimode Duplex Fiber Patch Cord
OM2 ST SC Multimode Duplex Fiber Patch Cord
Specifications
Brand Name :
QualitY or QY
Model Number :
QPCST SC
Certification :
ISO90012015
Place of Origin :
Dongguan China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000pcs per day
Delivery Time :
3-7 working days
Packaging Details :
PE bag or customized package & cartons
Insertion loss :
≤0.3dB
Fiber type :
MM
Connector type :
SC to ST
Length :
Any length is customizable
Material :
PVC/LSZH
Cable diameter :
3.0mm
Fiber count :
Duplex
Application :
FTTA FTTH BBU RRU RRH LTE & Base station
Description

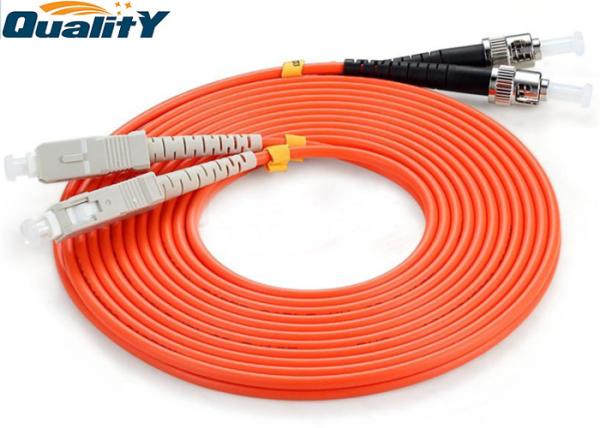

OM2 cable 3.0mm duplex 50/125 ST to SC multimode cable fiber jumper optic fiber patch cord

Products description

Fiber optic connector is a flexible device that can connect and disconnect fiber optic cable quickly. A large variety of fiber connector types are available, including LC fiber connector, SC fiber connector, FC fiber connector, ST fiber connector and so on. Among them, SC fiber optic connector is one of the most common types of fiber optic connectors.

Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC FC/APC LC/APC MU/APC
Fiber Singlemode/Multimode, 50/125, 62.5/125 (Multimode) OM2&OM1, 50/125, 10G (Multimode) OM3
Cable Simplex, Duplex
OD Φ3.0mm, Φ2.0mm, Φ0.9mm
Material PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss ≤ 0.1dB (For Singlemode Master), ≤ 0.25dB (For Singlemode Standard, ≤ 0.25dB (For Multimode)

Feature

Excellent fiber (9/125 optical fiber, MM fiber is available)

Flame resistant PVC(or LSZH) coating on the high quality optic fiber

Tight buffer fiber easy of stripping.

Tight buffer fiber have excellent flame-retardant performance.

Aramid yarn as strength member make cable have excellent tensile strength.

The outer jacket material (LSZH)have many advantages such as anti-corrosion, anti-water, anti-UV, flame-retardant and harmless to environment etc.

Items Descriptions
Optical Fiber Fiber count 1F G.652D/G.657A/MM
Tight buffer fiber Diameter 0.90±0.05mm
Color Yellow
Strength member Material Aramid yarn
Sheath Material PVC/LSZH/TPU
Diameter 3.0±0.10mm
