4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
Specifications
Brand Name :
Quality (QY)
Model Number :
QY-4C Armored Cable
Certification :
ISO90012015
Place of Origin :
Dongguan China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000pcs/day
Delivery Time :
5-12wording days
Packaging Details :
PE bag/carton packing
Fiber type :
G657A1
Connector type :
LC/UPC-LC/UPC
Length :
Customized
Color :
Black
Fiber Core :
4cores
Storage temperature :
-20℃～+70℃
Materail :
PVC/LSZH
Application :
FTTA,FTTH,Oil & Ga,Broadcast & Industrial
Out diameter :
5.0mm
Description

LC/UPC-LC/UPC,SM,4 Core,G657A1,Armored Fiber Cable, PVC/ LSZH,Black ,OD=5.0mm

Armored fiber cable features a protective corrugated steel tube making it ideal for tactical and harsh outdoor applications. Its loose tube construction surrounds the fibers in a protective steel tube, allowing for expansion and contraction of the cable without damage to the fibers. The cable built with a stainless-steel tube inside which also can protect the fibers from the damages due to rats and wild animals.

Feature

  • High mechanical strength
  • High abrasion resistance
  • Superior shear strength
  • High elasticity jacket
  • Enhanced crush resistance
  • ROHS, CE compliant

Specification

Cable Count OD (mm) Weight Tensile strength General attenuation Minimal Bending radius Storage temperature
Short term Long term Singlemode Multimode
4 5.0±0.2 35kg 1200N 600N 1310nm ≤0.4dB/km 850nm ≤3.0dB/km 20D -20℃～+70℃
1550nm ≤0.3dB/km 1300nm ≤1.0dB/km

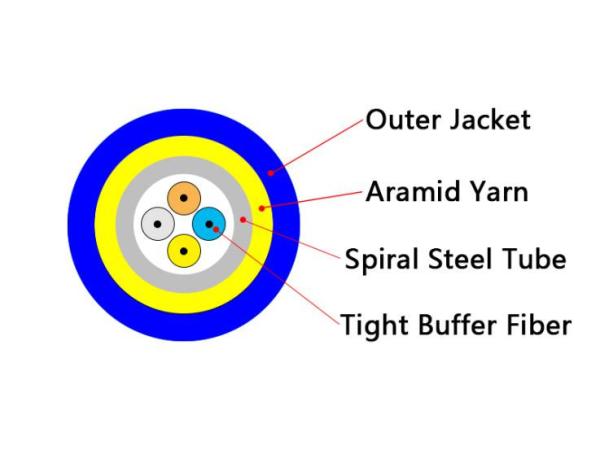

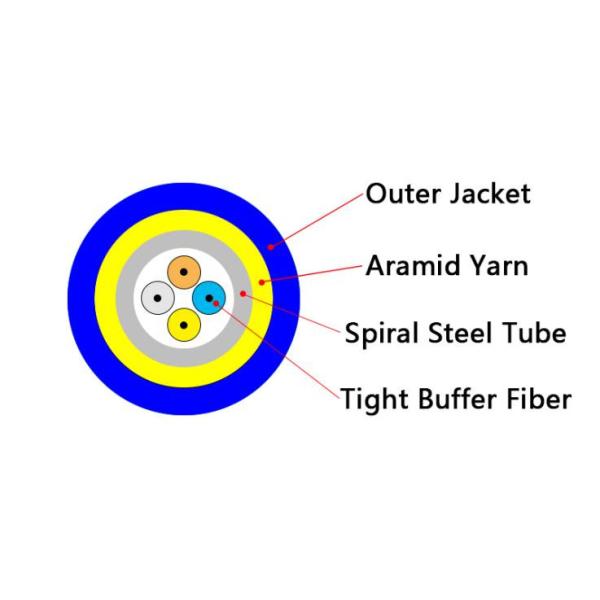

Cable Structure

l 4C: 4×Tight Buffer(0.6mm)+Spiral Steel Tube+Kevlar+PVC Jacket OD=5.0mm

4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
