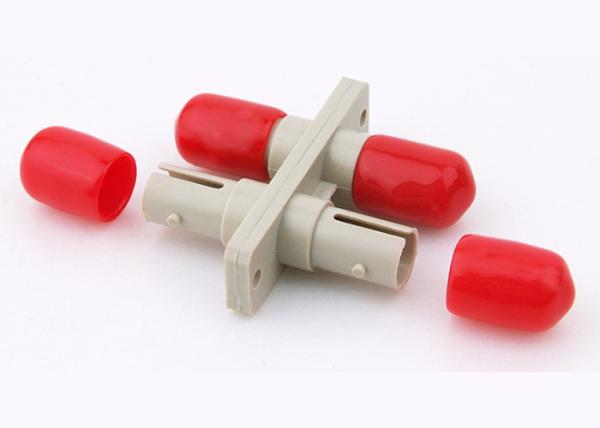

Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Specifications
Brand Name :
Qingying or QY
Model Number :
Simplex Or Duplex Adapter Fiber Optical adapter coupler ST D Type
Certification :
ISO90012015
Place of Origin :
Dongguan China
MOQ :
20pcs for minium order
Price :
negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
250000pcs per week
Packaging Details :
PE bag or customized package & cartons
Product Name :
Simplex / Duplex Adapter
Connector Type: :
ST D type
Package Size： :
46 X 33 X 23 CM:(5000PCS)
Insertion loss: :
< 0.2DB
Durability: :
>1000 mating times
Operation Temperature :
-40 ~+75 degree
Sleeve Material :
Zirconia
Color :
gray blue green
Description

Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication​

ST Compatible adapters are comprised of a metal outer obdy and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. Then combination of a ceramic /phosphor bronze alignment sleeves and precision metal housing provides consistent long-term mechanical and optical performance .

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.

They are available for use with either singlemode or multimode patch cables.

Parameter

Unit

 LC,SC,FC,ST,MTRJ,MPO
SM MM
PC UPC APC PC
Insertion Loss(Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Time >1000
Operating Temperature ℃ -40~75
Storage Temperature ℃ -40~85

Features :
Available in square ,D-shaped and rectangular mount .
Coupling body ,zinc alloy for long life.
Thread with nuts or snap-in coupling,easily install in panel mount .
compliant with TLA/ELA 568A, Bellcore G-326 and IEC874-10
All parts compliant with Rohs.
Application :
Telecommunication
CATV
LAN &WAN
Network
Broadband
FTTX

1. Q: How can I get your quotation?

A: Please provide us informations as below:

1. Item Number.

2. Quantity.

3. Company Profile (Name, Tel, Fax, Address, and Webpage)

4. Any Other Relevant Details.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: Terms of payment?

A: We accept payment as the following.
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.

4. Q: Can you do OEM?

A: Yes we can.

5. Q: What about delivery time?

A: 1) Samples: within one week.

2) Goods: 15-20days usually.

6. Q: Can i get your e-catalog?

A: You can give me a inquiry, i will send it to your email.

7. We have been 10 years experience in this field. We are the prefessional supplier that you can trust.

Gray blue ST Type Fiber Optic Coupler Duplex Adapter For TelecommunicationGray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication

Gray blue ST Type Fiber Optic Coupler Duplex Adapter For Telecommunication
Welcome to check our QY identity By TUV !
