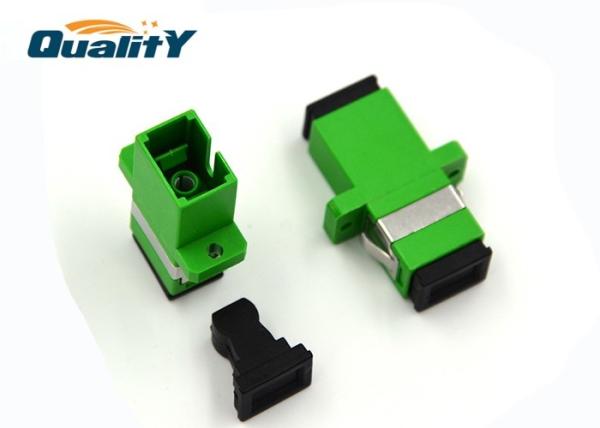

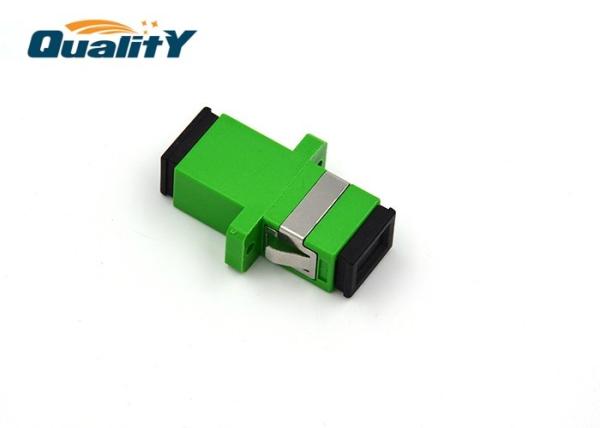

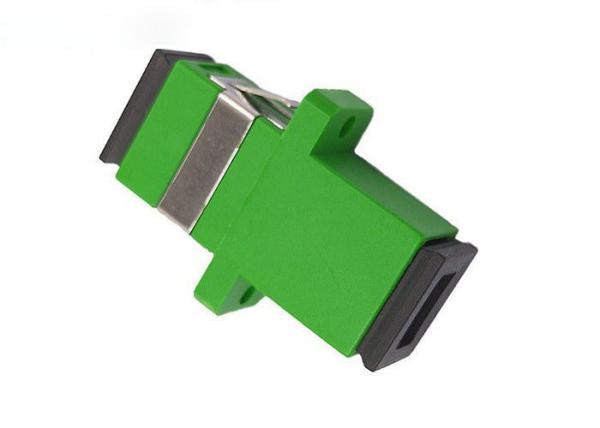

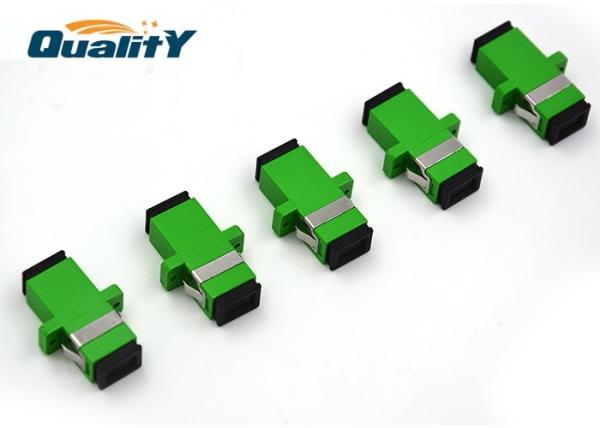

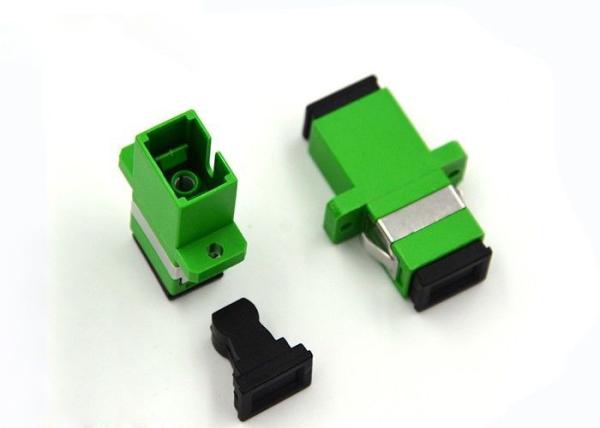

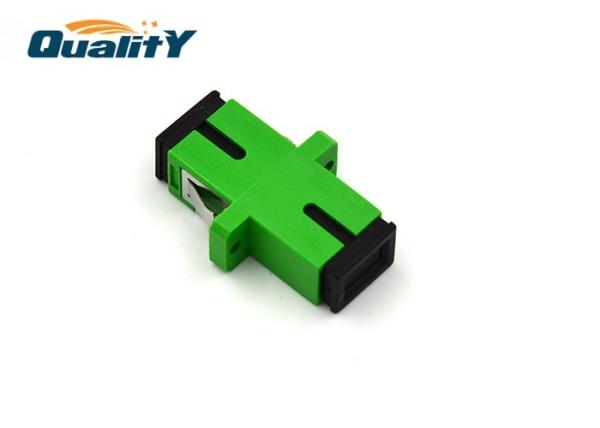

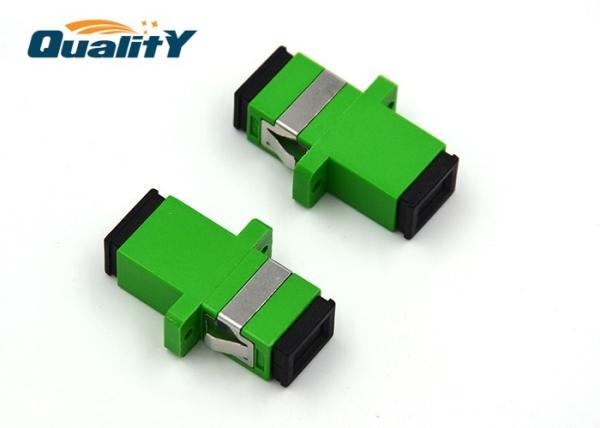

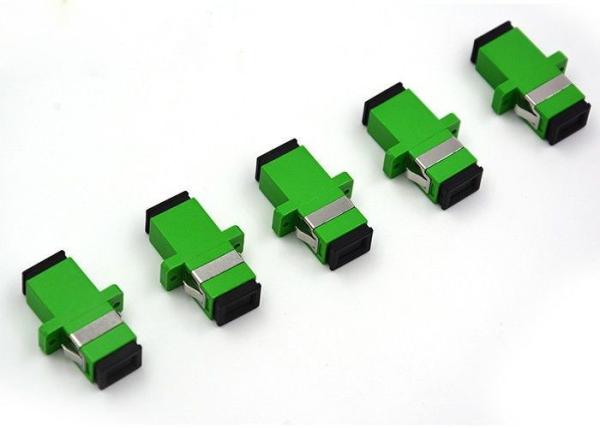

Direct Manufacturer SC Adapter Blank Fiber Optic Adaptor with Flange for Thorlabs Fiber

Specifications

Brand Name :

QualitY or QY

Model Number :

SC APC Fiber optics adapter

Certification :

ISO90012015

Place of Origin :

China Dongguan

MOQ :

100pcs for minium order

Price :

Negotiation

Payment Terms :

Western Union, T/T, L/C

Supply Ability :

250000pcs per week sc apc adapter

Packaging Details :

PE bag or customized package & cartons

Delivery Time :

7 working days

Insertion loss: :

< 0.2dB

Color :

Green

Sleeve Material :

Zirconia sleeve

Channels number: :

Simplex

Material :

plastic

Packing :

50pcs/tray

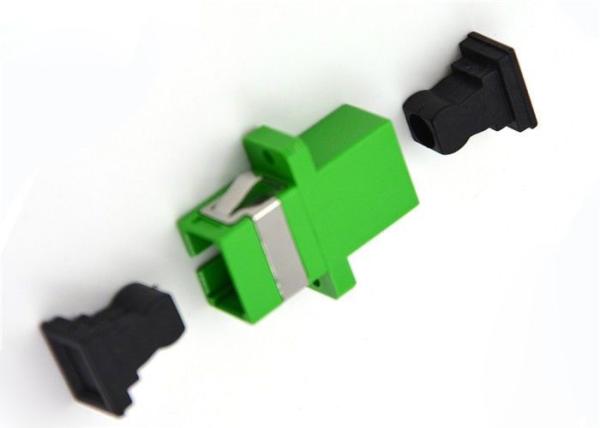

Dust cap :

two black

Factory :

Yes

Description

Connector Type SC Adpter Single Mode Simplex UPC/APC Fiber Optics Adaptor

Description

Fiber optic adapter is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines, which has the merits of low insertion loss, good interchangeability and reproducibility. The following figure shows SC/UPC adapter used together with fiber splitter distribution box in part of FTTH solutions.

Direct Manufacturer SC Adapter Blank Fiber Optic Adaptor with Flange for Thorlabs Fiber

Applications

Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets

Key Features

1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Use in Single-mode or Multimode applications
4 .Choice of housing material and sleeve material
5. ISO9001:2015,ROHS compliance

Product Specification

Parameter	Unit	LC, SC, FC, ST
		SM			MM
		PC	UPC	APC	PC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85

Sleeve Material: Ceramic or beryllium bronze;

Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility;

Working Wavelength: 1200~1600nm;

Working Condition: -40°C to +75°C;

Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB;

Repeatability: No more than 0.2dB ;

The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA.

Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green

Direct Manufacturer SC Adapter Blank Fiber Optic Adaptor with Flange for Thorlabs Fiber
