Specifications
Brand Name :
QualitY or QY
Certification :
IEC or ISO9001
Place of Origin :
Dongguan,China
MOQ :
100 pcs SC APC Fast Fiber Optic Connector
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
10000 Piece per day SC APC Fast Fiber Optic Connector
Delivery Time :
7 working days
Packaging Details :
Package details: 45 X 25 X 24 CM:(1000PCS)
MOQ :
100 PCS
Fiber type :
SM
Lead time :
3-7working days
Insertion loss :
≤0.3dB
Return loss :
≥ 60dB
Application :
FTTH FTTB FTTX Network,CATV
Color :
Green
Repeatability :
≤0.1dB
Description

Professional Factory Price Manufacturer Custom Industrial Telecommunication FTTH SC APC UPC Optical Fiber

Professional Factory Price Manufacturer Custom Industrial Telecommunication FTTH SC APC UPC Optical Fiber

Overview

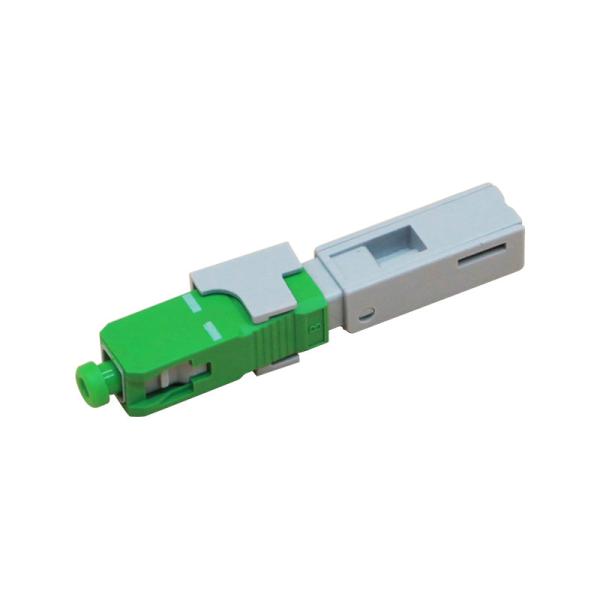

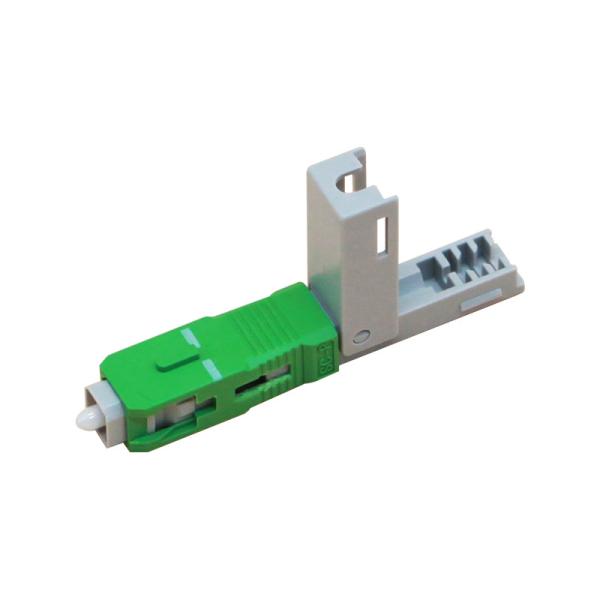

QY's Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series is already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Features

  • ROHS, CE compliant
  • Field-installable, cost-effective, user-friendly
  • Quick and easy fiber termination in the field
  • No need for a fusion splicer, power source, and tool for pressure
  • Effective data transmission
  • Small size

Application

  • FTTA
  • For the connection between the distribution box and RRH
  • Deployment in Remote Radio Head cell tower applications
  • Backbone installation
  • Datacenter cabling
  • Telecommunication network
  • Industrial & Military

Specification

Item Name

Unit

SC/APC Field Installable Connector
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- APC
Insertion Loss dB ≤0.5 ≤0.3
Return Loss dB ≥50 ≥60
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Reusability times ≥5
Tensile Strength N ≥50
