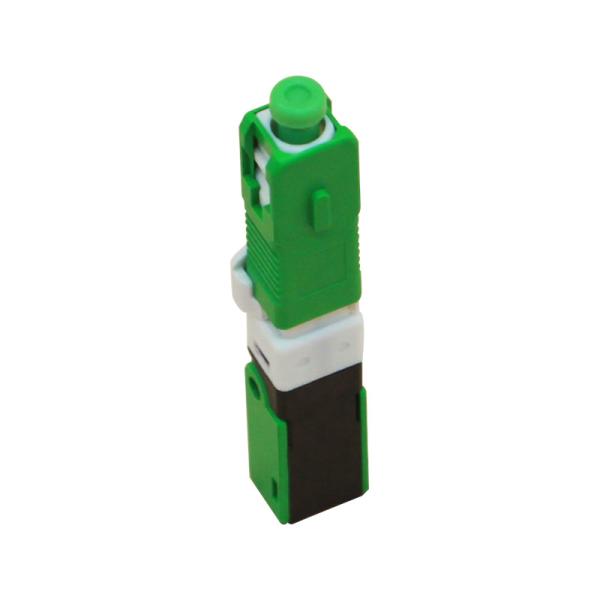

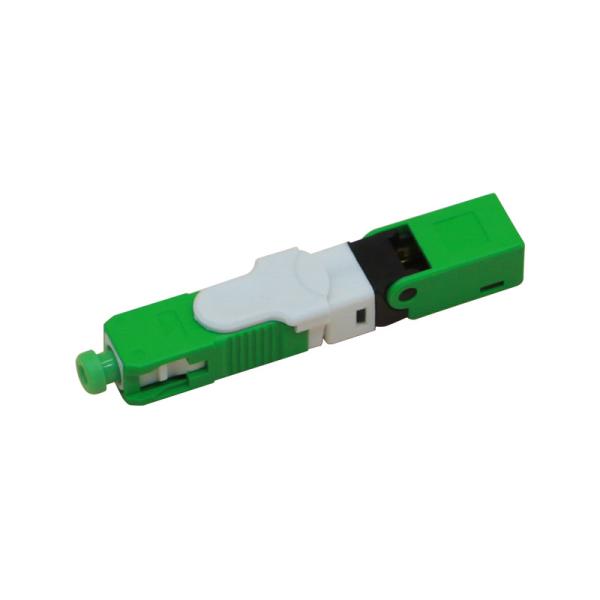

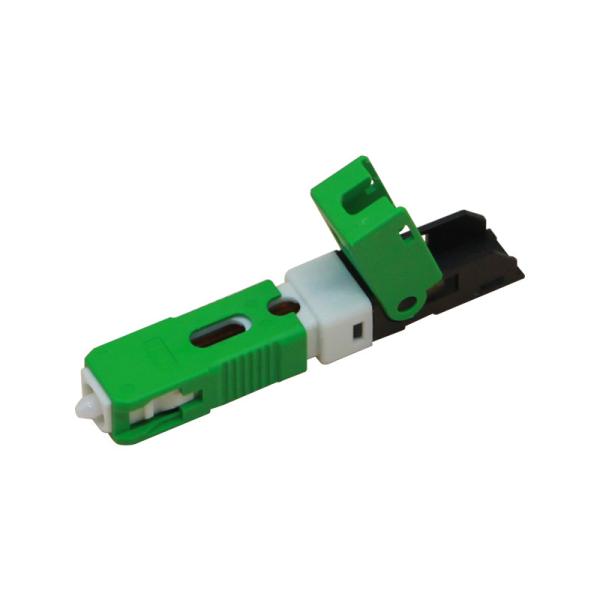

Field Assembly Connector SC/APC Connector Fiber Optic Fast Connector
Field Assembly Connector SC/APC Connector Fiber Optic Fast Connector
Field Assembly Connector SC/APC Connector Fiber Optic Fast Connector
Field Assembly Connector SC/APC Connector Fiber Optic Fast Connector
Field Assembly Connector SC/APC Connector Fiber Optic Fast Connector
Field Assembly Connector SC/APC Connector Fiber Optic Fast Connector
Specifications
Brand Name :
QualitY or QY
Certification :
IEC or ISO9001
Place of Origin :
Dongguan, China
MOQ :
100 pcs SC UPC Fast Fiber Optic Connector
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20000 Piece per Week SC UPC Fast Fiber Optic Connector
Delivery Time :
7 working days
Packaging Details :
Package details: 45 X 25 X 24CM:(1000PCS)
Selling Units :
Single mode
Color :
Green
OEM :
Support
Options :
OFNR flame retardant
Application :
FTTH FTTB FTTX Network,CATV
Insertion loss :
≤0.3dB
Return loss :
≥ 60dB
Fiber type :
SM
Repeatability :
≤0.1dB
Description

Field Assembly Connector SC/APC Connector Fiber Optic Fast Connector

Overview

A series of SC field-installable connectors (FIC). These fibre optic connectors are factory terminated and polished which allow for fast and reliable connections. The superior quality fibre connectors require no epoxy polishing or crimping making them ideal for applications where time is of the essence. The single-mode simplex connectors in this range have 9/125 fibre size and come in both APC and PC polish options. The connectors also feature a window that enables testing with a visual fault locator.

Features

  • ROHS, CE compliant
  • Reduces assembly time and simplifies training
  • Easy-to-install adapters and connectors
  • Compatible with standard SC adapters
  • Helps minimize transmission problems
  • Optimizes optical contact

Application

  • Teletechnocal Networks
  • CATV Networks
  • LAN & WAN
  • Measuring Equipment
  • Broadband
  • FTTH

Specification

Item Name

Unit

SC/APC Field Installable Connector
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- APC
Insertion Loss dB ≤0.5 ≤0.3
Return Loss dB ≥50 ≥60
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Reusability times ≥5
Tensile Strength N ≥50
