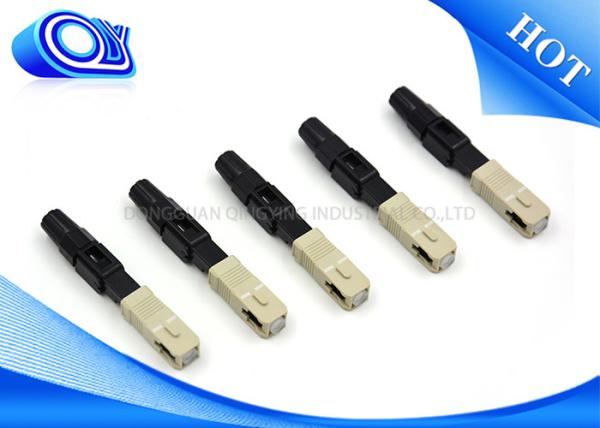

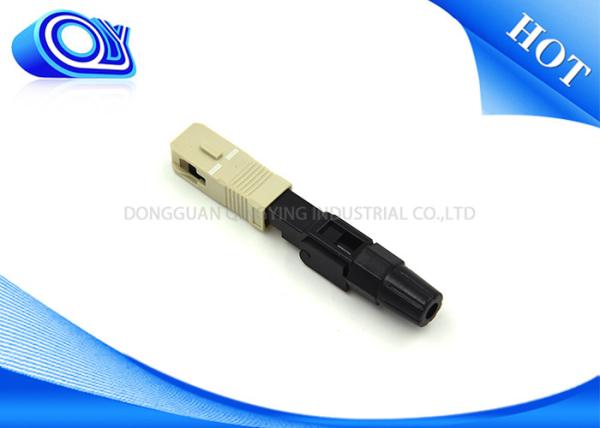

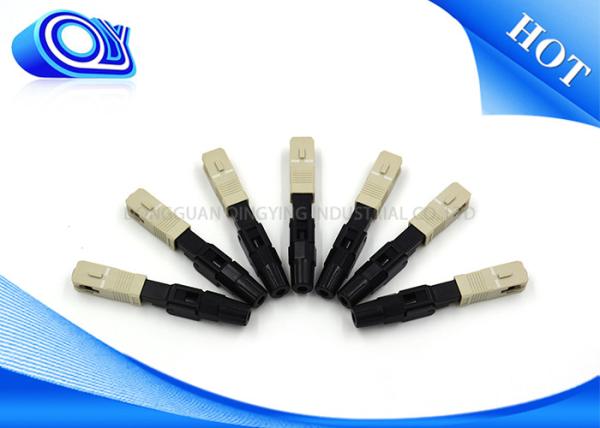

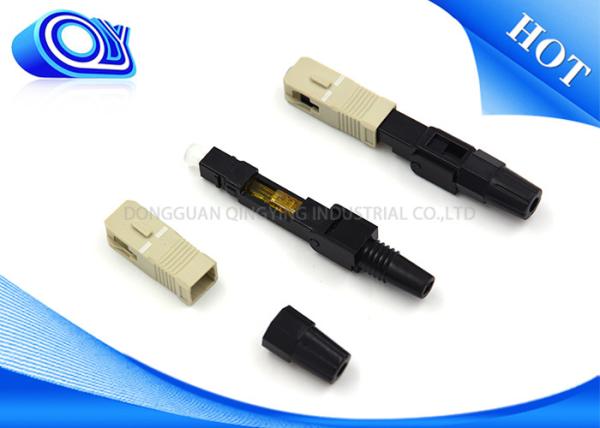

OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types
Specifications
Brand Name :
Qingying or QY
Model Number :
QSC60K1-MM
Certification :
IEC or ISO9001 2015
Place of Origin :
China Dongguan
MOQ :
100 pcs SC APC Fast Fiber Optic Connector
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20000 Piece per Week SC UPC Fast Fiber Optic Connector
Delivery Time :
7 working days
Packaging Details :
Package details: 46 X 33 X 23 CM:(1000PCS)
Product Name :
SC optical fiber fast connector
Selling Units :
Multi mode
Package Style :
10pcs/small bag carton packaging
Color : :
Gray
Package details: :
46 X 33 X 23 CM:(1000PCS)
OEM :
Support
Product Size :
60x9x7mm
IL :
0.3dB
Description

OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types

OEM Gray 9*7*60 Mm Fiber Optic Fast Connector / SC MM Fiber Optic Connector Types

1.Description

Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.

2.Features

1.Factory-installed fiber stub

2.Low insertion loss

3.Quick and easy fiber termination in the field .

4.Eliminates cable excess length and pigtail splicestorage

5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable

3.Specification

Fast Connector Specification
Mode SM MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

 ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

4.Application

1).CATV

2).Active device termination

3).Telecommunication networks

4).Metro

5).Local Area Networks (LANs)

6).Data processing networks

7).Test equipment

8).Premise installation

9).Wide Area Networks(WANs)
