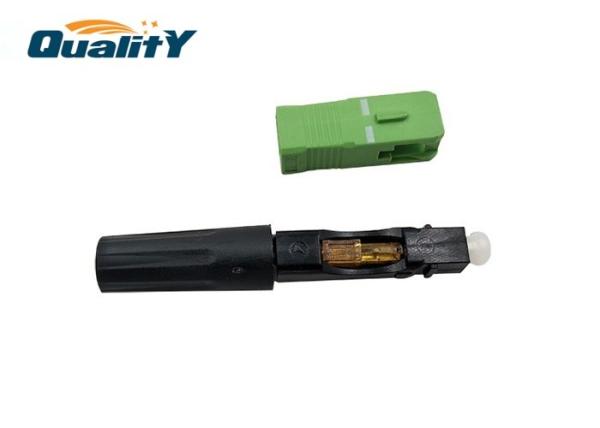

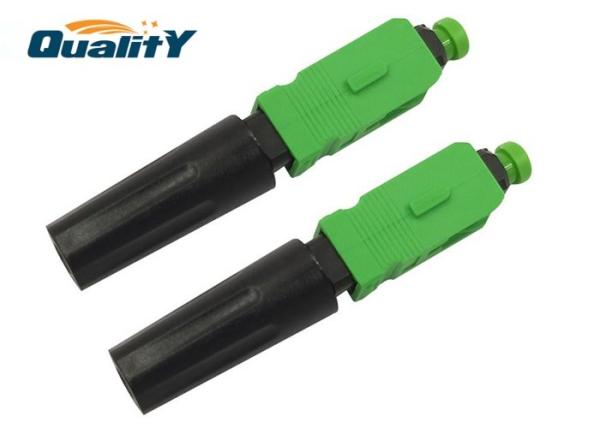

Direct Plug Type SC APC Fiber Connector Single Mode For Wide Area Networks / Sc Apc Fast Connector
Direct Plug Type SC APC Fiber Connector Single Mode For Wide Area Networks / Sc Apc Fast Connector
Direct Plug Type SC APC Fiber Connector Single Mode For Wide Area Networks / Sc Apc Fast Connector
Direct Plug Type SC APC Fiber Connector Single Mode For Wide Area Networks / Sc Apc Fast Connector
Direct Plug Type SC APC Fiber Connector Single Mode For Wide Area Networks / Sc Apc Fast Connector
Direct Plug Type SC APC Fiber Connector Single Mode For Wide Area Networks / Sc Apc Fast Connector
Specifications
Brand Name :
QualitY or QY
Model Number :
QSC55Z-APC
Certification :
ISO90012015, SGS
Place of Origin :
Dongguan China
MOQ :
100pcs for minium order
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Delivery Time :
7 working days
Packaging Details :
PE bag or customized package & cartons
Name :
SC APC field mountable fast connector
Connector :
Fast Connector SC APC
Insertion loss :
<0.5dB
Color :
Green
Fiber type :
SM G652D G657A
Fiber cable type :
2.0mm 3.0mm cable
Material :
Plastic
Lead time :
3-7working days
Description

Direct Plug Type SC APC Fiber Connector Single Mode For Wide Area Networks / Sc Apc Fast Connector

Description

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field, and options are available
for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment
and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens,
with features of high installation quality, high success rate and high reliability.

Features:


Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional
Simplex / Duplex

Specification

ITEM Technical Parameters
Applicable for

Drop cable / Indoor cable

0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter

SM(9/125), MM(50/125, 62.5/125)

125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 45db(UPC), > 55db(APC)
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB

Applications:

CATV

Telecom network

Optical test equipment

Local area networks

Wide area networks

Data processing Networks

Direct Plug Type SC APC Fiber Connector Single Mode For Wide Area Networks / Sc Apc Fast Connector
