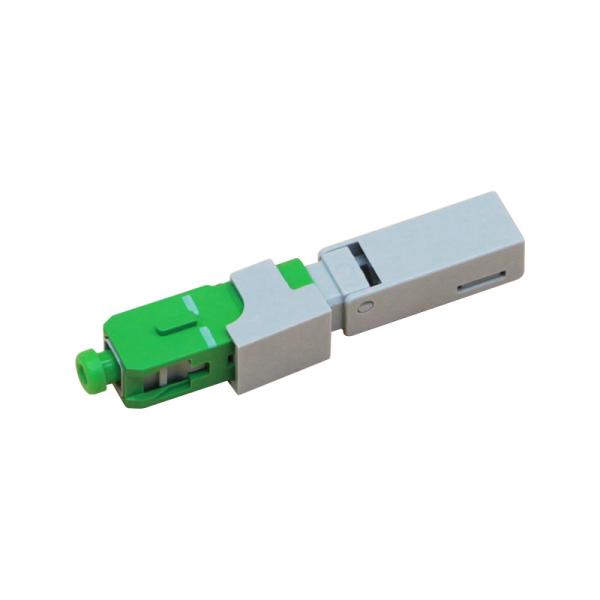

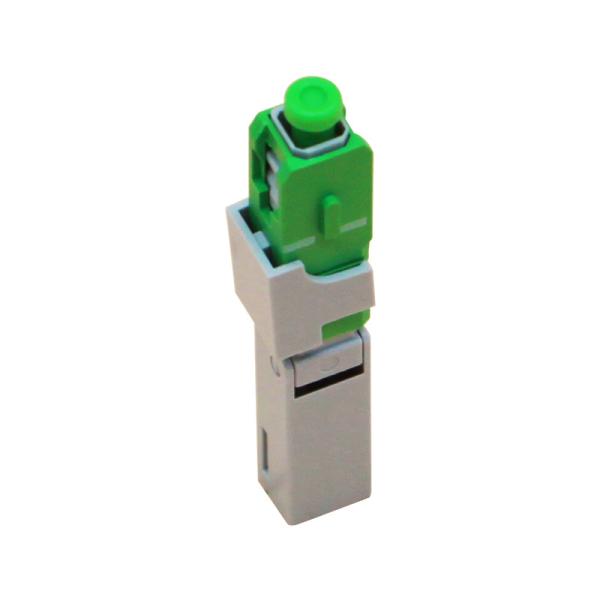

SC/APC 0.3dB Single-Mode Fiber Optic Fast Connector FTTH Fiber Optic Quick Connectors
SC/APC 0.3dB Single-Mode Fiber Optic Fast Connector FTTH Fiber Optic Quick Connectors
SC/APC 0.3dB Single-Mode Fiber Optic Fast Connector FTTH Fiber Optic Quick Connectors
SC/APC 0.3dB Single-Mode Fiber Optic Fast Connector FTTH Fiber Optic Quick Connectors
SC/APC 0.3dB Single-Mode Fiber Optic Fast Connector FTTH Fiber Optic Quick Connectors
SC/APC 0.3dB Single-Mode Fiber Optic Fast Connector FTTH Fiber Optic Quick Connectors
Specifications
Brand Name :
QualitY or QY
Model Number :
QSC50ZJ2-APC
Certification :
ISO90012015, SGS
Place of Origin :
Dongguan China
MOQ :
100pcs for minium order
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Delivery Time :
7 working days
Packaging Details :
PE bag or customized package & cartons
Fiber type :
SM
Color :
Green
Fiber cable type :
2.0mm 3.0mm cable
Material :
Plastic
Lead time :
3-7working days
Insertion loss :
≤0.3dB
Return loss :
≥ 60dB
Operating temperature :
-25°C ~ +70°C
Description

FTTH ESC250D SC/APC 0.3dB Single-Mode Fiber Optic Fast Connector FTTH Fiber Optic Quick Connectors

SC/APC 0.3dB Single-Mode Fiber Optic Fast Connector FTTH Fiber Optic Quick Connectors

Overview

A series of SC field-installable connectors (FIC). These fibre optic connectors are factory terminated and polished which allow for fast and reliable connections. The superior quality fibre connectors require no epoxy polishing or crimping making them ideal for applications where time is of the essence. The single-mode simplex connectors in this range have 9/125 fibre size and come in both APC and PC polish options. The connectors also feature a window that enables testing with a visual fault locator.

Features

  • ROHS, CE compliant

  • Reduces assembly time and simplifies training

  • Easy-to-install adapters and connectors

  • Compatible with standard SC adapters

  • Helps minimize transmission problems

  • Optimizes optical contact

Application

  • Teletechnocal Networks

  • CATV Networks

  • LAN & WAN

  • Measuring Equipment

  • Broadband

  • FTTH

Specification

Item Name

Unit

SC/APC Field Installable Connector

Grade S (Standard)

Grade P (Premium)

Fiber Type

um

9/125

9/125 (Corning)

Polishing

---

APC

Insertion Loss

dB

≤0.5

≤0.3

Return Loss

dB

≥50

≥60

Repeatability

dB

≤0.1

Interchangeability

dB

≤0.2

Operating Temp.

℃

-25 ~ +70

Durability

times

≥1,000

Reusability

times

≥5

Tensile Strength

N

≥50
