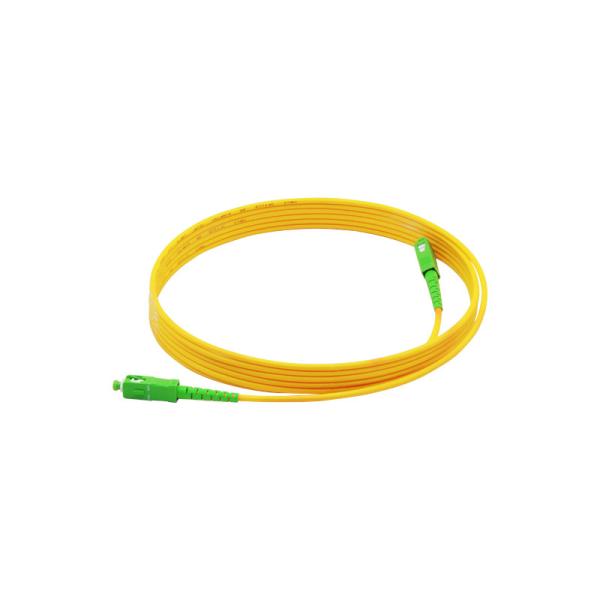

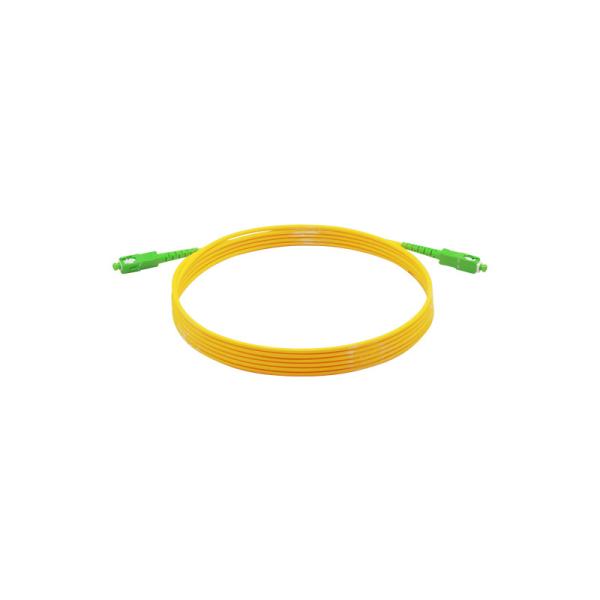

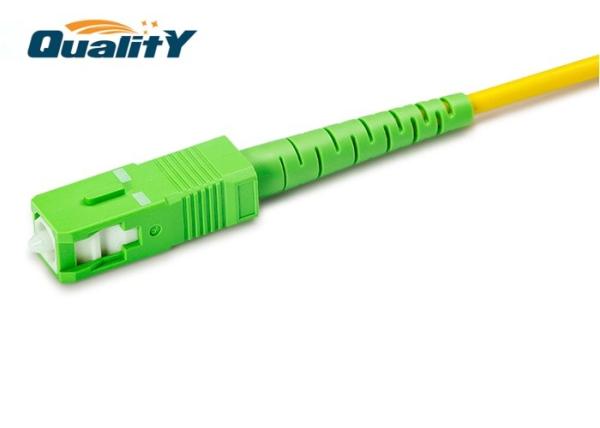

China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized
China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized
China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized
China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized
China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized
China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized
China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized
China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized
Specifications
Brand Name :
QualitY or QY
Model Number :
QPCSC-SX
Certification :
ISO90012015
Place of Origin :
Dongguan China
MOQ :
20 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2000 Piece per day SC APC patch cord
Delivery Time :
7 working days
Packaging Details :
PE bag or customized package & cartons
Name :
Fiber optic drop cable patch cord
Type :
SC APC connector
Insertion loss :
≤0.3dB
Return loss :
>50dB
Fiber count :
Simplex
Material :
PVC/LSZH
Color :
Yellow
Application :
FTTH FTTB FTTX Network
Description

China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized

China Manufacturer SC APC Fiber Optic Patch Cord High Quality For FTTH Network 3.0m Customized

Overview

Fiber optic patch cable is also known as fiber patch cord, optical cable, or fiber optic jumper. As an important component commonly used in fiber-optic networks, high-quality patch cables are essential for any high-performance fiber-optic network. QY offers many choices of different lengths, jacket material, and cable diameter. The fiber optic patch cables are commonly used in carrier equipment, telecommunications, patch field, and CATV applications. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which is ideal for fiber cabling infrastructure.

Features

  • ROHS, CE compliant
  • 100% end face inspected
  • High-quality, machine-polished connectors
  • Stable capability and high reliability
  • Low insertion loss
  • 100% inspected for optical characteristics before shipment

Application

  • Building interconnections (campus LAN)
  • Fiber patch panel within communication closets
  • Links between electronic equipment and fiber
  • Backbone installation
  • Datacenter cabling
  • Telecommunication network
  • Industrial & Military

Specification

Item Name

Unit

 SC/APC - SC/APC Fiber Optic Patch Cord
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- APC
Insertion Loss dB ≤0.3 ≤0.2
Return Loss dB ≥60 ≥65
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Tensile Strength N ≥90(Φ3.0), ≥70(Φ2.0)
Diameter mm 0.9, 2.0, 3.0, or customized
Fiber Count --- Simplex, Duplex
Material --- PVC, LSZH
