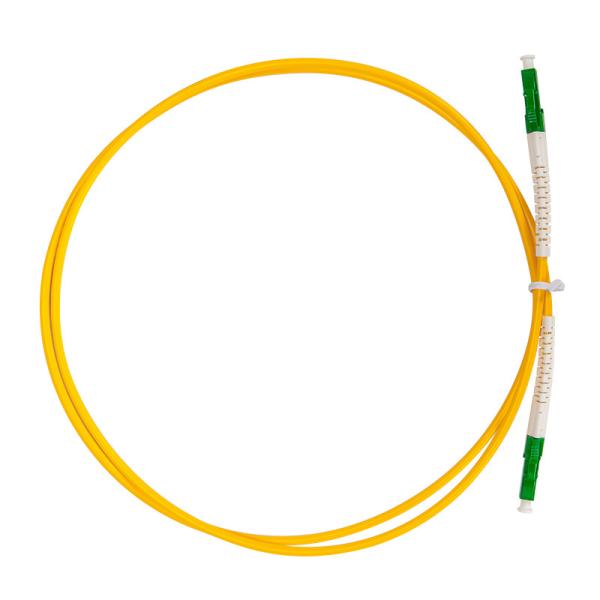

Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M
Specifications
Brand Name :
QY
Model Number :
QPCLC to LC
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
100pcs for minium order
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2000 Piece per day LC patch cord
Delivery Time :
3-7 Working Days
Packaging Details :
PE bag or customized package & cartons
Connector :
LC/APC To LC/APC
Material :
PVC,LSZH
Color :
Yellow
Cable Length :
1m 2m 3m or Customized
Jacket OD :
0.9mm/2.0mm/3.0mm
Fiber count :
Simplex
Application :
FTTH/Test equipments/TV/LAN/Telecommunication equipments
Return Loss :
≥55dB,≥50dB
Insertion Loss :
≤0.3dB,≤0.1dB
Fiber type :
G657A1/A2, G652D,
Description

1. Flexible angle boot LC/APC - LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M

Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M

Overview

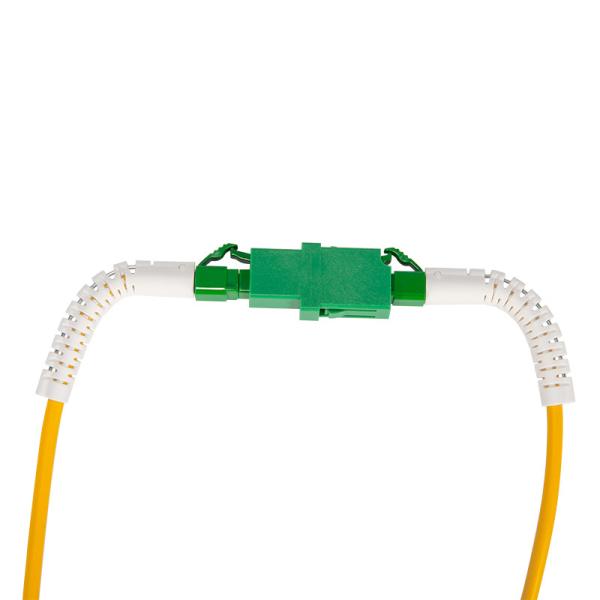

Our flex angle boots for LC&SC fiber optic connectors are available on any single-mode or multimode patch cord. They are designed so the installer can pre-bend the boot into any direction or angle. This position is maintained for optimal network performance but, can be reshaped at any time or straightened for connector disconnect. This enables perfect installation of the connector in unique applications such as, tight constraint areas or high density environments. These fiber optic patch cords with LC&SC flex boots are ideal for cable management situations where additional fiber bend protection is desired

Flexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M

Features

  • • The patch cord premium standard LC & LC Flex angle boot jumpers. the Flex angle boot is designed to bend and maintain any angle or direction from straight to 90 degree

    • The boot is molded over a single stainless-steel wire and can be easily positioned by hand

    • The internal wire holds the boot at the desired angle or direction

Application

  • Fibre Optic Cable Distribution network
  • Fibre To The Home (FTTH) network
  • Optical access network
  • Field Repair/Replacement
  • Maintenance or emergency restoration of fiber networksFlexible angle boot LC/APC to LC/APC Fibre Patch Cords Simplex SM G.652.D duplex(LSZH),3M

Specification

Item Name

Unit

 LC/UPC - LC/UPC Fiber Optic Patch Cord
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- APC
Insertion Loss dB ≤0.3 ≤0.1
Return Loss dB ≥50 ≥55
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Tensile Strength N ≥90(Φ3.0), ≥70(Φ2.0)
Diameter mm 0.9, 2.0, 3.0, or customized
Fiber Count --- Simplex or Duplex
Material --- PVC, LSZH
