SC APC Fast Connectors SC APC Assembly Quick Fiber Optic Drop Cable Connector
SC APC Fast Connectors SC APC Assembly Quick Fiber Optic Drop Cable Connector
SC APC Fast Connectors SC APC Assembly Quick Fiber Optic Drop Cable Connector
SC APC Fast Connectors SC APC Assembly Quick Fiber Optic Drop Cable Connector
SC APC Fast Connectors SC APC Assembly Quick Fiber Optic Drop Cable Connector
SC APC Fast Connectors SC APC Assembly Quick Fiber Optic Drop Cable Connector
Specifications
Brand Name :
QualitY or QY
Model Number :
Fiber Optics SC Fast Connector
Certification :
IEC or ISO9001 2015
Place of Origin :
China Dongguan
MOQ :
100 pcs SC APC Fast Fiber Optic Connector
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20000 Piece per Week SC UPC Fast Fiber Optic Connector
Delivery Time :
7 working days
Packaging Details :
Package details: 45 X 25 X 24 CM:(1000PCS)
Product Name :
0.9mm assembly fiber connector
IL :
0.2dB(Max0.5dB)
Application :
0.9mm 2.0x3.0mm
Connector type :
SC/APC
Connector :
Fast Connector SC APC
Fiber type :
SM or MM
Lead time :
3-7working days
Color :
Green
Description

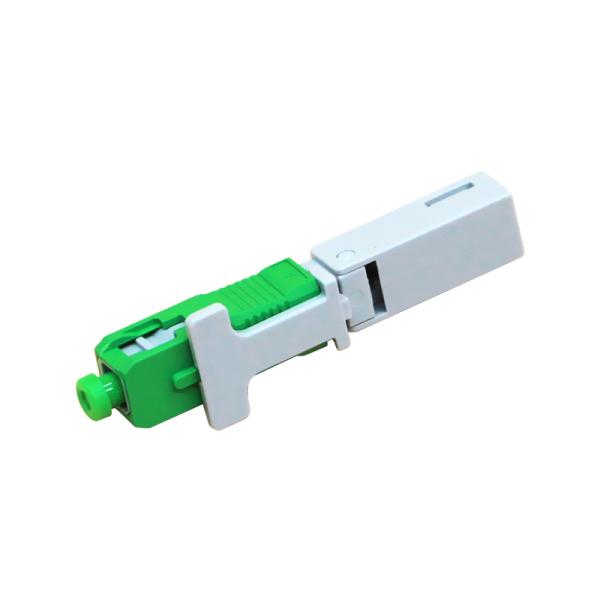

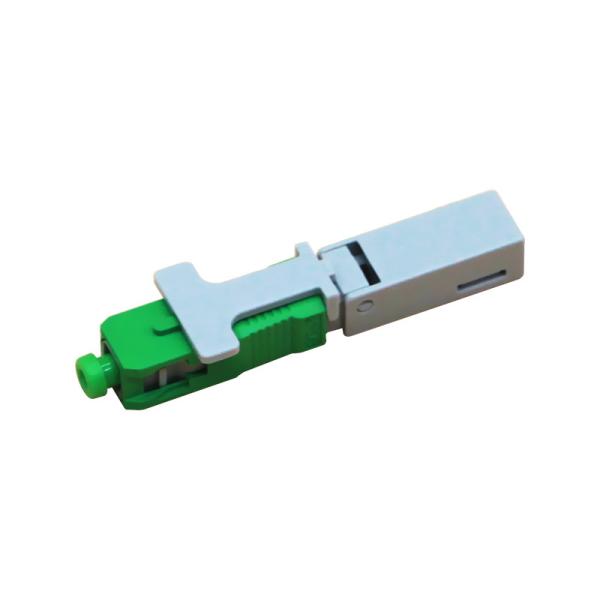

SC APC Fast Connectors SC APC Assembly Quick Fiber Optic Drop Cable Connector

1.Description

Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly.

2.Features

1.Factory-installed fiber stub

2.Low insertion loss

3.Quick and easy fiber termination in the field .

4.Eliminates cable excess length and pigtail splicestorage

5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable

3.Specification

Fast Connector Specification

Mode

SM

MM

Polish

UPC

APC

Insertion Loss

Typical ≤0.3dB
Maximum ≤0.5dB

Return Loss

≥50dB

≥55dB

≥35dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB

Durability

≤0.2dB (1000 times mating)

Tensile Strengh

> 10kg

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB (+25+65 93 R.H.100 hours)

4. Application

1.Used to open the FTTH fiber terminal end.

2.In the box, cabinet, such as wiring into the box.

3.Off the back of the accidents such as fiber, maintenance.

4.LAN, wan, data and video transmission.

5.The construction of the fiber end user access and maintenance.

6.Optical fiber access of mobile base station.
