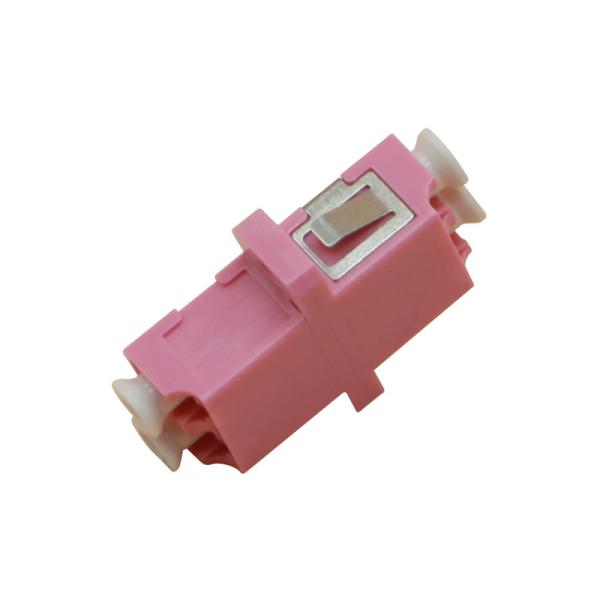

Ceramic Sleeve Fiber Optic Adapter Plactic Single Mode Duplex SC APC Coupler For FTTH
Ceramic Sleeve Fiber Optic Adapter Plactic Single Mode Duplex SC APC Coupler For FTTH
Ceramic Sleeve Fiber Optic Adapter Plactic Single Mode Duplex SC APC Coupler For FTTH
Ceramic Sleeve Fiber Optic Adapter Plactic Single Mode Duplex SC APC Coupler For FTTH
Ceramic Sleeve Fiber Optic Adapter Plactic Single Mode Duplex SC APC Coupler For FTTH
Ceramic Sleeve Fiber Optic Adapter Plactic Single Mode Duplex SC APC Coupler For FTTH
Specifications
Brand Name :
QualitY or QY
Model Number :
QADSCW-APC
Certification :
ISO90012015
Place of Origin :
China Dongguan
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
30000PCS per day
Delivery Time :
7 working days
Packaging Details :
Package details: 46 X 33 X 23 CM:(1000PCS)
Connector :
SC APC
Mode :
Single mode
Type :
duplex
Sleeve :
Ceramic
Insertion :
0.2dB
Manufacturer :
Yes
Material :
Plastic
MOQ :
100PCS
Description

Single mode duplex sc apc coupler optics fiber adapter for FTTH

Ceramic Sleeve Fiber Optic Adapter Plactic Single Mode Duplex SC APC Coupler For FTTH

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.Optical fiber sc male to lc female adapter.

Feature

High temperature stability
Low insertion loss
High precision alignment
Good repeatability

APPLICATIONS

Telecommunication networks
CATV
Test equipments
Local Area Network (LAN)
Any many more.

Model Number: SC PC SM DX Fiber Optic Adapter

Type: FC/SC/ST/LC

Mode: SM&MM

Working Condition: -40°C to +75°C

Working Wavelength: 1200~1600nm

Insertion Loss (IL): 0.2dB

Sleeve material: zirconia or phosphor bronze sleeve

Storage Temperature: - 55 to + 85

Operating Temperature: - 40 to + 75

Sleeve Material: Ceramic or beryllium bronze;
Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility;
Working Wavelength: 1200~1600nm;
Working Condition: -40°C to +75°C;
Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB;
Repeatability: No more than 0.2dB ;
The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA.
Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green

Parameter Unit LC, SC, FC, ST
SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Time >1000
Operating Temperature °C -40~75
Storage Temperature °C -45~85

Product tags

optical attenuator lc connector

,

lc to sc fiber adapter

,

sc to lc fiber adapter
