Specifications
Brand Name :
QY
Model Number :
QPCLC to LC
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
100pcs for minium order
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2000 Piece per day LC patch cord
Delivery Time :
3-7 Working Days
Packaging Details :
PE bag or customized package & cartons
Connector :
LC/APC To LC/UPC
Material :
PVC,LSZH
Color :
Yellow
Cable Length :
1m 2m 3m or Customized
Jacket OD :
0.9mm/2.0mm/3.0mm
Fiber count :
Simplex
Application :
FTTH/Test equipments/TV/LAN/Telecommunication equipments
Return Loss :
≥55dB,≥50dB
Insertion Loss :
≤0.3dB,≤0.1dB
Fiber type :
G657A1/A2, G652D,
Description

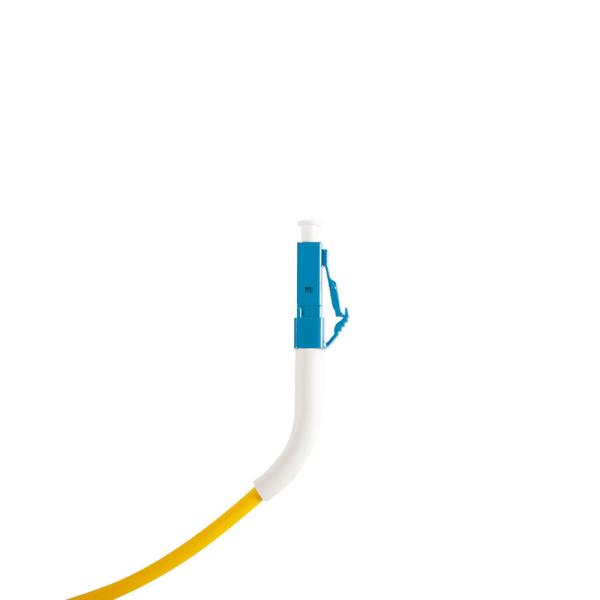

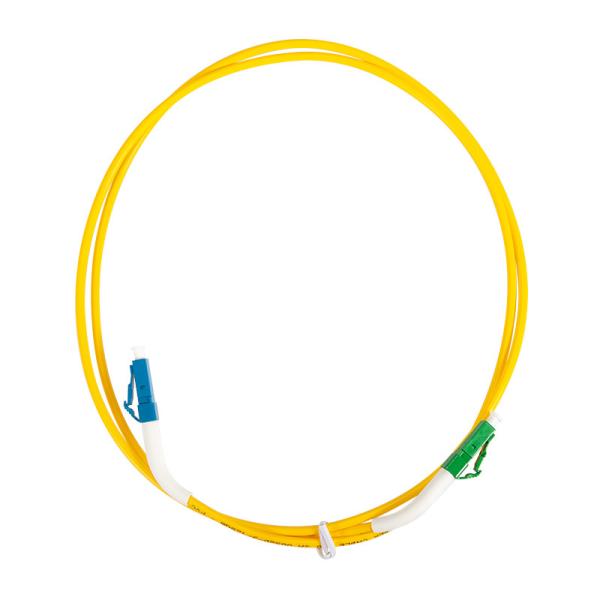

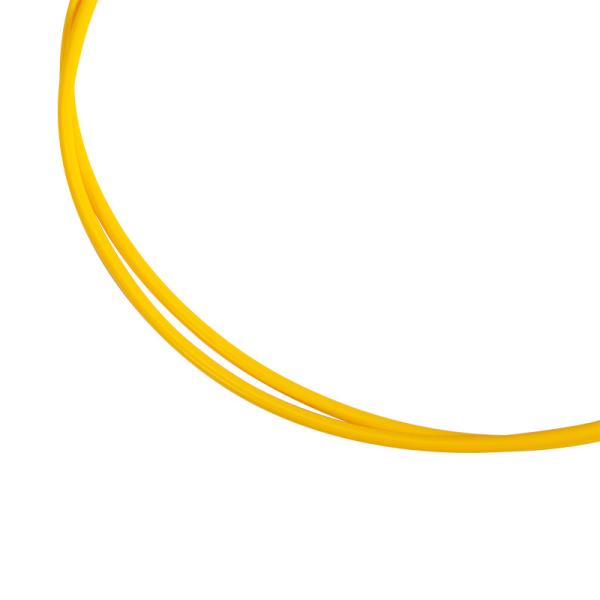

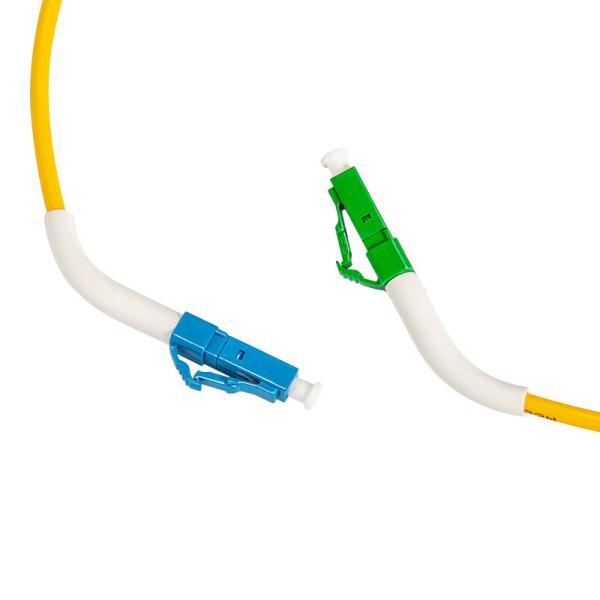

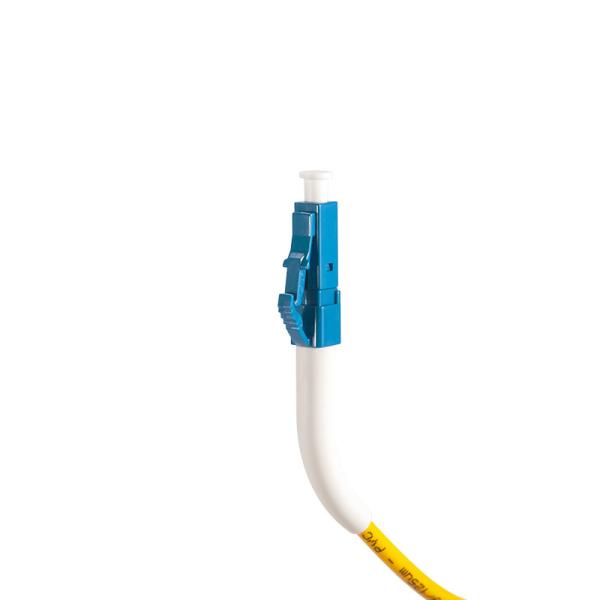

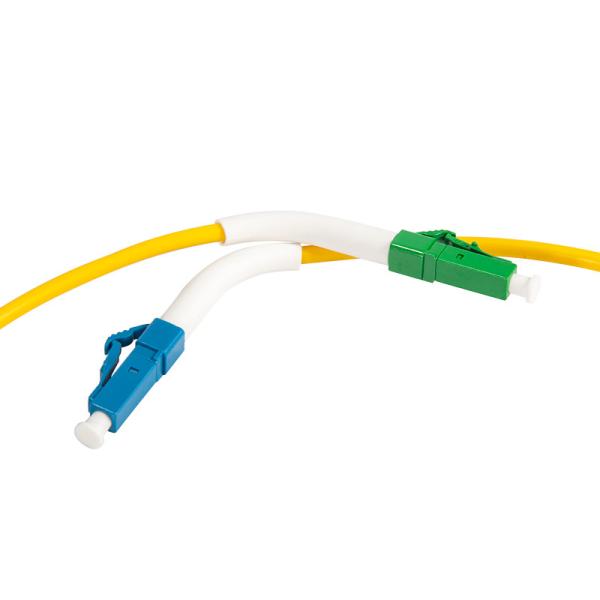

(Angle boot 45°) LC/APC to LC/UPC Fibre Patch Cords OD3.0mm Simplex SM G.657A1 simplex(LSZH),3M

Overview

Angle boots for single-mode and multimode patch cords with LC fiber optic connectors are ideal for high density networks or when additional cable management protection is desired. At any time, installers can easily bend or reshape the SC flex boots into any desirable direction or angle. Connector position is maintained for optimal network performance and can be straighten prior to connector disconnect. See what fiber optic patch cords are compatible with our LC flex boots.

(Angle Boot 45°) LC/APC To LC/UPC Fibre Patch Cords OD3.0mm Simplex SM G.657A1 Simplex(LSZH) 3M

Features

1. 45 degree and 90 degree are available

2. Flexible boots for LC, SC, ST, FC and MPO connector

3. Improve cable routing on high density panels

4. No twist or break fiber when polishing

  • (Angle Boot 45°) LC/APC To LC/UPC Fibre Patch Cords OD3.0mm Simplex SM G.657A1 Simplex(LSZH) 3M

Application

  • Fibre Optic Cable Distribution network
  • Fibre To The Home (FTTH) network
  • Optical access network
  • Field Repair/Replacement
  • Maintenance or emergency restoration of fiber networks(Angle Boot 45°) LC/APC To LC/UPC Fibre Patch Cords OD3.0mm Simplex SM G.657A1 Simplex(LSZH) 3M

Specification

Item Name

Unit

 LC/APC - LC/UPC Fiber Optic Patch Cord
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- APC
Insertion Loss dB ≤0.3 ≤0.1
Return Loss dB ≥50 ≥55
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Tensile Strength N ≥90(Φ3.0), ≥70(Φ2.0)
Diameter mm 0.9, 2.0, 3.0, or customized
Fiber Count --- Simplex or Duplex
Material --- PVC, LSZH

(Angle Boot 45°) LC/APC To LC/UPC Fibre Patch Cords OD3.0mm Simplex SM G.657A1 Simplex(LSZH) 3M
