Fire Resistant XLPE Power Cable Medium Voltage For Underground / Construction

MEDIUM VOLTAGE CABLE STANDARD

This medium voltage xlpe cable manufactured according to IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc. standard as customer request.

MEDIUM VOLTAGE CABLE VOLTAGE

3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 26/35KV

Fire Resistant XLPE Power Cable Medium Voltage For Underground / Construction

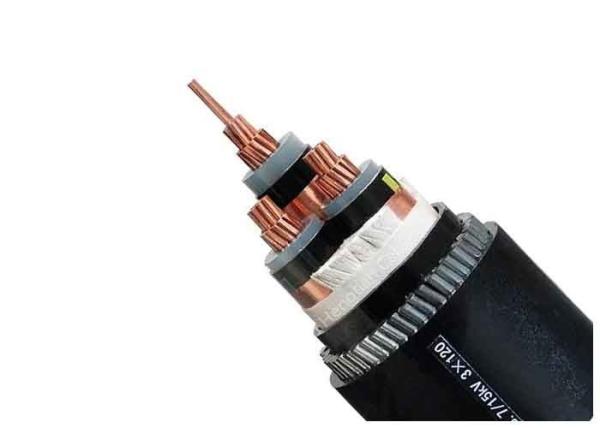

MEDIUM VOLTAGE CABLE CONSTRUCTION

Conductor: copper conductor or aluminum conductor

Conductor screen: Semi-conducting material

Insulation: XLPE (Cross-Linked Polyethylene)

Insulation Screen: Semi-conducting material

Metallic Screen: Ioverall copper tape screen

Filler: PET (Polyethylene Terephthalate) fibres

Separator: Binding tape

Bedding: PVC (Polyvinyl Chloride)

Armour: Steel Tape Armoured (STA) or Aluminium Wire Armoured (AWA) or Steel Wire Armoured (SWA) or unarmoured

Outer sheath: PVC (Polyvinyl Chloride) or Polyethylene (PE)

Colour: Black or as request

MEDIUM VOLTAGE CABLE APPLICATION

The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 35KV. It is generally used for power networks, underground, outdoors and in cable ducting.

MEDIUM VOLTAGE CABLE CHARACTERISTICS

1. Rated voltages: 3.6/6 kV~26/35 kV

2. The ambient temperature for installation: ≥0℃

3. Maximum conductor temperature in normal operation:≤90℃

4. Max operating temperature of con. When cable short-circuited (5s maximum duration): 250℃

5. Minimum Bending Radius

Single core - Fixed: 15 x overall diameter

3 core - Fixed: 12 x overall diameter

(Single core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)

XLPE INSULATED MEDIUM VOLTAGE CABLE TYPE & SIZE

Type

Description

Cores

Cross Section

YJV

Copper Conductor/XLPE Insulation/PVC Outer Sheath Power Cable

1, 3

25mm2-1000mm2

YJY

Copper Conductor/XLPE Insulation/PE Outer Sheath Power Cable

1, 3

25mm2-1000mm2

ZA-YJV ZB-YJV ZC-YJV

Copper Conductor/XLPE Insulation Flame-Retardant Power Cable

1, 3

25mm2-1000mm2

WDZA-YJY WDZB-YJY WDZC-YJY

Copper Conductor/XLPE Insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-Retardant Power Cable

1, 3

25mm2-1000mm2

Fire Resistant XLPE Power Cable Medium Voltage For Underground / Construction

SINGLE CORE 8.7/15KV (Um=17.5KV) DIMENSIONAL DATA

Nominal Area of Conductor

Maximum Conductor Resistance at 20°C

Thickness of XLPE Insulation

Thickness of Copper Tape

Thickness of Outer Sheath

Approx. Overall Diameter

Approx. Cable Weight

Standard Packing Length

Drum size

Approx. Gross Weight

Sqmm

Ohm/Km

mm

mm

mm

mm

Kg/Km

Metre ± 10%

Kg

35

0.524

4.5

0.075

1.8

23.7

835

500

D-12

520

50

0.387

4.5

0.075

1.8

24.8

980

500

D-12

600

70

0.268

4.5

0.075

1.8

26.4

1220

500

D-12

720

95

0.193

4.5

0.075

1.8

28.3

1520

500

D-12

870

120

0.153

4.5

0.075

1.9

30.0

1800

500

D-12

1010

150

0.124

4.5

0.075

1.9

31.4

2110

500

D-14

1210

185

0.0991

4.5

0.075

2.0

33.2

2480

500

D-16

1450

240

0.0754

4.5

0.075

2.0

35.7

3070

500

D-18

1780

300

0.0601

4.5

0.075

2.1

37.9

3700

500

D-18

2090

400

0.0470

4.5

0.075

2.2

41.0

4620

500

D-18

2550

500

0.0366

4.5

0.075

2.3

44.2

5660

500

D-18

3070

630

0.0283

4.5

0.075

2.4

48.2

7040

500

D-19

3840
