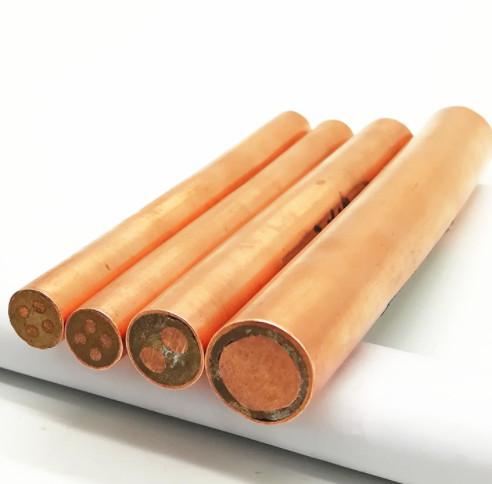

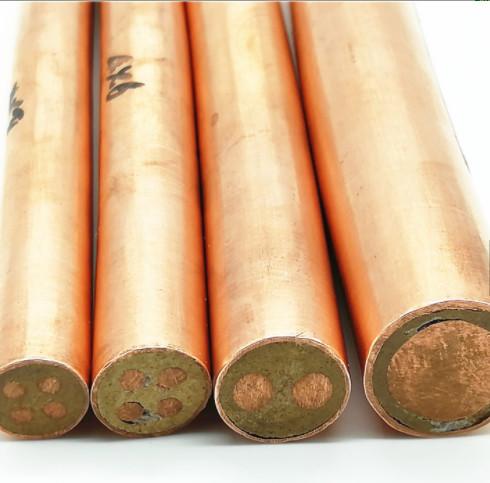

Copper Conductor Mineral Insulated Copper Sheathed Cable 2 4 Or 6 Cores
Copper Conductor Mineral Insulated Copper Sheathed Cable 2 4 Or 6 Cores
Copper Conductor Mineral Insulated Copper Sheathed Cable 2 4 Or 6 Cores
Copper Conductor Mineral Insulated Copper Sheathed Cable 2 4 Or 6 Cores
Specifications
Brand Name :
Huanghe
Model Number :
BTTQ BTTZ
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Price :
1-10USD
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Usage :
School and hospital
Material :
Copper
Service :
20-100 years
Sample :
Supply free sample
Sheath material(1) :
601,INCL600
Standard :
GB/T 18380 IEC 60332-3 BS6387, ANSI, IEC584
Product name :
Mi thermocouple cable, 4 Core MI cable Copper Sheathed Mineral Insulated Cable
Description

Copper Conductor Mineral Insulated Copper Sheathed Cable 2 4 Or 6 Cores


1). Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
2). Core number: 2, 4 or 6 cores
3). Sheath material: SS321(SS304), SS316, SS310, INCL600
4). Insulator: 99.6% high purity MgO
5). Dia(mm): from 0.5mm to 12.7mm


Copper Conductor mineral insulated metal sheathed thermocouple cable

Product Name
Code
Type
Sheath material
Outer dia.(mm)
Temperature
Ni Cr - Ni Si
KK
K
SS304
0.5-1.0
400
SS321
1.5-3.2
600
SS316
4.0-8.0
800
0.5-1.0
500
SS310
1.5-3.2
800
INCL600
4.0-6.4
900
8.0-12.7
1000
Ni Cr Si - Ni Si
NK
N
SS304
0.5-1.0
400
SS321
1.5-3.2
600
SS316
4.0-8.0
800
0.5-1.0
500
SS310
1.5-3.2
800
INCL600
4.0-6.4
900
8.0-12.7
1000
Ni Cr -Konstantan
EK
E
SS304
0.5-1.0
400
SS321
1.5-3.2
500
SS316
4.0-8.0
800
Fe - Konstantan
JK
J
SS304
1.0
300
SS321
1.5-3.2
500
SS316
4.0-8.0
800
Cu - Konstantan
TK
T
SS304
1.0
-200-100
SS321
1.5-3.2
100-200
SS316
4.0-8.0
100-350



Copper Conductor mineral insulated metal sheathed thermocouple cable

Copper Conductor Mineral Insulated Copper Sheathed Cable 2 4 Or 6 Cores
