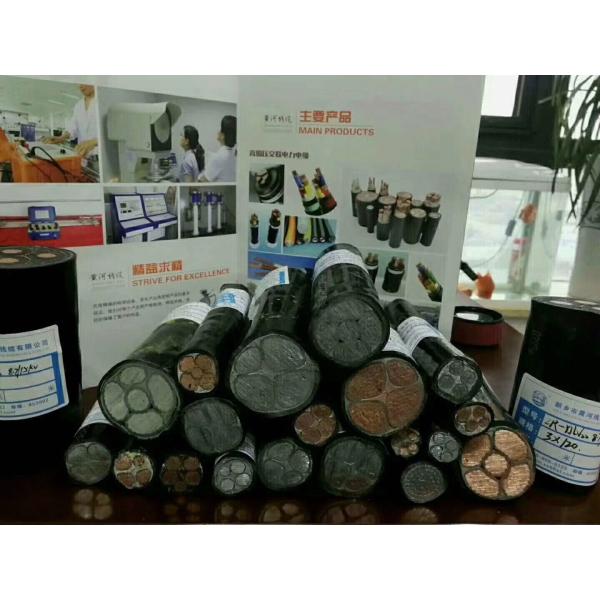

Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2
Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2
Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2
Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2
Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2
Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2
Specifications
Brand Name :
Huanghe
Model Number :
XLPE Insulated Copper Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor Core :
Annealed Copper
Insulation Material :
Cross Linked Polyethylene (XLPE)
Outer Sheath Material :
Polyvinyl Chloride (PVC) or Polyethylene (PE)
Armoured Type :
DSTA/SWA/AWA Armored or Unarmored
Voltage :
600V to 35KV
Cross Section Area :
0.75mm2-1000mm2
Number of Cores :
1 core to 5 cores
Standards :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Colour :
Black or Customized
Application :
Construction, Industrial, Underground, Power Station
Feature :
Abrasion-resistant
Fire Performance of Cable Sheaths :
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements.
Packing :
Drum, Optional
Description

Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2

XLPE Insulated Copper Cable Rated Voltage:

0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 26/35KV

XLPE Insulated Copper Cable Number of cores:

1 core, 2 core, 3 core, 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core

XLPE Insulated Copper Cable Introduction:

This xlpe insulated cable is copper core AC 1kv-35kv power cable, according to GB / T12706-2008 standard production, mainly used for power transmission between equipment, as well as transmission, distribution stations, the use of the State Grid, with complete specifications, the structure of diversified features. Among them, WDZ is a low-smoke halogen-free material with anti-aging, tear-resistant, low smoke, halogen-free and flame retardant properties and can maintain its excellent electrical and mechanical properties in complex environments.

Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2

XLPE Insulated Copper Cable Usage Characteristics:

Usage characteristics
Packaging Steel Wooden Drum
Minimum installation temperature -20 °C
Max. conductor temperature in service 90 °C
Short-circuit max. conductor temperature 250 °C
Bending factor when laying

20 x D single core cable

15 x D multi-core cable

Polyvinyl Chloride XLPE Copper Cable Abrasion Resistant 0.75mm2 - 1000mm2


XLPE Insulated Cable Types:

0.6/1kV XLPE Insulated Electric Cable
XLPE Cable Types Description Cores Nomi Section Area (mm2)
Cu/XLPE/PVC copper core, xlpe insulated, pvc sheathed, electric cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
Al/XLPE/ PVC aluminum core, xlpe insulated, pvc sheathed, electric cable
Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
Al/XLPE/SWA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable

Medium Voltage XLPE Insulated Electric Cable
XLPE Cable Types Description Cores Nomi Section Area (mm2)
Cu/XLPE/PVC copper core, xlpe insulated, pvc sheathed, electric cable

1 core

3 core

25, 35,

50, 70,

95, 120,

150, 185,

240, 300,

400, 500, 630, 800, 1000
Al/XLPE/ PVC aluminum core, xlpe insulated, pvc sheathed, electric cable
Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
Al/XLPE/SWA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable


12/20KV 3 Core XLPE Insulated Cable Technical Data:

No.cores

x

cross-sec.

Operation
voltage
max.

Nominal
voltage
U0/U

Insulation
thickness

Sheath
thickness
Nominal
value

Outer Ø
approx.

weight
approx.

Current ratings in air 30℃

Current ratings buried 20℃

maximum DC resistance at 20℃
mm² kV kV mm mm mm kg / km A A Ω/km
3 x 35 24 12/20 5.5 2.6 52.5 3023 155 185 0.52
3 x 50 24 12/20 5.5 2.7 55.5 3891 180 218 0.39
3 x 70 24 12/20 5.5 2.8 59.3 4396 223 267 0.27
3 x 95 24 12/20 5.5 3.0 63 5264 271 318 0.19
3 x 120 24 12/20 5.5 3.1 66.2 6190 312 363 0.15
3 x 150 24 12/20 5.5 3.2 69.8 7240 363 417 0.12
3 x 185 24 12/20 5.5 3.3 73.7 8499 404 460 0.1
3 x 240 24 12/20 5.5 3.5 78.6 10353 471 531 0.08
3 x 300 24 12/20 5.5 3.6 83.8 12328 536 596 0.06
3 x 400 24 12/20 5.5 3.8 93.6 15921 630 684 0.05
