ATA AWA Copper Armoured Electrical Cable Low Smoke Halogen Free Material
ATA AWA Copper Armoured Electrical Cable Low Smoke Halogen Free Material
Specifications
Brand Name :
Huanghe
Model Number :
YJV22 YJV32 YJV72
Certification :
ISO OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor material :
Copper,Aluminum,Copper or Aluminum
Type :
Low Voltage,Medium Voltage
Jacket :
PVC,XLPE
Insulation material :
XLPE,PVC
Color :
customized color
Description

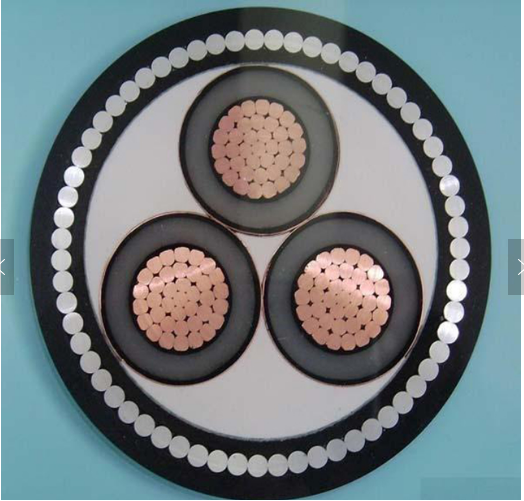

ATA AWA Copper Armoured Electrical Cable Low Smoke Halogen Free Material

The product is produced against IEC60502 and IEC60331, .

And the product can be produced against the standard of BS, DIN, and the standard required by the clients.

This product is copper core AC 1kv-35kv power cable, according to GB / T12706-2008 standard production, mainly used for power transmission between equipment, as well as transmission, distribution stations, the use of the State Grid, with complete specifications, the structure of diversified features . Among them, WDZ is a low-smoke halogen-free material with anti-aging, tear-resistant, low smoke, halogen-free and flame retardant properties and can maintain its excellent electrical and mechanical properties in complex environments. More reliable use of performance.

Features:
1. The long-term permissible operation temperature of the conductor shall not be higher than 70°C.
2. The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second).
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0°C.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame resistant

5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
6. Rated voltage: 0.6/1kV, 3.6/6kV.
7. Number of cores: One, two, three, four, five.

8.Cable laying, bend radius≥10 times cable O. D.

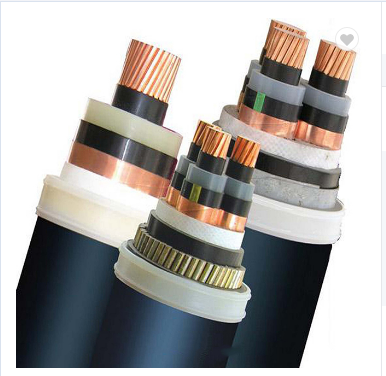

STA SWA ATA AWA Copper Aluminum different color Armoured Electrical cable

Type Designation Application
Cu Al
YJV YJLV XLPE insulated PVC sheathed power cable Suitable for indoor, channels, conduits. Unable to bear mechanical stress.
YJY YJLY XLPE insulated PE sheathed power cable
YJV22 YJLV22 XLPE insulated steel-tape armored PVC sheathed power cable Suitable for under ground, can bear mechanical stress, but can not endure large pulling force.
YJV23 YJLV23 XLPE insulated steel-tape armored PE sheathed power cable
YJV32 YJLV32 XLPE insulated fine steel-wire armored PVC sheathed power cable Can be installed in vertical well, and bear large mechanical pulling force.
YJV42 YJLV42 XLPE insulated steel-wire armored PVC sheathed power cable
YJV33 YJLV33 XLPE insulated fine steel-wire armored PE sheathed power cable
YJV43 YJLV43 XLPE insulated steel-wire armored PE sheathed power cable

STA SWA ATA AWA Copper Aluminum different color Armoured Electrical cable

ATA AWA Copper Armoured Electrical Cable Low Smoke Halogen Free Material

ATA AWA Copper Armoured Electrical Cable Low Smoke Halogen Free Material
