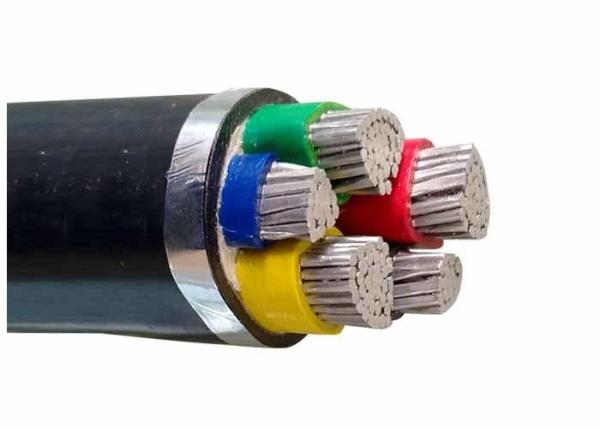

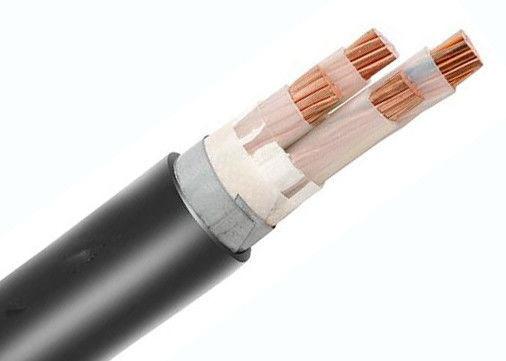

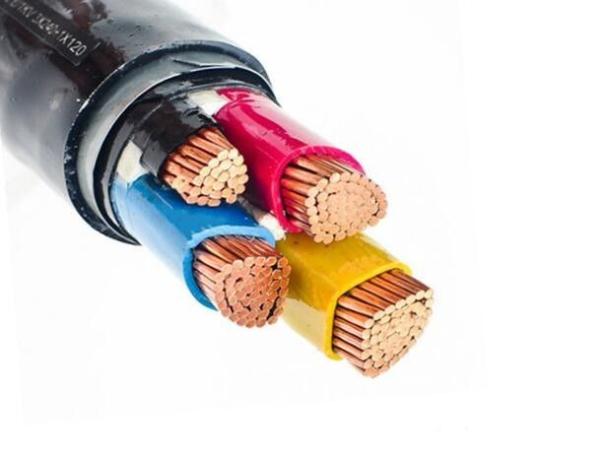

4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
Specifications
Brand Name :
Huanghe
Model Number :
PVC Insulated Electrical Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor :
Annealed Copper or Hard Drawn Aluminum
Insulation :
Polyvinyl Chloride (PVC)
Outer Sheath :
Polyvinyl Chloride (PVC)
Armor :
DSTA/SWA/AWA Armored or Unarmored
Rated Voltage :
0.6/1KV
Cross Section Area :
0.75mm2-1000mm2
Standard :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Color :
Black or Customized
Application :
Construction, Industrial, Underground, Power Station
Feature :
Abrasion-resistant
Description

4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof

Rated Voltage:

0.6/1kv

Number of cores:

1 core, 2 core, 3 core, 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core

PVC Insulated Cable Application:

PVC insulated cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks.

PVC Insulated Cable Electrical Characreristics:

Rated Voltage Uo/U 0.6/1 kV
Maximum operating voltage 1.2 kV
Frequence 50 Hz
Test voltage : 3500 V

PVC Insulated Cable Usage Characteristics:
Permissible operating temperature at conductor +70°C
short circuit temperature ( duration max. 5 s) +160°C
Minimum installation temperature should not be lower than 0°C
Max. conductor permissible tensile stress 50 N/mm²
Minimum bending radius 15 x cable Ø

4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof

PVC Insulated Cable Types:

PVC Insulated Cable Types Description Cores Nomi Section Area
Cu/PVC/PVC copper core, pvc insulated,
pvc sheathed, electric cable		 1 core


2 core


3 core


4 core


5 core


3+1 core


3+2 core


4+1 core		 1.5~1000mm2
Al/PVC/PVC aluminum core, pvc insulated,
pvc sheathed, electric cable
Cu/PVC/STA/PVC copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable 4~1000mm2
Al/PVC/STA/PVC aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable
Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable
Al/PVC/SWA/PVC aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable
ZR-Cu/PVC/PVC copper core, pvc insulated, pvc sheathed, flame retardant, electric cable 1.5~1000mm2
ZR-Al/PVC/PVC aluminum core, pvc insulated, pvc sheathed, flame retardant, electric cable
ZR-Cu/PVC/STA/PVC copper core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable 4~1000mm2
ZR-Al/PVC/STA/PVC aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable
ZR-Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed,
flame retardant, electric cable
ZR-Al/PVC/SWA/PVC aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable


PVC Insulated Cable Technical Data:

0.6/1KV Cu- conductor, PVC Insulated, PVC Sheathed (Unarmoured) 3 core

No.cores x
cross-sec.		 Insulation
thickness

Nominal

Sheath
thickness

 Outer Ø
approx.		 weight
approx.		 Current ratings in air 30℃ Current ratings buried 20℃ maximum DC resistance at 20℃
mm² mm mm mm kg / km A A Ω/km
3×1.5 0.7 1.8 10.1 132 21 28 12.1
3×2.5 0.7 1.8 11.0 171 28 37 7.41
3×4.0 0.7 1.8 12.0 225 37 48 4.61
3×6.0 0.7 1.8 13.1 296 47 61 3.08
3×10 0.7 1.8 15.3 440 64 82 1.83
3×16 0.7 1.8 17.5 638 85 107 1.15
3×25 0.9 1.8 21.0 954 115 138 0.73
3×35 0.9 1.8 23.1 1266 140 165 0.52
3×50 1.0 1.8 23.4 1614 168 198 0.39
3×70 1.1 1.9 27.4 2264 213 242 0.27
3×95 1.1 2.0 30.6 2975 263 290 0.19
3×120 1.2 2.1 34.0 3776 307 330 0.15
3×150 1.4 2.3 38.6 4682 357 371 0.12
3×185 1.6 2.4 43.3 5802 415 418 0.10
3×240 1.7 2.6 48.1 7437 498 485 0.08
3×300 1.8 2.8 52.2 9313 575 548 0.06

0.6/1KV Cable Cu- Conductor, PVC Insulated, Steel Tape Armoured PVC Sheathed 3 Core

No.cores x
cross-sec.		 Insulation
thickness

Nominal

Sheath
thickness

 Outer Ø
approx.		 weight
approx.		 Current ratings in air 30℃ Current ratings buried 20℃ maximum DC resistance at 20℃
mm² mm mm mm kg / km A A Ω/km
3×4 0.7 1.8 15.2 379 37 45 4.61
3×6 0.7 1.8 16.3 463 46 57 3.08
3×10 0.7 1.8 18.6 628 63 77 1.83
3×16 0.7 1.8 20.7 851 83 100 1.15
3×25 0.9 1.8 24.2 1209 112 131 0.73
3×35 0.9 1.8 26.4 1546 137 158 0.52
3×50 1.0 1.8 26.8 1908 163 187 0.39
3×70 1.1 2.0 32.0 2874 211 233 0.27
3×95 1.1 2.2 35.4 3685 255 277 0.19
3×120 1.2 2.3 38.8 4560 298 317 0.15
3×150 1.4 2.4 43.4 5570 348 358 0.12
3×185 1.6 2.6 48.5 6837 403 403 0.10
3×240 1.7 2.7 53.5 8606 480 468 0.08
3×300 1.8 2.9 57.6 10577 549 531 0.06


4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
