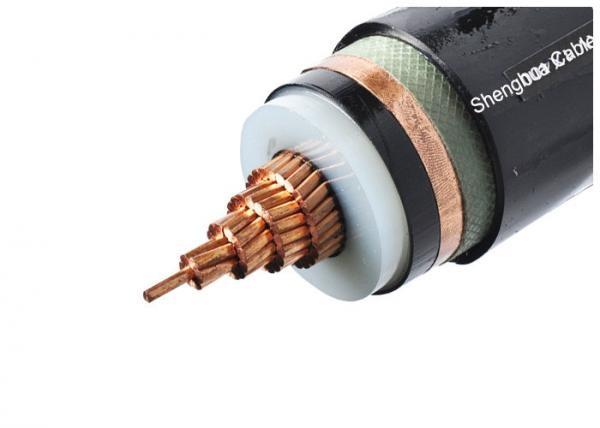

Medium Voltage XLPE Insulated Cable Unarmoured PVC Sheath

1. Medium Voltage XLPE Insulated Electrical Cable Application:

The voltage of MV XLPE electrical cable is up to 35KV. The xlpe cable has many characteristics such as high electric strength, mechanical strength, anti-chemical corrosion etc. So the xlpe cables has been used in indoor, tunnel, canal, power plant etc. for power distribution.

2. Rated Voltage of Medium Voltage XLPE Insulated Electrical Cable:

3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 26/35KV



3. Construction of Medium Voltage XLPE Insulated Electrical Cable:

Conductor: Copper or Aluminum
Insulation: Crosslinked Polyethylene (XLPE)
Inner sheath: Polyvinyl Chloride (PVC)
Armour: Double Steel Tape (DSTA), Galvanized Steel Wire (SWA), Aluminum Wire Armoured (AWA)
Outer Sheath: Polyvinyl Chloride (PVC)

4. Characters of Medium Voltage XLPE Insulated Electrical Cable:

a. Max. Long-time operating temperature: 90°C
b. Max. short-circuit temperature: not exceed 250°C in 5 Second
c. Installing temperature of cable: not less than 0°C
d. Unable be laid without the limit of fall with enough mechanical pull. Single core cable can not be laid in iron tube or fixed by circled iron tools around cables.


5. Standard of XLPE Insulated Electrical Cable:

According to GB12706(Equal to IEC60502). The cable also could be producted by standard of ASTM, BS, DIN or other standards as request.

6. Our Advantages

a. Professional Cable Manufacturer & Supplier
b. Wire & Cable Factory since 1980
c. China Famous Brand (Huanghe)
d. Choose High Quality Raw Materials
e. Complete Quality Inspection System
f. Professional Technical Team Support
g. Well-qualified Sales Team
h. Get Quick Response in 24 Hours
i. Short Producing Period & Delivery on Time
