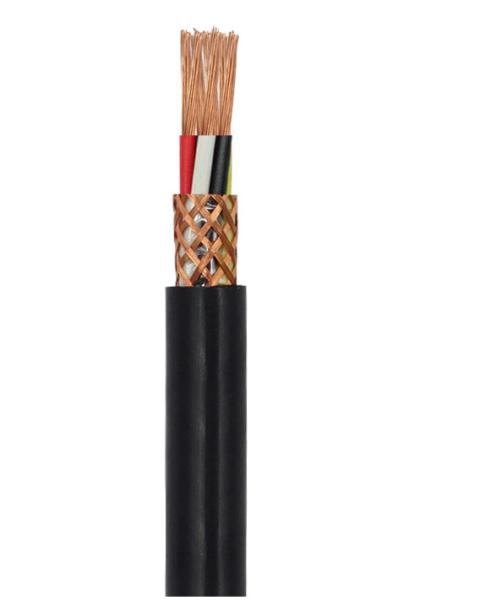

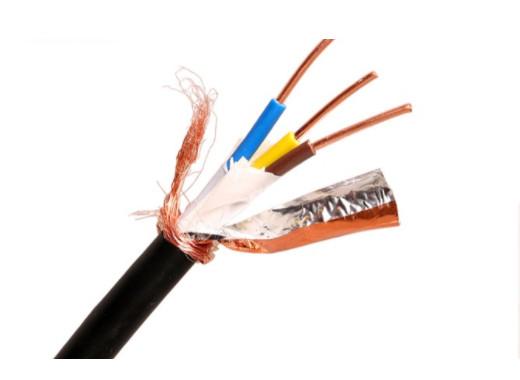

Alarm System Fire Resistant Cable SWB Shield Low Smoke Zero Halogen Wire
Alarm System Fire Resistant Cable SWB Shield Low Smoke Zero Halogen Wire
Alarm System Fire Resistant Cable SWB Shield Low Smoke Zero Halogen Wire
Alarm System Fire Resistant Cable SWB Shield Low Smoke Zero Halogen Wire
Specifications
Brand Name :
Huanghe
Certification :
ISO OHSAS CCC
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 per week
Delivery Time :
5-8 days
Packaging Details :
Wooden drum
Application :
Mining,Alarm system and Signaling
Insulation material :
Fiberglass,
Conductor material :
copper
Type :
Insulated
Conductor type :
Stranded,flexible
Color :
black and others
Description

Alarm System Fire Resistant Cable SWB Shield Low Smoke Zero Halogen Wire

Applications:
The cable is suitable for machine tools productions, the installation engineering of complete equipment, power stations, air-conditioning system, heating system, refrigeration equipment, Office Automation equipment, data processing system and other related situations.

Properties:
Has good mechanical, electrical insulation, and chemical properties. It also has the property of anti-electromagnetic wave due to the shielded structure..

Working Voltage:
< 0.75mm²:300/300V
≥ 0.75mm²:300/500V

Standards:
JB8734.4-1998 GB5023.5-2008

Fire rated cable for fire alarm system SWB shield Fire resistant Cable

Nominal Area mm2/AWG
Specification
Rated voltage
External Diameter mm
0.2(25AWG)
0.14*12
300/500V
4.4
0.2(24AWG)
0.15*12
300/500V
4.4
0.3(23AWG)
0.14*16
300/500V
5.0
0.3(22AWG)
0.15*18
300/500V
5.0
0.4(21AWG)
0.14*28
300/500V
5.6
0.5(20AWG)
0.15*28
300/500V
5.6
0.75(19AWG)
0.19*24
300/500V
6.5
1.0(18AWG)
0.18*32
300/500V
6.8
1.0(17AWG)
0.2*32
300/500V
6.8
1.5(16AWG)
0.19*48
300/500V
7.4
2.0(15AWG)
0.23*40
300/500V
9.4
2.0(14AWG)
0.24*45
300/500V
9.4
2.6(13AWG)
0.24*58
300/500V
10.0
4.0(12AWG)
0.24*80
300/500V
11.0
4.0(11AWG)
0.24*92
300/500V
11.0
6.0(10AWG)
0.24*115
300/500V
11.6

Fire rated cable for fire alarm system SWB shield Fire resistant Cable
Alarm System Fire Resistant Cable SWB Shield Low Smoke Zero Halogen Wire
