Inorganic Mineral Insulated Cable Mica Tape Wrapped Copper Sheathed Material
Inorganic Mineral Insulated Cable Mica Tape Wrapped Copper Sheathed Material
Inorganic Mineral Insulated Cable Mica Tape Wrapped Copper Sheathed Material
Inorganic Mineral Insulated Cable Mica Tape Wrapped Copper Sheathed Material
Specifications
Brand Name :
Huanghe
Model Number :
BTTQ BTTZ
Certification :
ISO OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Price :
1-10USD
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Usage :
School and hospital
Material :
Copper
Service :
20-100 years
Sample :
Supply free sample
Sheath material(1) :
601,INCL600
Standard :
GB/T 18380 IEC 60332-3 BS6387, ANSI, IEC584
Product name :
Mi thermocouple cable, 4 Core MI cable Copper Sheathed Mineral Insulated Cable
Description

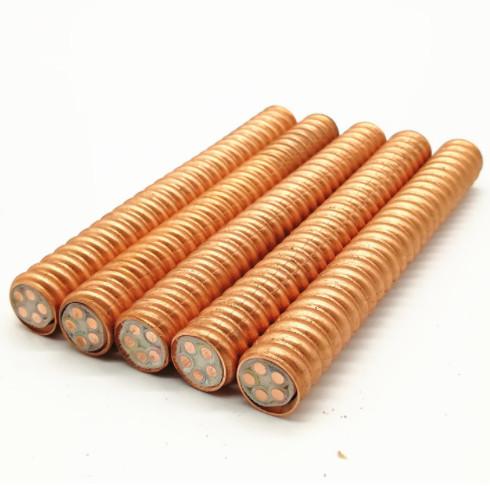

Inorganic Mineral Insulated Cable Mica Tape Wrapped Copper Sheathed Material

The inorganic mineral insulated Cable are made of copper conductor, inorganic mineral synthetic mica tape wrapped insulation with high temperature resistant of1370 °C, metal sheath that used for fire resistant systems. Maintain circuit integrity under fire conditions.

Advantage:

YTTW insulation is made of inorganic materials. When the copper is used for the sheath,the price of the same size,the price of the same size is higher than that of organic material cable.But from the comprehensive economic benefit,the inorganic insulated cables have obvious superiority:
A: The outer sheath of copper sheathed mineral insulated cable can make PED line,four core cables can substitute five core cables,greatly reducing the price difference;
B: without accessories of through tubes and trays,such cables can be directly laid,saving the cost of accessories;
C:The low smoke halogen-free organic insulated cables will still produce low smoke and low toxic during burning.It can’t be compared with the ability of smoke-free non-toxic of inorganic mineral insulated cables.
D: The service life of organic cable is only 1/5 of that of inorganic cables.So we can see that the comprehensive price of inorganic cables would be much cheaper than the organic cables.


0.6/1KV Mica Tape Wrapped Copper Sheathed Inorganic Mineral Insulated Fireproof Cable

Product Details

Model Description Core Nominal cross sectional area of conductor
0.6/1kV

YTTW

YTTWV

YTTWY

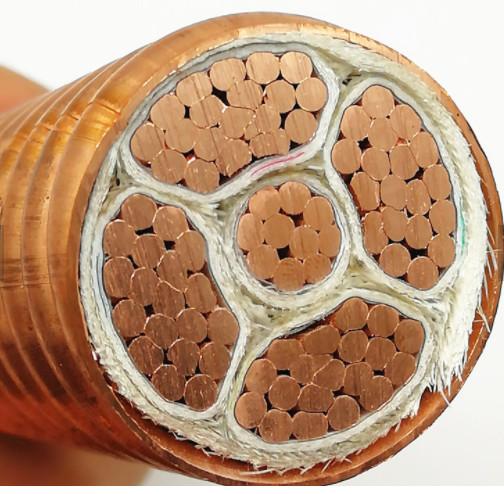

 Copper conductor, Mica tape wrapped insulation, Copper corrugated sheath, (optional outer covering of extruded PVC or LSZH), Fire resistant cable 1,2,3,4,3+1 10~630 mm²



Fire-resistive performance test

Test item GB/T19216 BS6387 IEC331
Fire-resistive test

750℃
90min

Class A 650℃ 180min
Class B 750℃ 180min
Class C 950℃ 180min
Class S 950℃ 20min

750℃
180min
Water spray test without Class W 650℃ 15min Without
Impact test without

Class X 650℃ 15min
Class Y 750℃ 15min
Class Z 950℃ 15min

 without


0.6/1KV Mica Tape Wrapped Copper Sheathed Inorganic Mineral Insulated Fireproof Cable
