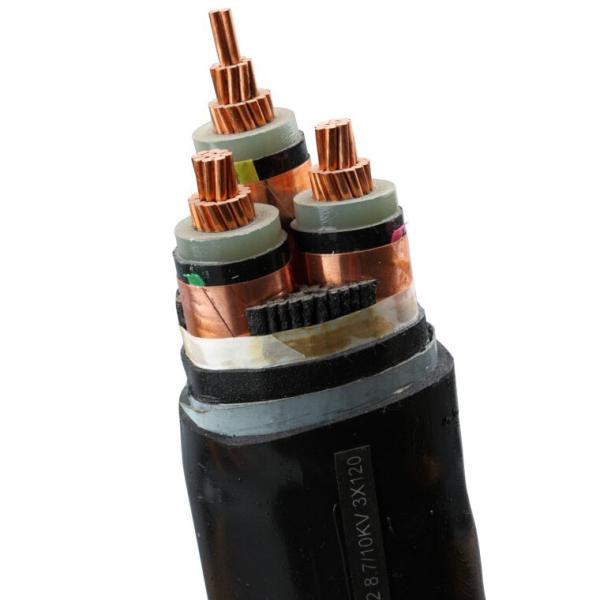

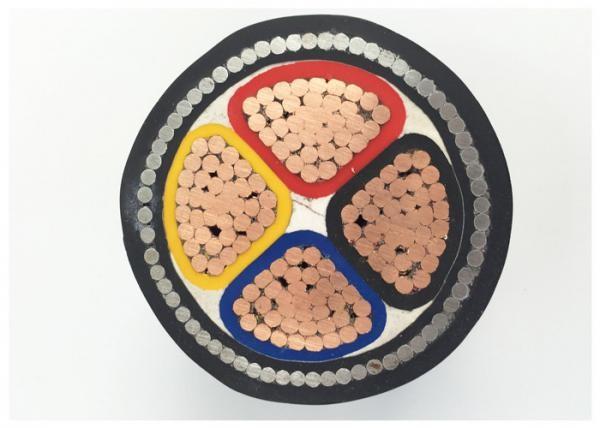

Outdoor Armoured Electrical Cable With IEC60502 BS IEC ASTM DIN Standard
Outdoor Armoured Electrical Cable With IEC60502 BS IEC ASTM DIN Standard
Outdoor Armoured Electrical Cable With IEC60502 BS IEC ASTM DIN Standard
Outdoor Armoured Electrical Cable With IEC60502 BS IEC ASTM DIN Standard
Outdoor Armoured Electrical Cable With IEC60502 BS IEC ASTM DIN Standard
Outdoor Armoured Electrical Cable With IEC60502 BS IEC ASTM DIN Standard
Specifications
Brand Name :
Huanghe
Model Number :
STA/SWA/AWA Armoured Electrical Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor Core :
Annealed Copper/Hard Drawn Aluminum
Insulation :
XLPE/PVC/PE
Outer Sheath :
PVC/PE
Armour Layer :
STA/SWA/AWA
Cable Voltage :
600V to 35KV
Cross Section Area :
0.75mm2-1000mm2
Standard :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Color :
Black (or customized)
Description

Outdoor Armoured Electrical Cable With IEC60502 BS IEC ASTM DIN Standard

Application:

Armoured electrical cables are used for electricity supply system. The cables could bear external force and damage. They are widely used in cable ducts, under ground, in power and switching stations etc.

Standard:

IEC60502, BS6346, VDE, AS/NZS, UL etc.

Rated Voltage:

0.6/1kv, 1.8/3kv, 3.6/6kv, 6/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv, 26/35kv


Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 (low votage cable)

1, 3 core (medium voltage cable)

STA/SWA/AWA Armoured Electrical Cable Types:

0.6/1kV PVC Insulated Armoured Electric Cable
PVC Armoured Cable Types Description Cores Nomi Section Area (mm2)
Cu/PVC/STA/PVC copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
Al/PVC/STA/PVC aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable
Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable
Al/PVC/SWA/PVC aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable

0.6/1kV XLPE Insulated Armoured Electric Cable
XLPE Armoured Cable Types Description Cores Nomi Section Area (mm2)
Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
Al/XLPE/SWA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable

0.6/1kV Flame Retardant & Fire Proof Armoured Electric Cable
FRLS Armoured Cable Types Description Cores Nomi Section Area (mm2)
ZR- Cu/PVC/STA/PVC copper core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
ZR- Al/PVC/STA/PVC aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable
ZR- Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable
ZR- Al/PVC/SWA/PVC aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable
NH- Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed, fire proof, electric cable

Medium Voltage XLPE Insulated Armoured Electric Cable
XLPE Armoured Cable Types Description Cores Nomi Section Area (mm2)
Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable

1 core

3 core

25, 35,

50, 70,

95, 120,

150, 185,

240, 300,

400, 500, 630, 800, 1000
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
Al/XLPE/SWA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
