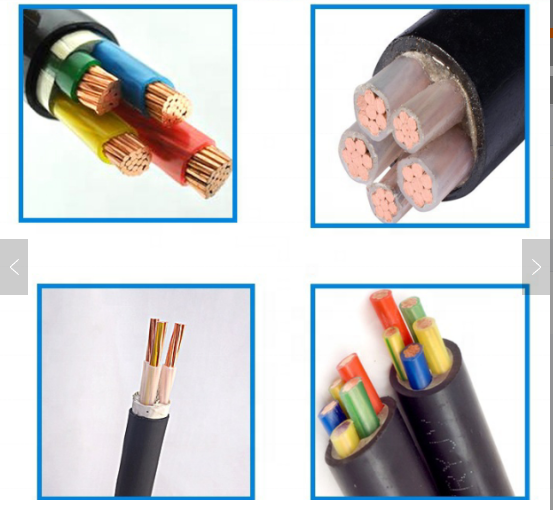

PVC Sheath Armored Power Cable Fire Resistant Copper Cores XLPE Insulated
PVC Sheath Armored Power Cable Fire Resistant Copper Cores XLPE Insulated
PVC Sheath Armored Power Cable Fire Resistant Copper Cores XLPE Insulated
PVC Sheath Armored Power Cable Fire Resistant Copper Cores XLPE Insulated
Specifications
Brand Name :
Huanghe
Model Number :
YJV72 YJLV72
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Application :
Construction,Customized Electrical Wire Power Cable
Jacket :
PVC,XLPE
Insulation material :
XLPE
Standard :
IEC60502,GB/T12706
Rated voltage :
600/1000 Volts
Name :
Armoured Electrical Cable
Description

PVC Sheath Armored Power Cable Fire Resistant Copper Cores XLPE Insulated

The construction of fire resistant cable armoured electrical cable
a,stranded (RM) bare copper
b, Mica Tape for Fire Resistant
c,core insulation of cross-linked polyethylene
d, Fillers
e,Wrapping tape or Flame Retardant tape
f,PVC Inner Bedding
g, Galvanized Steel Wire Armour
houter sheath of polyvinylchloride (PVC)

1. Heat resistance: The mesh XLPE has excellent heat resistance.Does not decompose under 200 °C and carbonization, long-term working temperature is 90 °C, hot life up to 40 years.
2. Insulation performance: XLPE maintains the good insulation characteristics of PE, and the insulation resistance further increases.The tangent of dielectric loss Angle is very small, and it is not affected by temperature.
3. Mechanical properties: The hardness, stiffness, abrasion resistance and impact resistance of XLPE are improved due to the establishment of new chemical bonds between macromolecules, thus making up for the vulnerability of PE to environmental stress and cracking.
4. Chemical resistance: XLPE has strong acid and alkali resistance and oil resistance, and its combustion products are mainly water and carbon dioxide, which are less harmful to the environment and meet the requirements of modern fire safety.


Fire resistant copper cores XLPE insulated PVC sheath Armoured Electrical Cable

Nom. Cross-section of conductor

Strands
No./Dia. Of Conductor

 Insulation Thickness Inner Covering Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D.

Approx.
Weight

 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)

4 × 4 7/0.85 0.7 1.0 0.9 1.8 18.0 699 4.61 3.5 34 45
4 × 6 7/1.04 0.7 1.0 1.25 1.8 19.0 820 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.0 1.25 1.8 22.0 1233 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.0 1.6 1.8 24.5 1550 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.0 1.6 1.8 29.2 2036 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.0 2.0 1.9 32.5 2501 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.0 2.0 2.0 33.0 3064 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.0 2.0 2.1 37.0 3974 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.2 2.0 2.3 43.0 5032 0.193 3.5 245 270
4 × 120 24/2.52 1.2 1.2 2.5 2.5 45.0 6327 0.153 3.5 285 310
4 × 150 30/2.52 1.4 1.4 2.5 2.7 51.0 7765 0.124 3.5 325 345
4 × 185 37/2.52 1.6 1.4 2.5 2.8 56.0 9205 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 1.4 2.5 3.0 62.0 11444 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 1.6 2.5 3.2 67.0 13830 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 1.6 3.15 3.5 74.0 19673 0.0470 3.5 570 575


Fire resistant copper cores XLPE insulated PVC sheath Armoured Electrical Cable
