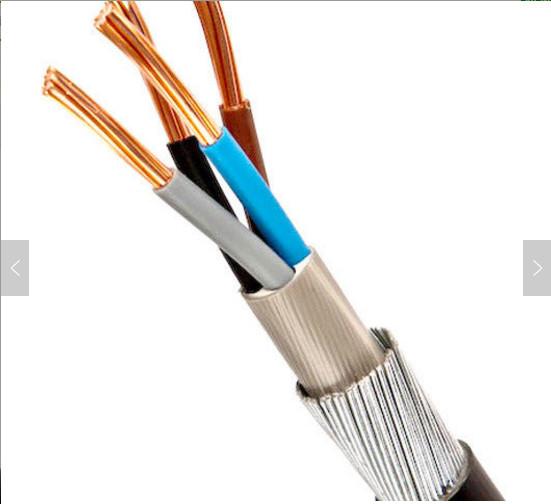

Anti Corrosion Armoured Power Cable XLPE Insulated PVC Sheath For Construction
Anti Corrosion Armoured Power Cable XLPE Insulated PVC Sheath For Construction
Anti Corrosion Armoured Power Cable XLPE Insulated PVC Sheath For Construction
Anti Corrosion Armoured Power Cable XLPE Insulated PVC Sheath For Construction
Specifications
Brand Name :
Huanghe
Model Number :
YJV22 YJLV22
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Type :
Medium Voltage
Application :
Construction,Underground
Jacket :
XLPE
Insulation :
XLPE or PVC
Standard :
IEC60502
Color :
Black
Description

Anti Corrosion Armoured Power Cable XLPE Insulated PVC Sheath For Construction

XLPE insulated steel wire armoured power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature.

XLPE insulated power cable and advantages
XLPE insulated power cable has a number of advantages than paper insulted and PVC insulated cables. XLPE cable has high electric strength, mechanical strength, high-ageing resistance, environment stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

XLPE cable have higher long-term working temperature and greater current rating, and under the condition of the same environment, XLPE cable may be reduced size (normal cross section) 1 or 2 class in comparison with PVC cable. These are not only improving the quality and properties of products, but also reduce cables' production cost.

Armoured Cable

steel tape armor/steel foil armoured,steel wire armoured/steel wire armoring/SWA.
Steel tape armored cable models: VV22, VV23, VLV22, VLV23, YJV22, YJV23, YJLV22, YJLV23,ZR-VV22, NH-VV22,WDZ-YJV22, WDZ-YJV23,WDZ-YJY22

Steel wire armoured cable models :VV32 VV42 VLV32 VLV42 YJV32 YJV42 YJLV32 YJLV42

Copper power cable XLPE insulated PVC sheath Armoured Electrical Cable

Model Number Description Application
YJV/YJLV

Copper/Aluminum conductor, XLPE insulated,

PVC sheathed power cable

For laying indoors , in tunnel,

in cable trench,

or direct in ground ,

unable to bear external

mechanical forces.
YJV22/YJLV22

Copper/Aluminum conductor, XLPE insulated,

steel taped armored, PVC sheathed power cable

For laying indoors,

in tunnel, in cable trench,

or ditect in ground,

able to bear external

mechanical forces,

but unable to bear

large pulling forces.

YJV23/YJLV23

Copper/Aluminum conductor, XLPE insulated,

steel taped armored, PE sheathed power cable
YJV32/YJLV32

Copper/Aluminum conductor, XLPE insulated,

steel wire armored, PVC sheathed power cable

For laying in high drop

area, able to bear

external mechanical force

and certain pulling forces.

YJV33/YJLV33

Copper/Aluminum conductor, XLPE insulated,

steel wire armored, PE sheathed power cable

Copper power cable XLPE insulated PVC sheath Armoured Electrical Cable
