STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV
STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV
STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV
STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV
STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV
STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV
Specifications
Brand Name :
Huanghe
Model Number :
600V to 35KV Armoured Electrical Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor :
Annealed Copper/Hard Drawn Aluminum
Insulation :
XLPE/PVC/PE
Sheath :
PVC/PE
Armour Layer :
STA/SWA/AWA or Unarmoured
Voltage :
600V to 35KV
Cross Section Area :
0.75mm2 to 1000mm2
Standard :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Description

STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV

Application:

These cables are used for electricity supply in lv & mv installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, that could bear external damage.

Standard: IEC60502, BS6346, VDE, AS/NZS, UL etc.

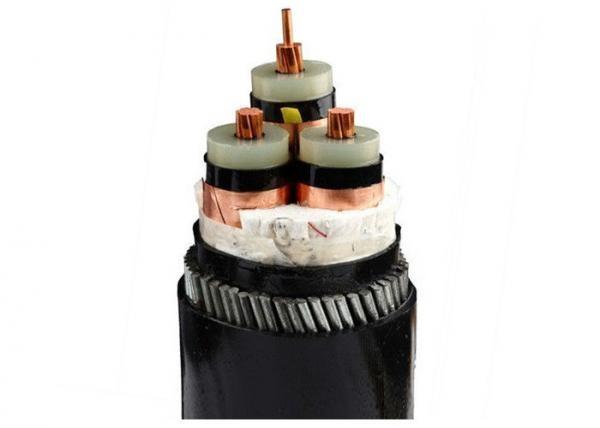

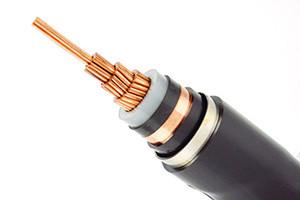

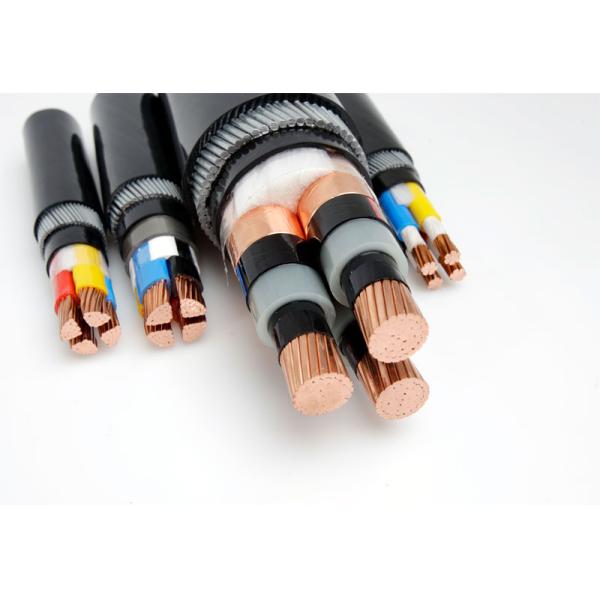

Construction:

Conductor: Annealed Copper/Hard Drawn Aluminum

Insulation: XLPE/PVC/PE
Amoured Layer: Double Steel Tape Armored (DSTA)/Steel Wire Armoured (SWA)/Aluminum Wire Armoured (AWA)
Sheath: Polyvinyl chloride (PVC)/Polyethylene (PE)

STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV

Rated Voltage:

0.6/1kv, 1.8/3kv, 3.6/6kv, 6/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv, 26/35kv

STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 (low votage cable)

1, 3 core (medium voltage cable)

Sectional Area:

1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2

STA SWA AWA Armoured Electrical Cable XLPE PVC PE Insulated 600V - 35KV
