STA PVC Sheath Armoured Electrical Cable XLPE Insulated For Power Station
STA PVC Sheath Armoured Electrical Cable XLPE Insulated For Power Station
STA PVC Sheath Armoured Electrical Cable XLPE Insulated For Power Station
STA PVC Sheath Armoured Electrical Cable XLPE Insulated For Power Station
Specifications
Brand Name :
Huanghe
Model Number :
YJV22
Certification :
ISO OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Armour :
aluminum wire armor,Steel tape armour,Steel wire armour
Packing :
Wood-steel drum
Cores :
Multi core
Cross section :
50mm to 240mm2
Color :
Black
Application :
Power Station
Description

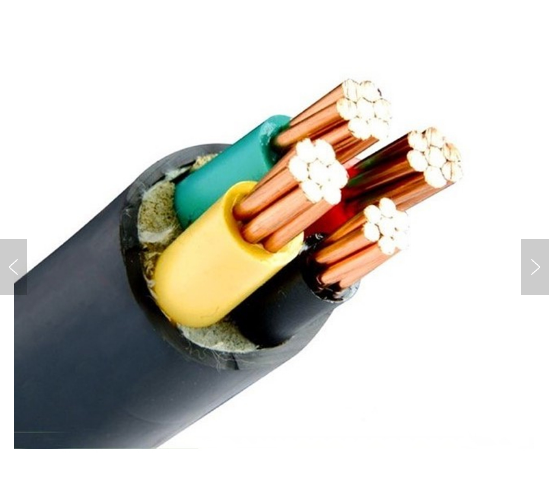

STA PVC Sheath Armoured Electrical Cable XLPE Insulated For Power Station

The basic structure of power cables by the core (conductor), an insulating layer, a shielding layer and a protective layer of four parts.

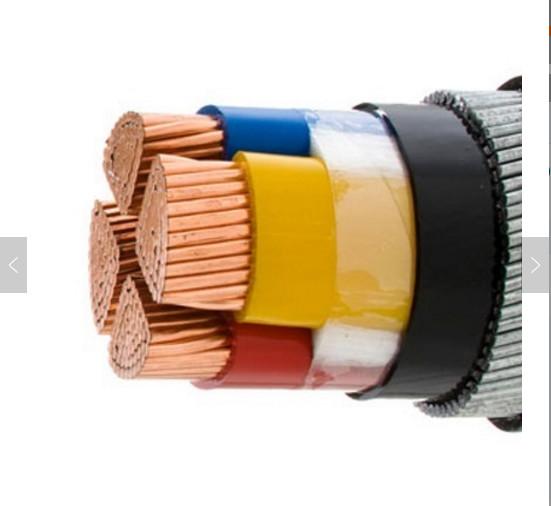

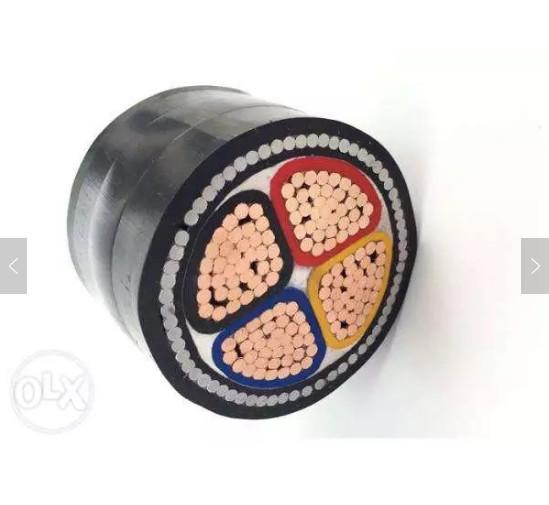

Electric cable with copper conductors, XLPE insulation, PVC bedding, double galvanized steel tapes armour (STA) and PVC outer sheath

1. The conductor is conductive part of power cable, which is used to transfer power, is the main part of the power cable.

2. Insulation is the line between the core and the earth and the different phase of wire core in the electrical insulated from each other, is an indispensable part in the structure of power cable.

3. Shield 10KV power cable shielding layer and more generally have a conductor shielding layer and an insulating shielding layer.

4. Protective layer The role of the protective layer is to protect the power cable from the outside world the invasion of the impurities and moisture, and prevent the external force directly damage the power cable.

XLPE Insulated STA armour PVC Sheath Armoured Electrical Cable

Conductor material Copper
Conductor flexibility Stranded class 2 to IEC 60228
Insulation PVC
Inner sheath PVC
Armour type Galvanized steel tapes
Outer sheath PVC
Colour Black
Lead free Yes

Rated Voltage Uo/U 0.6/1 kV
Maximum operating voltage 1.2 kV
Frequence 50 Hz
Test voltage : 3500 V

Permissible operating temperature at conductor +90°C
short circuit temperature ( duration max. 5 s) 250 °C
Minimum installation temperature should not be lower than 0°C
Max. conductor permissible tensile stress 50 N/mm²
Minimum bending radius 15 x cable Ø

XLPE Insulated STA armour PVC Sheath Armoured Electrical Cable

STA PVC Sheath Armoured Electrical Cable XLPE Insulated For Power Station
