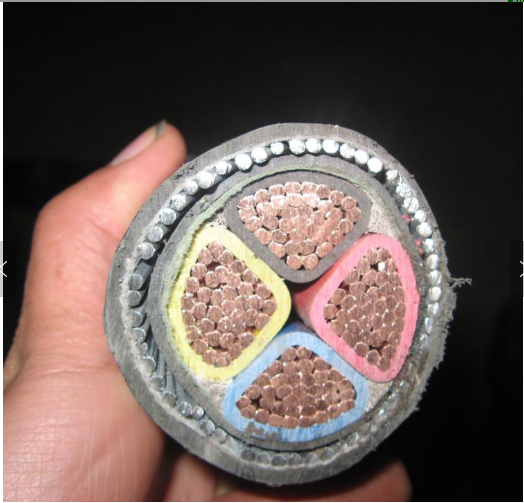

Armoured XLPE Electrical Cable For Power Transmission And Distribution
Armoured XLPE Electrical Cable For Power Transmission And Distribution
Armoured XLPE Electrical Cable For Power Transmission And Distribution
Armoured XLPE Electrical Cable For Power Transmission And Distribution
Specifications
Brand Name :
Huanghe
Model Number :
YJV72 YJLV72
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor material :
Aluminum
Type :
LV HV MV
Application :
Customized Electrical Wire Power Cable
Jacket :
PVC
Insulation :
XLPE
Color :
Customized
Description

Armoured XLPE Electrical Cable For Power Transmission And Distribution

Armoured Electrical Cable is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.

The cable consutrue standard allows :

1 Conductor
Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2 Insulation
PVC based thermoplastic or XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.
3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.
4 Armor
Galvanized round wires, or flat strips, completely covering the assembly of cores and a counter helix of galvanized steel tape on top; or two layers of steel tape, complying to the applicable requirements of IEC 60502-1.
5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
6 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
Underground XLPE insulated PVC sheath power Armoured Electrical Cable
Armored Cable Type
Low Voltage Armored Power Cable Specification
Copper Core
Aluminum Core
VV22
VLV22
Galvanized Steel Tape Armored Power Cable With PVC Insulation and PVC Sheath
VV23
VLV23
Galvanized Steel Tape Armored Power Cable With PVC Insulation and PE Sheath
VV32
VLV32
Fine Steel Wire Armored Power Cable With PVC Insulation and PVC Sheath
VV33
VLV33
Fine Steel Wire Armored Power Cable With PVC Insulation and PE Sheath
VV42
VLV42
Thick Steel Wire Armored Power Cable With PVC Insulation and PVC Sheath
VV43
VLV43
Thick Steel Wire Armored Power Cable With PVC Insulation and PE Sheath
YJV22
YJLV22
Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PVC Sheath
YJV23
YJLV23
Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PE Sheath
YJV32
YJLV32
Fine Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath
YJV33
YJLV33
Fine Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath
YJV42
YJLV42
Thick Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath
YJV43
YJLV43
Thick Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath

Underground XLPE insulated PVC sheath power Armoured Electrical Cable

Armoured XLPE Electrical Cable For Power Transmission And Distribution
