Underground SWA Electrical Cable XLPE PVC PE Insulated Annealed Copper
Underground SWA Electrical Cable XLPE PVC PE Insulated Annealed Copper
Underground SWA Electrical Cable XLPE PVC PE Insulated Annealed Copper
Underground SWA Electrical Cable XLPE PVC PE Insulated Annealed Copper
Specifications
Brand Name :
Huanghe
Model Number :
STA/SWA/AWA Armoured Electrical Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :

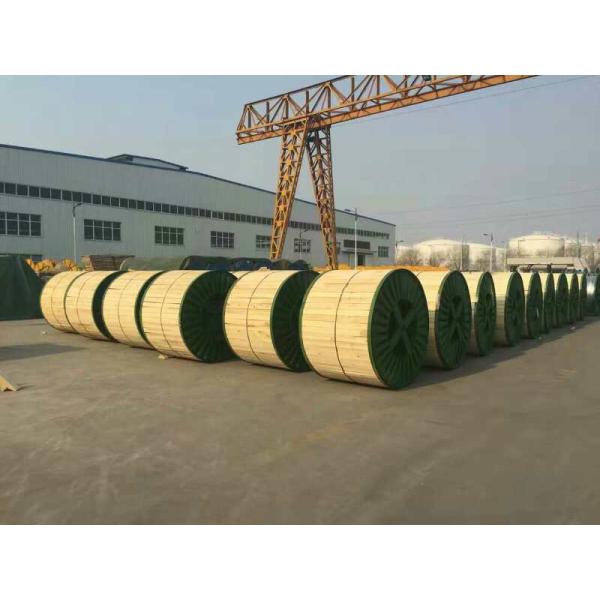

wooden drum
Conductor Core :
Annealed Copper or Hard Drawn Aluminum
Insulation :
XLPE/PVC/PE Insulation
Outer Sheath :
PVC/PE Sheath
Armour Layer :
STA/SWA/AWA Armoured
Cable Voltage :
0.6KV to 35KV
Cross Section Area :
0.75mm2-1000mm2
Standard :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Color :
Black (or customized)
Description

Underground SWA Electrical Cable XLPE PVC PE Insulated Annealed Copper

Rated Voltage:

0.6/1kv, 1.8/3kv, 3.6/6kv, 6/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv, 26/35kv

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 (0.6/1kv cable)

1, 3 core (3.6/6kv to 26/35kv cable)

Application:

STA armoured cable can bear certain mechanical forces and SWA or AWA armoured cable can bear some pulling forces. So armoured electrical cable has been widely used in power distribution systems.

Underground SWA Electrical Cable XLPE PVC PE Insulated Annealed Copper

STA/SWA/AWA Armoured Electrical Cable Types:

0.6/1kV PVC Insulated Armoured Electric Cable
PVC Armoured Cable Types Description Cores Nomi Section Area (mm2)
Cu/PVC/STA/PVC copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
Al/PVC/STA/PVC aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable
Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable
Al/PVC/SWA/PVC aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable

0.6/1kV XLPE Insulated Armoured Electric Cable
XLPE Armoured Cable Types Description Cores Nomi Section Area (mm2)
Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
Al/XLPE/SWA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable

0.6/1kV Flame Retardant & Fire Proof Armoured Electric Cable
FRLS Armoured Cable Types Description Cores Nomi Section Area (mm2)
ZR- Cu/PVC/STA/PVC copper core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
ZR- Al/PVC/STA/PVC aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable
ZR- Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable
ZR- Al/PVC/SWA/PVC aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable
NH- Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed, fire proof, electric cable

Medium Voltage XLPE Insulated Armoured Electric Cable
XLPE Armoured Cable Types Description Cores Nomi Section Area (mm2)
Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable

1 core

3 core

25, 35,

50, 70,

95, 120,

150, 185,

240, 300,

400, 500, 630, 800, 1000
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
Al/XLPE/SWA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
