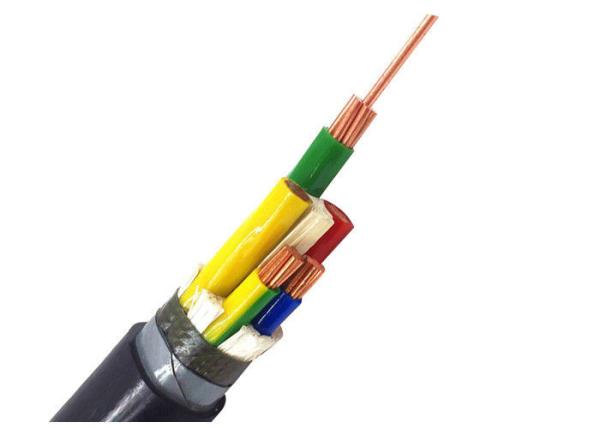

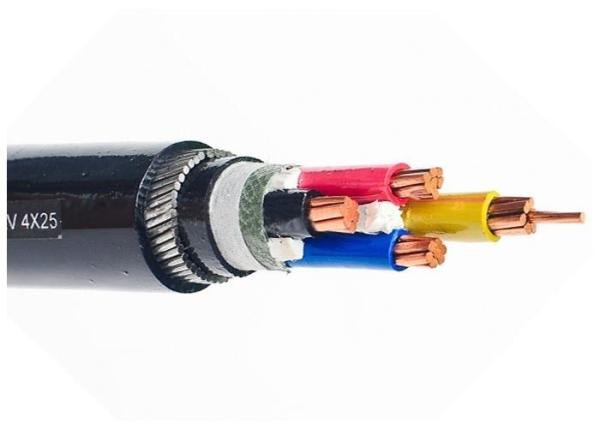

Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores
Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores
Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores
Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores
Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores
Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores
Specifications
Brand Name :
Huanghe
Model Number :
Low Voltage Electrical Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor :
Annealed Copper, Hard Drawn Aluminum
Insulation :
XLPE, PVC, PE
Armour :
DSTA, SWA, AWA
Outer Sheath :
PVC, ZR-PVC, PE
Sample :
Free Sample
Colour :
Black or As Requirement
Application :
Construction, Industrial, Underground etc.
Standard :
IEC, JIS, UL, BS, IEC, ASTM, DIN
Description

Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores

1. Uo/U: 0.6/1KV

2. Standard applied: IEC, GB, BS, VDE, AS/NZS or as customers' requirement.

3. Working temperature: 70~125 °C.

4. Conductor: solid or stranded pure annealed copper or aluminum.

5. Insulation: XLPE or PVC or PE or LSZH.

6. Cores: 1 core, 2 core, 3 core, 4 core, 5 core, 2+1 core, 3+1 core, 3+2 core, 4+1 core

7. Cross section area:

0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10m2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2

8. Armour:

SWA (steel wire armored) or STA (steel tape armored) or AWA (aluminum wire armored)

9. Sheath: PVC or PE or Low smoking and halogen free compounding etc.

10. Color: black or as per requirement.

11. Flame retardant or Fire resistance or Low smoking and halogen free or other properties can be available.

12. Wooden drum package or as per request.

13. OEM can be available.


Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores


LOW VOLTAGE ELECTRICAL CABLE APPLICATION

0.6/1 kV electrical cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for building and industrial plants. And the sta/swa/awa armoured cables could bear extrenal mechanical force.


Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores


LOW VOLTAGE ELECTRICAL CABLE TYPES

TYPE DESCRIPTION MAIN APPLICATION
CU core AL core
YJV/YJY YJLV/YJLY (Flame retardant) Cu, Al core XLPE insulated,PVC/PE sheathed power cable For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid
YJV22/YJV23 YJLV22/YJLV23 (Flame retardant) Cu, Al core XLPE insulated,steel tape armored,PVC/PE sheathed power cable For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force
YJV32/YJV33 YJLV32/YJLV33 (Flame retardant) Cu, Al core XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force
YJV42/YJV43 YJLV42/YJLV43 (Flame retardant) Cu, Al core XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable For laying in water and seabed.Able to bear positive pressure and pulling for

3 CORE STA ARMOURED LOW VOLTAGE CABLE DATA

No.cores x
cross-sec.		 Insulation
thickness

Nominal

Sheath
thickness

 Outer Ø
approx.		 weight
approx.		 Current ratings in air 30℃ Current ratings buried 20℃ maximum DC resistance at 20℃
mm² mm mm mm kg / km A A Ω/km
3×4 0.7 1.8 15.2 379 37 45 4.61
3×6 0.7 1.8 16.3 463 46 57 3.08
3×10 0.7 1.8 18.6 628 63 77 1.83
3×16 0.7 1.8 20.7 851 83 100 1.15
3×25 0.9 1.8 24.2 1209 112 131 0.73
3×35 0.9 1.8 26.4 1546 137 158 0.52
3×50 1.0 1.8 26.8 1908 163 187 0.39
3×70 1.1 2.0 32.0 2874 211 233 0.27
3×95 1.1 2.2 35.4 3685 255 277 0.19
3×120 1.2 2.3 38.8 4560 298 317 0.15
3×150 1.4 2.4 43.4 5570 348 358 0.12
3×185 1.6 2.6 48.5 6837 403 403 0.10
3×240 1.7 2.7 53.5 8606 480 468 0.08
3×300 1.8 2.9 57.6 10577 549 531 0.06


Annealed Copper Low Voltage Electrical Cable Hard Drawn Aluminum 1 Core To 5 Cores
