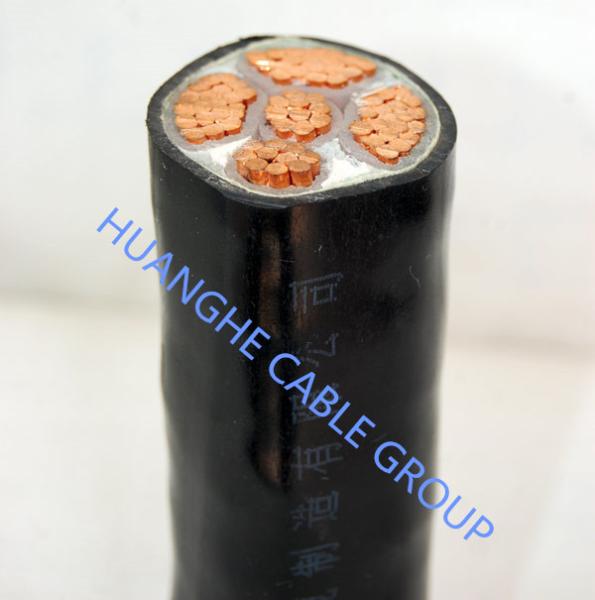

Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire
Specifications
Brand Name :
Huanghe
Model Number :
Low Voltage Electrical Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor :
Copper or Aluminum
Insulation :
XLPE/PVC/PE
Armour :
DSTA/SWA/AWA or Unarmoured
Sheath :
PVC/PE
Sample :
Free Sample
Color :
Black or As Requirement
Description

Copper / Aluminum Low Voltage Armored Cable Low Smoke Zero Halogen Wire

Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

0.6/1kV PVC or XLPE Insulated Electrical Cable
Electrical Cable Types Description Cores Nomi Section Area (mm2)
Cu or Al/PVC/PVC copper or aluminum core, pvc insulated, pvc sheathed, electrical cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
Cu or Al/PVC/STA/PVC copper or aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electrical cable
Cu or Al/PVC/SWA/PVC copper or aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electrical cable
Cu or Al/XLPE/PVC copper or aluminum core, xlpe insulated, pvc sheathed, electrical cable
Cu or Al/XLPE/STA/PVC copper or aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electrical cable
Cu or Al/XLPE/SWA/PVC copper or aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electrical cable

0.6/1kV Flame Retardant & Fire Proof Electrical Cable
Electrical Cable Types Description Cores Nomi Section Area (mm2)
ZR- Cu or Al/PVC/PVC copper or aluminum core, pvc insulated, pvc sheathed, flame retardant, electrical cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
ZR- Cu or Al/PVC/STA/PVC copper or aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electrical cable
ZR- Cu or Al/PVC/SWA/PVC copper or aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electrical cable
NH- Cu or Al/PVC/STA/PVC copper or aluminum core, pvc insulated, steel wire armoured, pvc sheathed, fire proof, electrical cable
