Xlpe Overhead Insulated Cable Aluminum Alloy Wire Conductor 1 Year Warranty
Xlpe Overhead Insulated Cable Aluminum Alloy Wire Conductor 1 Year Warranty
Xlpe Overhead Insulated Cable Aluminum Alloy Wire Conductor 1 Year Warranty
Xlpe Overhead Insulated Cable Aluminum Alloy Wire Conductor 1 Year Warranty
Specifications
Brand Name :
Huanghe
Model Number :
ACSR AAC ACC
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
coils, wooden drums, steel drums or steel-wooden drums
Application :
Overhead
Insulation material :
None, bare
Jacket :
None, Bare
Standard :
ASTM B232, IEC61089, BS215, DIN48204, BS EN50182, GB/T 1179-2008 etc.
Packing :
coils, wooden drums, steel drums or steel-wooden drums
Warranty :
1 Year
Description

Xlpe Overhead Insulated Cable Aluminum Alloy Wire Conductor 1 Year Warranty

1. 0.6/1kV Overhead Cable
2. Aluminum conductor
3. XLPE /PE Insulation
4. Phase conductor+ neutral Conductor
5. IEC ICEA NFC Standard
LV Aerial Bundled Conductor (ABC) Cables

It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance),as a secondary cable (pole to pole) or street lighting.
This over-head cable providesreinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140.
It is not flame retardant. But this could be if requested change to a flame retardant cable.

Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards

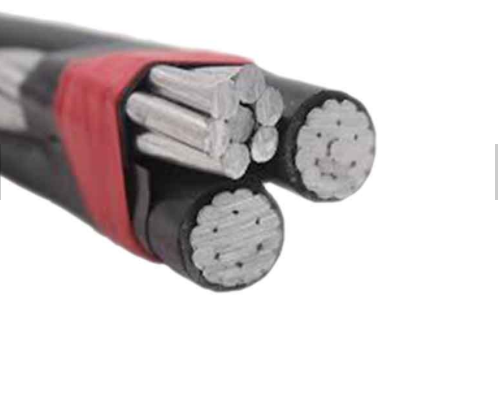

Construction of tripelx abc cable
Conductor: Aluminium conductor, round stranded compressed (RM).
insulation: XPLE compound, UV-resistant.
Core identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores.
The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm²
and a minimum of 16 ribs for cores above 50 mm². In the case of five core bundles the
surface of the protective core should be smooth.

ABC cable Aluminum alloy wire conductor overhead xlpe insulated cable 4*16mm

Electrical Properties
rated Voltage0.6/1kV
Test Voltage 4VeffkV
minimum laying Temperature -20°C
operating Temperature -40°C~ +90°C
maximum Short-circuit Temperature 250°C
maximum Conductor Temperature 80°C
minimum Bending radius 18×OD

ABC cable Aluminum alloy wire conductor overhead xlpe insulated cable 4*16mm

Xlpe Overhead Insulated Cable Aluminum Alloy Wire Conductor 1 Year Warranty
