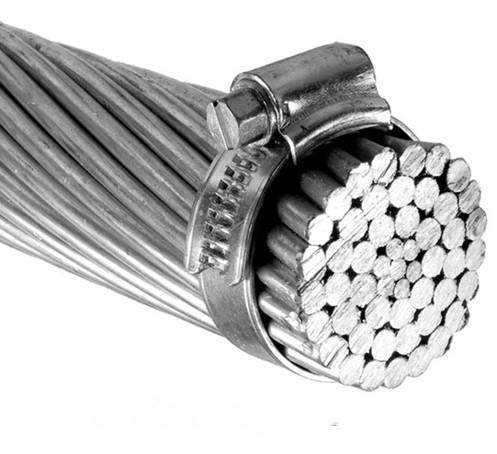

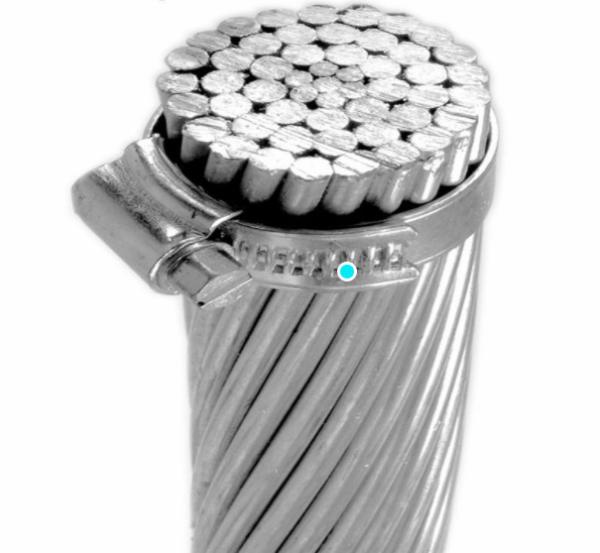

Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
Specifications
Brand Name :
Huanghe
Model Number :
AAC
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Price :
0.1-10USD
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
coils, wooden drums, steel drums or steel-wooden drums
Application :
Overhead
Insulation material :
None, bare
Jacket :
None, Bare
Standard :
ASTM B232, IEC61089, BS215, DIN48204, BS EN50182, GB/T 1179-2008 etc.
Packing :
coils, wooden drums, steel drums or steel-wooden drums
Warranty :
1 Year
Description

Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard

AAC BARE ALUMINUM CONDUCTOR FEATURE

1. High tensile strength

2. Long life

3. Light in weight

4. Suitable for high as well as extra high overhead voltage lines

AAC BARE AlUMINUM CONDUCTOR STANDARD

ASTM B232, IEC61089, BS215, DIN48204, BS EN50182, GB/T 1179-2008 etc.

Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard

AAC All Aluminium Conductor

AAC conductor is also known as all aluminium conductor. AAC conductor is widely used in power transmission lines with various voltage levels. Since the aac bare conductor has such good charactersistics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and is also suitable for laying across rivers and valleys where special geographical teatures exist.

Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard

AAC ALL ALUMINUM CONDUCTOR BARE CONDUCTOR DATA

Code Name Total Area Stranding and Wire Diameter Overall Diameter Linear Mass Nominal Breaking Load Max.D.C. Resistance at 20°c
AWG or MCM mm2 mm mm kg/km daN Ω/km
Peachbell 6 13.29 7/1.554 4.67 37 249 2.1692
Rose 4 21.16 7/1.961 5.89 58 396 1.3624
Iris 2 33.61 7/2.474 7.42 93 597 0.8577
Pansy 1 42.39 7/2.776 8.33 117 732 0.6801
Poppy 1/0 53.48 7/3.119 9.36 147 873 0.539
Aster 2/0 67.42 7/3.503 10.51 186 1100 0.4276
Phlox 3/0 85.03 7/3.932 11.800 234 1347 0.339
Oxlip 4/0 107.23 7/4.417 13.26 296 1698 0.2688
Valerian 250 126.71 19/2.913 14.57 349 2062 0.2275
Sneezewort 250 126.71 7/4.80 14.4 349 2007 0.2275
Laurel 266.8 135.16 19/3.01 15.05 373 2200 0.2133
Daisy 266.8 135.16 7/4.96 14.9 373 2141 0.2133
Peony 300 152 19/3.193 15.97 419 2403 0.1896
Tulip 336.4 170.45 19/3.381 16.91 470 2695 0.1691

Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
