15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN
15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN
15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN
15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN
15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN
15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN
Specifications
Brand Name :
Huanghe
Model Number :
MV Power Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor Core :
Annealed Copper or Hard Drawn Aluminum
Insulation :
Crosslinked Polyethylene (XLPE)
Armoured Types :
DSTA/SWA/AWA or Unarmoured
Outer Sheath :
Polyvinyl Chloride (PVC)
Standard :
BS IEC ASTM DIN, IEC 60502-2, GB12706, IEC60228
Colour :
Black or As Requirement
Packing :
Wooden-steel Drum, Steel Drum, Wooden Drum
Special Requiremets :
Fire-resistant,flame retardant,low smoke halogen free
Sample :
Free Sample
Application :
Underground,Construction,Industrial,power distribution and transmission line
Voltage :
3.6kv to 35kv
Description

15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN

15KV POWER CABLE STANDARD

International: IEC60502-2

National: GB/T 12706.1-2008

Other standards: such as BS, DIN and ICEA, design & manufacture special power cable according to customer’s special request.

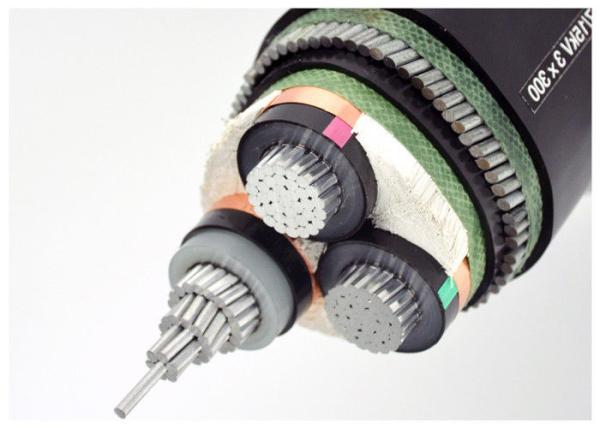

15KV POWER CABLE CONSTRUCTION

Conductor:

Plain annealed stranded circular compacted copper conductor or aluminum (Class 2).

Conductor Screen:

Extruded layer of a cross-linkable semi-conducting compound as a stress control layer.

Insulation:

Extruded layer of cross-linked polyethylene (XLPE).

Insulation Screen:

Extruded layer of a cross-linkable semi-conducting compound firmly bonded to the insulation.

Metallic Screen:

Flat plain copper tape helically applied over the insulation screen with suitable overlap.

Filler:

Non-hygroscopic polypropylene filler suitable for the cable’s operating temperature.

Bedding:

Extruded layer of Polyvinyl chloride (PVC).

Armouring:

Double layer of galvanized steel tapes.

Outer Jacket:

Extruded layer of Polyvinyl chloride (PVC).

15KV POWER CABLE APPLICATION

15kv power cable is used for power distribution networks; also for connection to generation units and plant and process connection. The mv cable could be laid directly in ground, outdoors, indoors and in cable ducts.

15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN

MV POWER CABLE CHARACTERISTICS


Rated voltage U o / U (U m ) 8.7 / 15 (17.5) kV
Impulse test voltage (peak value) 95 kV
Power frequency test voltage for 5 minutes 30.5 kV
Max. conductor operating temperature at Normal conditions 90 °C
Max. conductor operating temperature at Emergency conditions 130 °C
Max. conductor operating temperature at Short circuit conditions 250 °C
Min. bending radius during installation in terms of cable outer diameter 12 Ø

MV POWER CABLE TYPES

Type

Description

Cores

Cross Section

YJV22

Copper conductor/XLPE insulation/Steel Tape Armored/PVC outer sheath Power Cable

1, 3

25~1000mm2

YJV23

Copper conductor/XLPE insulation/Steel Tape Armored/PE outer sheath Power Cable

1, 3

25~1000mm2

ZA-YJV22 ZB-YJV22 ZC-YJV22

Copper conductor/XLPE insulation/Steel Tape Armored flame-retardant Power Cable

1, 3

25~1000mm2

WDZA-YJY23 WDZB-YJY23 WDZC-YJY23

Copper conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable

1, 3

25~1000mm2

15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN

3 CORE 15KV POWER CABLE DATA

15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN

15KV Cross Linked Polyethylene Wire Xlpe Underground Cable BS IEC ASTM DIN
