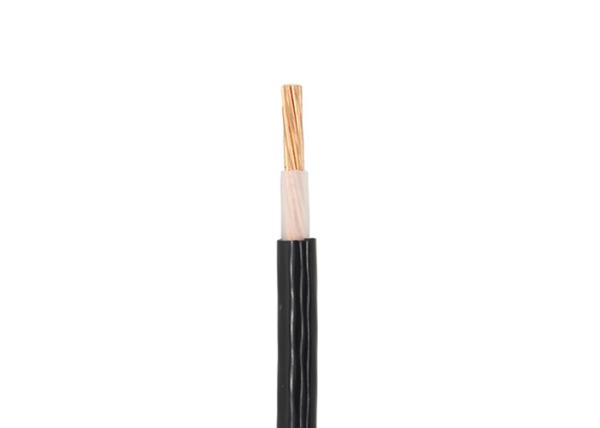

Copper Conductor 1 Core 25mm2 Flexible Armored Cable
Copper Conductor 1 Core 25mm2 Flexible Armored Cable
Copper Conductor 1 Core 25mm2 Flexible Armored Cable
Copper Conductor 1 Core 25mm2 Flexible Armored Cable
Specifications
Brand Name :
CN CABLE
Model Number :
YVZ3V
Place of Origin :
HENAN
MOQ :
1000m
Payment Terms :
L/C, T/T
conductor :
copper conductor
insulation :
XLPE insulated
Dia :
25mm2
Voltage :
600V/1kv
Core number: :
1
outer sheath :
PVC
Description

Standard: IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

Application:
Low Voltage Electric Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Construction:
Conductor: Cu (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC

Features:
1. High quality
2. Strict production process control
3. Years of production experience
4. Strict inspection and test before leaving the factory

Single(1) core, XLPE Insulated Power Cable
Size Cable dia. Cable weight
None- Steel tape armored Steel wire armored None- Steel tape armored Steel wire armored
armored armored
CU AL CU AL CU AL
mm2 mm kg/km
16 9.3 14.1 14.9 204 106 348 251 365 267
25 10.7 15.5 16.3 296 145 459 307 477 326
35 11.7 16.5 17.8 389 179 564 355 610 401
