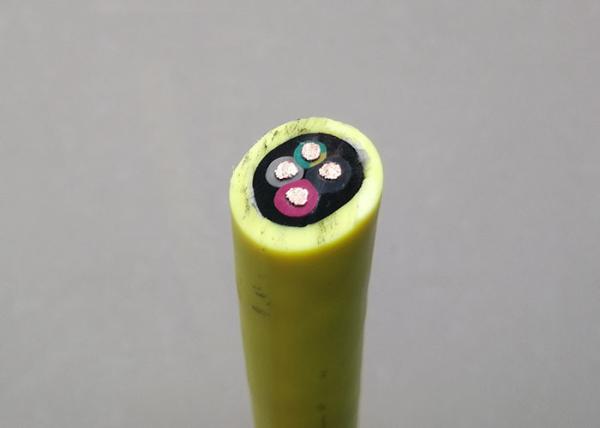

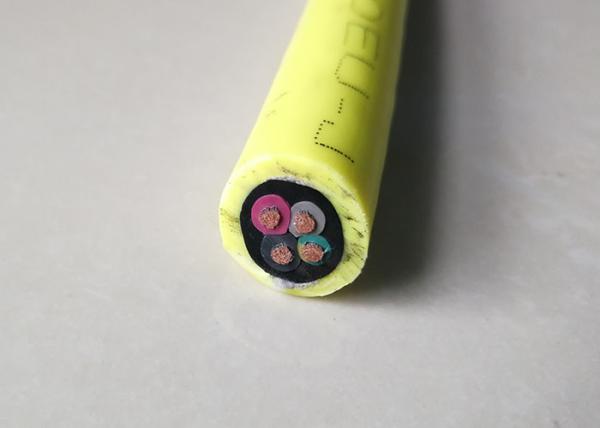

Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable
Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable
Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable
Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable
Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable
Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable
Specifications
Brand Name :
CN CABLE
Model Number :
VDE Cable
Certification :
CE
Place of Origin :
Henan
MOQ :
500meters
Payment Terms :
L/C, T/T
Delivery Time :
30days after payment
Packaging Details :
Iron-wooden drum
Conductors: :
Tinned Copper
Insulation :
EPR rubber
Outer sheath :
CPE rubber
Voltage :
0.6/1kV
Inner sheath :
SR/SBR/PCP/CR
Description

NSSHOEU-O/J 0.6/1kV VDE Heavy Duty Flexible Rubber Mining Cable

Product Description

Application

The cable is used for the connection of mobile mechanical equipment with high mechanical load. It can be used in dry and humid environments, outdoors and in areas with explosion hazards, and is especially suitable for coal mines, quarries and construction sites.

Standard

VDE 0250 Part 812

Features

Heat resistance, abrasion resistance, tear resistance, oil resistance, flame retardant.

Bending radius: 7* outer diameter of cable

Operating temperature range: fixed installation -45℃ to +70℃, mobile installation -35℃ to +70℃.

Technical parameter

NSSHOEU-O

Nominal
Cross-sectional
Area		 Min. Outer Diameter Max. Outer Diameter Approx. Weight
NO. ×MM² MM MM KG/KM
1×16 11 13.0.5.0 260
1×25 13 16 390
1×35 14 17 500
1×50 16 19 680
1×70 18 21 900
1×95 20 24 1150
1×120 23 27 1440
1×150 24 28 1750
1×185 28 31 2300
1×240 32 36 3000
2×1.5 11 14 210
3×2.5 13 16 300

NSSHOEU-J

Nominal
Cross-sectional
Area		 Min. Outer Diameter Max. Outer Diameter Approx. Weight
NO. ×MM² MM MM KG/KM
3×1.5 12 15 240
3×70/35 46 51 4450
3×95/50 54 59 5870
3×120/70 59 64 7340
4×1.5 13 16 280
4×2.5 15 18 400
4×4 17 20 510
4×6 18 21 630
4×10 22 26 950
4×16 28 32 1430
4×25 33 37 2100
4×35 36 40 2650
4×50 42 47 3660
5×1.5 13 16 320
5×2.5 16 19 470
5×4 18 21 600
5×6 20 24 780
5×10 24 28 1130
5×16 29 34 1720
5×25 35 39 2470
6×2.5 13 16 300
7×1.5 16 19 470
7×2.5 18 21 600
10×1.5 19 22 570
10×2.5 21 25 790
12×2.5 22 26 860
18×2.5 28 32 1240


Related Cables

H07RN-F Cable 6/10KV Flat Trailing Cable Cable For Coal Mining Machine
Rubber Mining VFD Cables Rubber Mining Cable Cables For Cranes

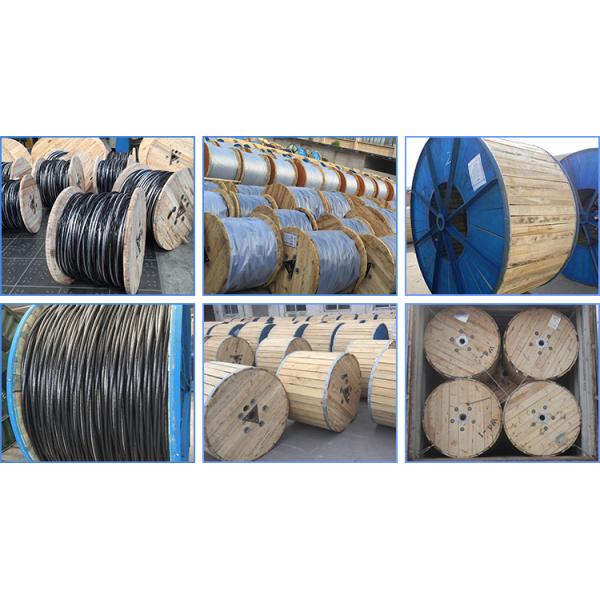

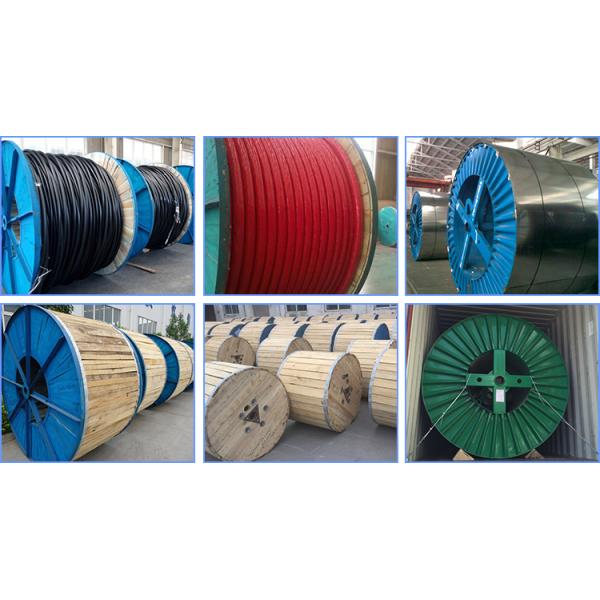

Packaging & Shipping
