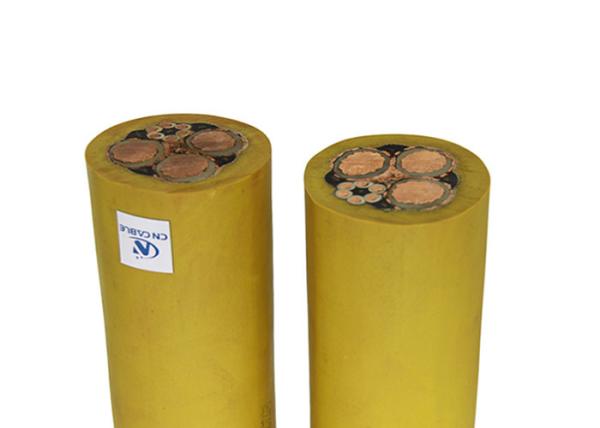

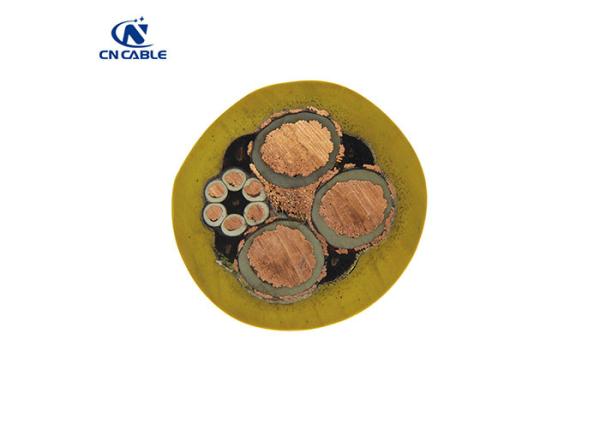

Coal Mining MCP 0.66KV 1.14KV PCG Tinned Copper Cable
Coal Mining MCP 0.66KV 1.14KV PCG Tinned Copper Cable
Coal Mining MCP 0.66KV 1.14KV PCG Tinned Copper Cable
Coal Mining MCP 0.66KV 1.14KV PCG Tinned Copper Cable
Specifications
Brand Name :
CN CABLE
Model Number :
Mining cable
Certification :
CE
Place of Origin :
Henan
MOQ :
500meters
Payment Terms :
L/C, T/T
Delivery Time :
30days after payment
Packaging Details :
Iron-wooden drum
Conductors: :
Copper wire, class 5
Screen :
Tinned copper wire braiding
Insulation :
EPR insulated
Ground conductor :
Tinned copper wire
Voltage :
0.66/1.14KV
Control conductor :
Tinned copper wire
Color :
Yellow
Description

MCP 0.66/1.14KV PCG Tinned Copper Conductor CPE Rubber Shielded Flexible Power Cable For Coal Mining Machine

Product Description

Application

MCP cable is a series of rubber sheathed flexible cables for mining. Applicable to: mobile coal mining units and other equipment with rated voltages of 0.66/1.14KV and below are used for connecting power lines.

Type Application
MC-0.38/0.66kv mobile coal mining units and other equipment with rated voltages of 0.38/0.66kV
MCP-0.38/0.66kv mobile coal mining units and other equipment with rated voltages of 0.38/0.66kV
MCP-0.66/1.14kv mobile coal mining units and other equipment with rated voltages of 0.66/1.14kV
MCP-1.9/3.3kv mobile coal mining units and other equipment with rated voltages of 1.9/3.3kV

Standard

MT818.5-1999

Features

Rated voltage Uo/U is 0.38/0.66KV and 0.66/1.14KV

The long-term working temperature of the cable conductor is 65℃

The minimum bending radius of the cable is 6 times the cable diameter

Flame-retardant , heat-resisting , oil resistant, resistance to mechanical impact and extrusion

Technical parameter

MCP-0.66/1.14kv Shielded Rubber Flexible Cable
Core number nominal sectional area of conductor(mm2) Nominal thickness(mm) O.D. Of cable(mm) Calculated weight of cable
Power core Earthing core Power core insulation External sheath MCP-0.66/1.14 Kg/km
3x4 1x4 1.6 4.5 24.0~26.5 1100
3x6 1x6 1.6 4.5 25.2-27.8 1300
3x10 1x6 1.8 5.0 31.2-34.0 1850
3x16 1x6 1.8 5.0 33.5-36.5 2150
3x25 1x6 2.0 5.0 38.0-41.5 2680
3x35 1x6 2.0 6.0 47.8-51.0 3560
3x50 1x10 2.2 7.0 53.5-58.9 4660
3x70 1x16 2.2 7.0 58.9-63.0 5770
3x95 1x25 2.4 7.0 64.9.-71.4 7270
3x120 1x35 2.4 7.0 69.0~73.4 8400
3x150 1x70 2.6 7.0 75.0~80.0 10772
3x180 1x95 2.8 7.5 79.0~84.0 12520

LV Related Cables

Packaging & Shipping

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port
