XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
Specifications
Brand Name :
CN CABLE
Model Number :
N2XS(FL)2Y
Certification :
IEC
Place of Origin :
HENAN
MOQ :
1000meters
Payment Terms :
L/C, T/T
Supply Ability :
1000000meters per month
Delivery Time :
30days after payment
Packaging Details :
drum
conductor :
Stranded copper conductor
screen :
Semi conductive swellable tape
insulation :
XPLE
matel screen :
Copper wire screen
tape :
Swellable tape
armoured :
Aluminum tape
outer sheath :
PE
Description

N2XS(FL)2Y 26/45-47 kV TS 10382 IEC 60840

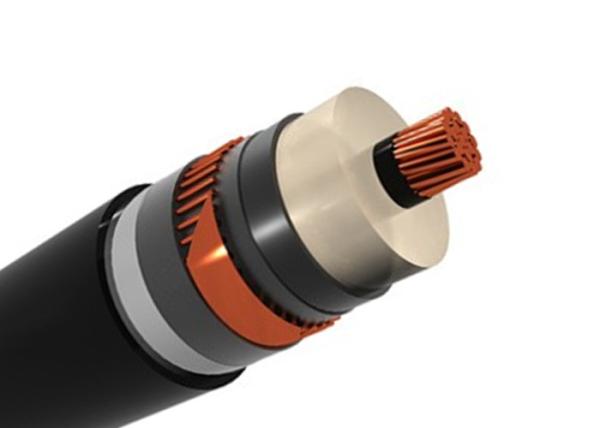

Structure

1. Stranded copper conductor

2. Inner semi conductive layer

3. XPLE insulation

4. Outer semi conductive layer

5. Semi conductive swellable tape

6. Copper wire screen

7. Swellable tape

8. Aluminum tape

9. PE outer sheath

Technical Data

Permissible operating temp.: 90°C

Max. short circuit temp.: 250°C (+≤ 5 sec.)

Installation temp. min: -20°C

XPLE Insulation Armoured Power Cable With Stranded Copper Conductor IEC
Applications
These cables used in energy networks with sudden load changes laid in residential or industrial areas, underground or in ducts. If the cables gets water inside due to the mechanical damages swellable tapes prevent the water.
Rated Cross
Section		 Overall Diameter
Of Cable		 Current Carrying
Capacity		 Operating
Inductance		 Operating
Capacity		 Conductor DC
Resistance at (20°C)		 Net
Weight
mm2 mm Air 30°C Ground 20°C MH/Km µF/km Ohm/Km Kg/Km
1x70/16 41,60 347 304 0,478 0,108 0,2680 1970
1x95/16 43,40 420 360 0,453 0,119 0,1930 2280
1x120/16 44,80 483 408 0,436 0,128 0,1530 2570
1x150/25 46,20 540 445 0,422 0,137 0,1240 2970
1x185/25 48,00 614 498 0,406 0,148 0,0991 3360
1x240/25 50,30 718 569 0,389 0,162 0,0754 3970
1x300/25 52,60 813 633 0,374 0,176 0,0601 4600
1x400/35 55,70 904 686 0,358 0,195 0,0470 5630
