Separation Sheath Pvc Power Cable 8.7/15 KV TS IEC 60502-2 Indoor Installation
Separation Sheath Pvc Power Cable 8.7/15 KV TS IEC 60502-2 Indoor Installation
Separation Sheath Pvc Power Cable 8.7/15 KV TS IEC 60502-2 Indoor Installation
Separation Sheath Pvc Power Cable 8.7/15 KV TS IEC 60502-2 Indoor Installation
Separation Sheath Pvc Power Cable 8.7/15 KV TS IEC 60502-2 Indoor Installation
Separation Sheath Pvc Power Cable 8.7/15 KV TS IEC 60502-2 Indoor Installation
Specifications
Brand Name :
CN CABLE
Model Number :
N2XSEYEGbY
Certification :
VDE
Place of Origin :
Henan
MOQ :
1000m
Price :
us$10per meter
Payment Terms :
L/C, T/T
Supply Ability :
100000m per month
Delivery Time :
30days after payment
Packaging Details :
drum
conductor :
Stranded copper
screen :
Outer semi - conductive layer
insulation :
XLPE
tape :
Semi- conductive tape
Metal screen :
Copper wire screen
Filler :
Filler
sheath :
Separation
armoured :
Galvanized steel tape
outer sheath :
PVC
Description

YXC8VZ3V-R 8.7/15 kV TS IEC 60502-2 N2XSEYFGbY 8.7/15 kV VDE 0276

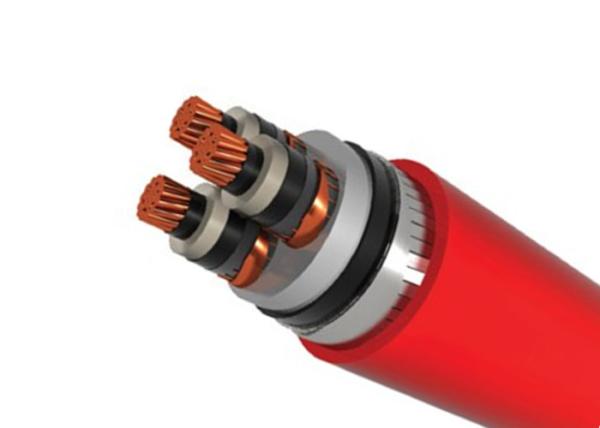

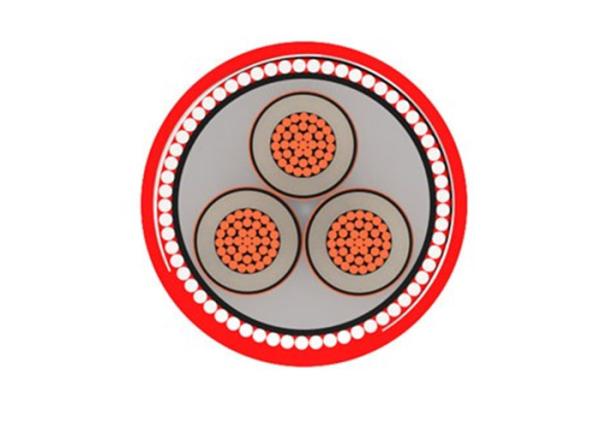

Structure

1. Stranded copper conductor

2. Inner semi-conductive

3. XLPE insulation

4. Outer semi - conductive layer

5. Semi- conductive tape

6. Copper wire screen

7. Filler

8. Separation sheath

9. Galvanized flat steel wire

10. Galvanized steel tape

11. PVC outer sheath

Technical Data

Maximum operating temp.:90°C

Max. short circuit temp.:250°C (+≥ 5 sn)

Installation temperature Min:-5 °C

Standards: TS IEC 60502-2 VDE 0276
Applications
They are used in cable ducts, outdoor and indoor installations, under ground where the short circuit levels are high and industrial areas fed by electrical also these cables use where there is risk of mechanical damage.
Rated Cross
Section		 Overall Diameter
Of Cable		 Current Carrying
Capacity		 Operating
Inductance		 Operating
Capacity		 Conductor DC
Resistance at (20°C)		 Net
Weight
mm2 mm Air (A) Ground (A) MH/Km µF/Km Ohm/Km Kg/Km
3x25/16 53.00 143 148 0.42 0.15 0.727 4770
3x35/16 55.50 173 178 0.40 0.16 0.524 5320
3x50/16 59.00 206 210 0.38 0.17 0.387 6130
3x70/16 63.00 257 256 0.36 0.19 0.268 7180
3x95/16 67.00 313 307 0.34 0.22 0.193 8420
3x120/16 71.00 360 349 0.33 0.24 0.153 9630
3x150/25 73.50 410 392 0.32 0.26 0.124 10830
3x185/25 79.00 469 443 0.30 0.28 0.0991 12800
3x240/25 86.50 553 513 0.29 0.31 0.0754 15500
3x300/25 90.00 635 576 0.28 0.34 0.0601 17750
3x400/35 97.00 731 650 0.27 0.38 0.0470 21420
