Specifications
Brand Name :
CN Cale Group
Model Number :
Type 61A Mine Cable
Certification :
ISO9001, CE
Place of Origin :
Henan, China
MOQ :
1000m
Price :
$5 - $100/ Meter
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
1-4 weeks
Packaging Details :
Roll/Wooden Reel/Iron-wooden Reel/Steel Reel
Application :
mining cable, Mining cable
Cable type :
Type 61A 0.64/1.1 kV
Conductor :
Copper
Insulation :
Rubber
Rate voltage :
640/1100V
Standard :
SANS1520-1
Description

Flexible Copper Screened Mining Cables Type 61A 0,64/1,1kV Rubber Mine Cable


Product Description

1.Application
Electrically driven machines , movable electric apparatus in hazardous areas .Not for reeling purposes. Other industrial applications.
2.Applicable Standard
SANS1520-1

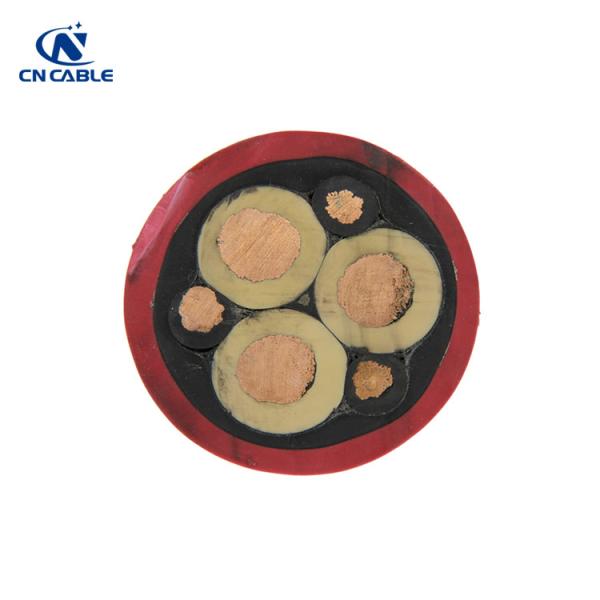

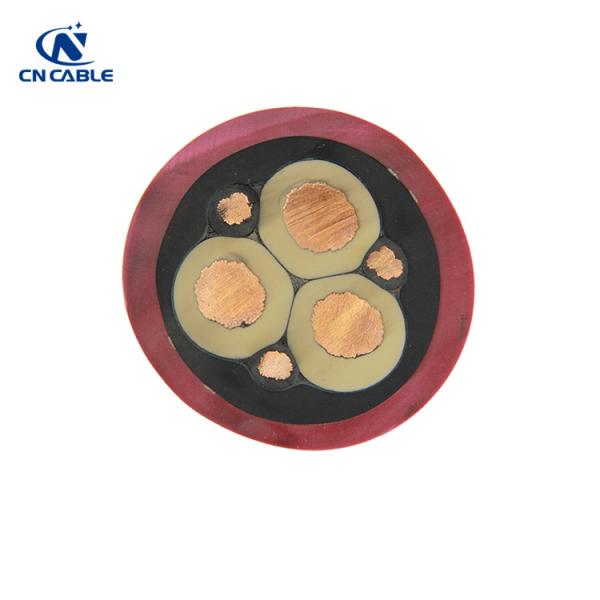

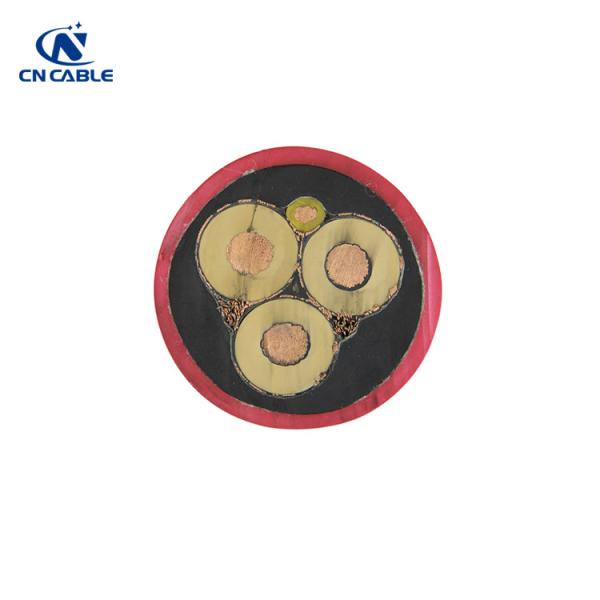

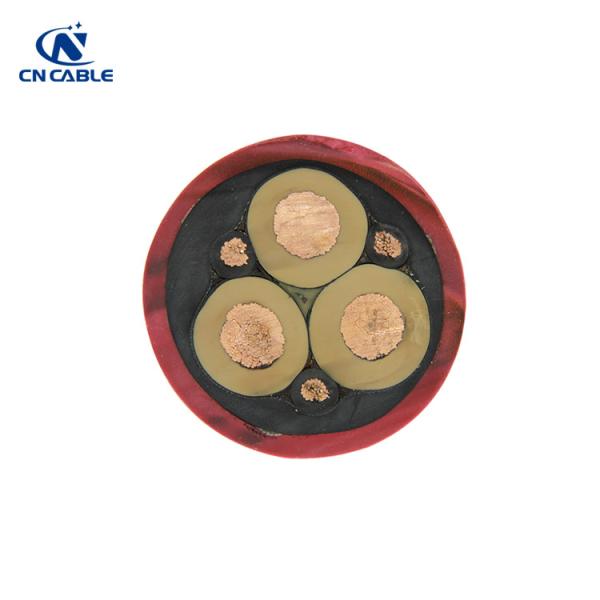

3.Cable Structure:
-Conductor: Flexible class 5 comply to SANS 1411 - 1 from tinned annealed copper wires left lay with semi-conducting rubber screen .
-Insulation: Ethylene propylene thermosetting compound type RD 3 comply to SANS 1411-3 and a strippable semi-conducting core screen (triple extruded)
-Core of cable:Three tinned copper braided screened power cores and three unscreened pilot cores one in each interstice laid up in the right hand lay around semi-conductive cradle centre (only16 mm2 around rubber (RD1) filler centre ) .
-Inner sheath:Poly-chloroprene thermosetting compound type RS 6 comply to SANS 1411-3 .
-Re-enforcement:An open nylon braid . Minimum 16 of nylon strings .
-Outer sheath:Poly-chloroprene thermosetting compound type RS 6 comply to SANS 1411-3 .
-Colour of sheath:Black .

Data sheet

Physical Properties
Power cores
Conductor sizes (mm2)162535507095120150
Maximum wire diameter ( mm)0.410.410.410.510.510.510.510.51
Approx. conductor diameter ( mm)5.36.88.510.311.913.515.517.3
Maximum screen wire diameter (mm)0.310.310.310.310.310.310.310.31
Braided screen filling factor (%)8080808080808080

Approx. summarized screen cross-section for power cores
(weighing method) (mm2)

2225273237434752
Pilot cores
Conductor sizes ( mm2)1010161616161616
Maximum wire diameter ( mm)0.410.410.410.410.410.410.410.41
Approx. conductor diameter ( mm)4.24.25.35.35.35.35.35.3
Lay Ratio (maximum) (x PCD)88888888

Cable diameter

Approx. (mm)

3138434752586370

Cable mass (approx.) (kg/m)

1.83.13.64.55.67.08.410.2

Minimum bending radius (mm)

200240260290320350390430

Maximum recommended tension (kN)

0.71.11.62.33.24.35.46.8



Packing&Shipping

Packing material:

Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.

Shipping:

Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
