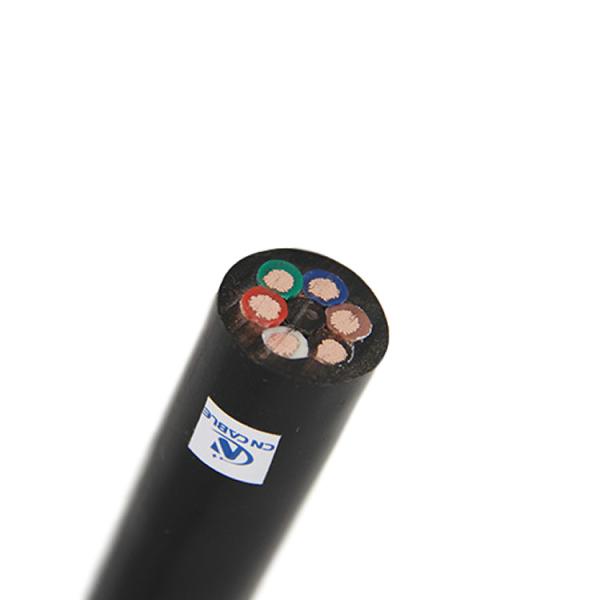

Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Copper Wire Multicore Control Silicone Rubber Cable 1.5mm2
Specifications
Brand Name :
CN Cable
Model Number :
Control cable
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
500m
Price :
$0.39 - $20.00/ Meter
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Wooden Reel, Iron-wooden Reel, Steel Reel
Standard :
GB/T9330, IEC60502
Color :
According to customer's requirement
Conductor :
Solid or Stranded or Flexible copper conductor
Insulation :
PVC/XLPE/Rubber/Silicon
Jacket :
PVC/PE/Rubber
Description

Electrical 1.5 mm2 Copper Wire Flexible Multicore Control Cable PVC/XLPE/Rubber/Silicon Insulation

Product Description

Application
Suitable for the interconnection in controlling, protecting and measuring system.


Standard
GB/T9330 , IEC60502

Construction
Conductor: Annealed or tinned copper wire, solid ,stranded or flexible as per IEC60228.
Insulation: PVC/XLPE/Rubber/Silicon

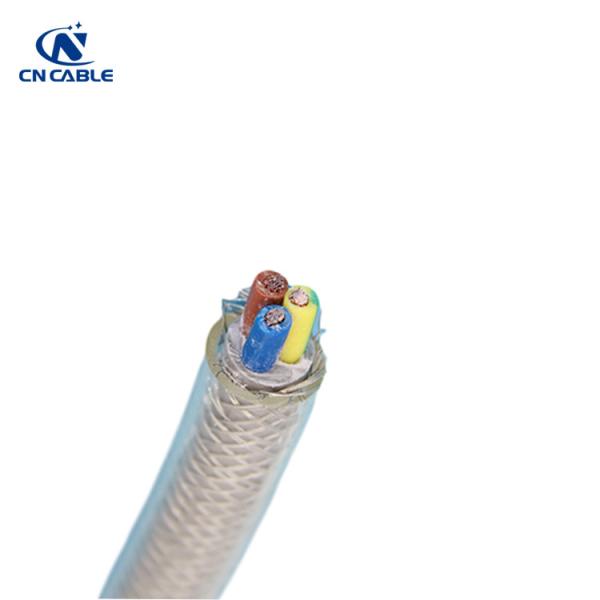

Metallic Shield (optional) : Copper tape/Annealed or tinned Copper wire braiding/Al-polyester tape
Armor (optional) : Steel tape or Steel wire
Outer sheath(jacket): PVC/PE/Rubber
Core identification: Color code or print number on insulation

Product date sheet

Identified by insulation Material
Type Characteristic
PVC Insulated Control Cables Operation temperature 70℃
XLPE Insulated Control Cables Operation temperature 90℃
Rubber Insulated Control Cables Operation temperature 70℃
Silicon Insulated Control Cables Operation temperature 180℃

Copper conductor, PVC Insulation PVC Sheath ,Control Cable
Cable Size Conductor Nominal Insulation thickness Nominal Jacket thickness Approx. Overall Dia. Approx. Cable Weight
Core x Cross-section Stranding No. Approx. Stranded Dia.
mm2 pcs mm mm mm mm kg/km
2*1.5 7 1.50 0.7 1.2 8.7 86
3*1.5 7 1.50 0.7 1.2 9.2 110
4*1.5 7 1.50 0.7 1.2 10 136
5*1.5 7 1.50 0.7 1.2 10.8 162
6*1.5 7 1.50 0.7 1.2 11.7 189
7*1.5 7 1.50 0.7 1.2 11.7 210
8*1.5 7 1.50 0.7 1.2 13.1 239
10*1.5 7 1.50 0.7 1.5 15.4 313
12*1.5 7 1.50 0.7 1.5 15.8 358
14*1.5 7 1.50 0.7 1.5 16.6 407
16*1.5 7 1.50 0.7 1.5 17.5 456
19*1.5 7 1.50 0.7 1.5 18.4 526
24*1.5 7 1.50 0.7 1.7 21.8 674
27*1.5 7 1.50 0.7 1.7 22.3 742
30*1.5 7 1.50 0.7 1.7 23.1 813
37*1.5 7 1.50 0.7 1.7 24.9 977
44*1.5 7 1.50 0.7 1.7 27.9 1151
48*1.5 7 1.50 0.7 1.7 28.4 1241
52*1.5 7 2.0 0.7 1.7 29.2 1333
61*1.5 7 2.0 0.7 2 31.6 1582
2*2.5 7 2.0 0.8 1.2 10 128
3*2.5 7 2.0 0.8 1.2 10.6 164
4*2.5 7 2.0 0.8 1.2 11.5 203
5*2.5 7 2.0 0.8 1.2 12.6 246
6*2.5 7 2.0 0.8 1.5 14.3 309
7*2.5 7 2.0 0.8 1.5 14.3 325
8*2.5 7 2.0 0.8 1.5 15.9 391
10*2.5 7 2.0 0.8 1.5 18 463
12*2.5 7 2.0 0.8 1.5 18.6 533
14*2.5 7 2.0 0.8 1.5 19.5 597
16*2.5 7 2.0 0.8 1.7 20.9 690
19*2.5 7 2.0 0.8 1.7 22.1 800
24*2.5 7 2.0 0.8 1.7 25.7 997
27*2.5 7 2.0 0.8 1.7 26.3 1102
30*2.5 7 2.0 0.8 1.7 27.3 1211
37*2.5 7 2.0 0.8 1.7 29.4 1462
44*2.5 7 2.5 0.8 2 33.7 1772
48*2.5 7 2.5 0.8 2 34.3 1912
52*2.5 7 2.5 0.8 2 35.2 2054
61*2.5 7 2.5 0.8 2.2 37.8 2411
2*4 7 2.5 0.8 1.2 11.1 170
3*4 7 2.5 0.8 1.2 11.7 220
4*4 7 2.5 0.8 1.2 12.8 277
5*4 7 2.5 0.8 1.5 14.6 356
6*4 7 2.5 0.8 1.5 15.9 420
7*4 7 2.5 0.8 1.5 15.9 447
8*4 7 2.5 0.8 1.5 17.8 538
10*4 7 2.5 0.8 1.5 20.1 640
12*4 7 2.5 0.8 1.7 21.2 760
14*4 7 2.5 0.8 1.7 22.3 855
16*4 7 2.5 0.8 1.7 23.5 964
19*4 7 2.5 0.8 1.7 24.8 1122
24*4 7 2.5 0.8 1.7 29 1402
27*4 7 2.5 0.8 1.7 29.6 1555
30*4 7 2.55 0.8 2 31.3 1754
37*4 7 2.55 0.8 2 33.8 2123
44*4 7 2.55 0.8 2.2 38.4 2542
48*4 7 2.55 0.8 2.2 39.1 2747
52*4 7 2.55 0.8 2.2 40.2 2955
61*4 7 2.55 0.8 2.2 42.7 3425
