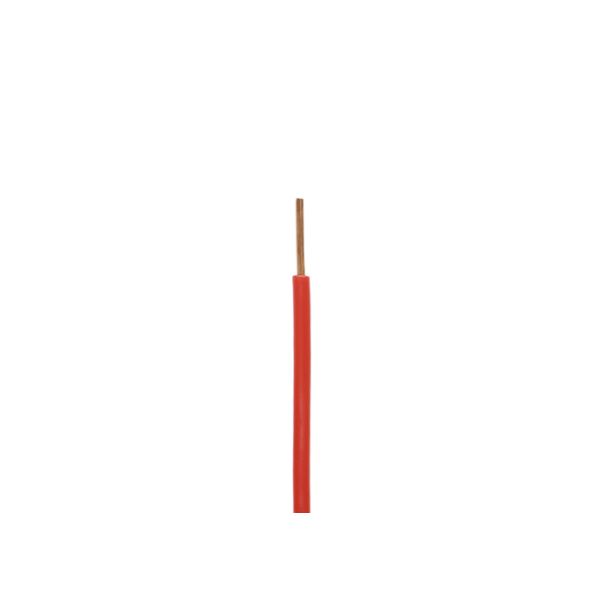

VDE 0295 2000V 2500V Solid Copper Wire PVC Insulated Cable
VDE 0295 2000V 2500V Solid Copper Wire PVC Insulated Cable
Specifications
Brand Name :
CN CABLE
Model Number :
H05V-U ,H07V-U
Certification :
VDE 0281-3 , VDE 0295 ,IEC 60228
Place of Origin :
Henan ,China
MOQ :
1000meters
Conductor :
Solid copper wire
Insulated :
PVC
Colour :
Black/Brwon/Blue/Green/Grey/Orange/Red/Yellow ,etc
Application :
Fix installation
Type :
Low Voltage
Jacket :
N.A.
Description

Electric wire and PVC Insulated cable H05V-U / H07V-U

Application:

H05V-U cables are used for protected fixed installations inside appliances and in or on lighting fittings. in dry rooms, in production facilities, switch and distributor boards, in pipes, under and surface mounting of plasters.

Application:

H07V-U Cables are used for indoor fixed installations in dry locations, in switchboards and distributors, under and surface mounting of plasters or on suitably objects. They are not allowed to install for direct laying in cable trays, channels or tanks.

Production Standard:

VDE 0281-3 , VDE 0295 ,IEC 60228

Cable Construction:

Conductor: Solid bare copper wire

Insulation: PVC

Color available: Black/Brwon/Blue/Green/Grey/Orange/Red/Yellow ,etc

Technical Characteristics:

Rated voltage: 300/500v (H05V-U)/ 450/750v (H07V-U)

Test voltage: 2000V(H05V-U)/2500V (H07V-U)

Flexing bending radius: 15 x D

Static bending radius: 15 x D

Temperature range: -5℃ to +70℃

Short circuit temperature: 160 ℃

Flame retardant: IEC 60332.1

Conductor size Conductor PVC Insulation Thickness Cable overall Dia.

Weight

kg/km
Stranding no. Single Wire dia. Dia.
AWG MM2 / mm mm mm mm
20 0.51 1 0.81 0.81 0.6 2 9
18 0.81 1 1.02 1.02 0.6 2.2 12
16 1.31 1 1.3 1.3 0.7 2.7 19
14 2.07 1 1.63 1.63 0.8 3.2 28
12 3.33 1 2.06 2.06 0.8 3.7 41
10 5.26 1 2.59 2.59 0.8 4.2 60
-- 0.5 1 0.80 0.80 0.6 2 8
-- 0.75 1 0.98 0.98 0.6 2.2 12
-- 1 1 1.13 1.13 0.6 2.3 14
-- 1.5 1 1.38 1.38 0.7 2.8 20
-- 2.5 1 1.78 1.78 0.8 3.4 32
-- 4 1 2.26 2.26 0.8 3.9 48
