Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable
Specifications
Brand Name :
CN CABLE
Model Number :
MV CABLE
Certification :
IEC
Place of Origin :
Henan
MOQ :
1000meters
Price :
USD 3-50/m
Payment Terms :
L/C, T/T
Delivery Time :
20 days
Packaging Details :
wooden drum. iron-wooden drum
Conductor :
Class 2 Stranded Aluminum Conductor
Insulation :
XLPE
Screen :
Copper Wires and Equalising Copper Tape
Separator :
Binding Tape
Sheath :
Medium Density Polyethylene
Description

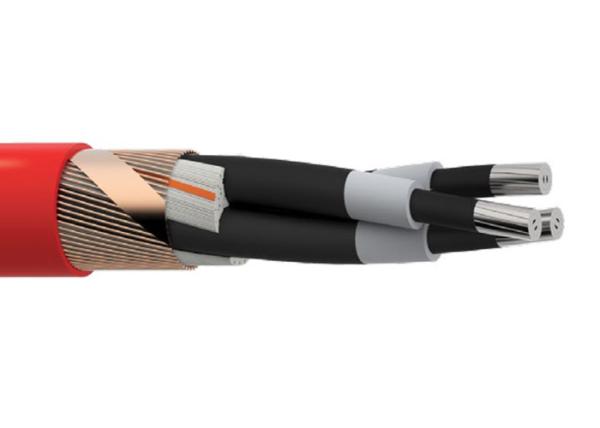

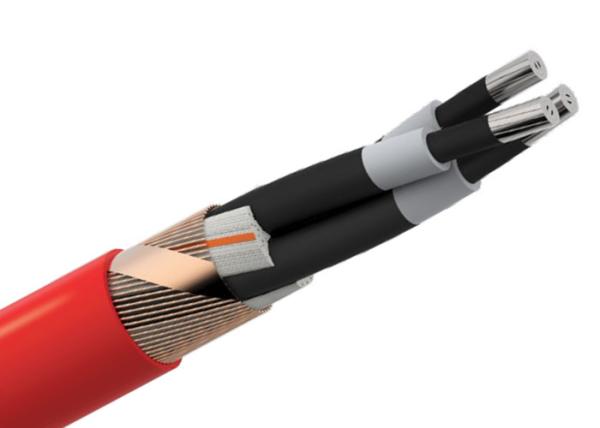

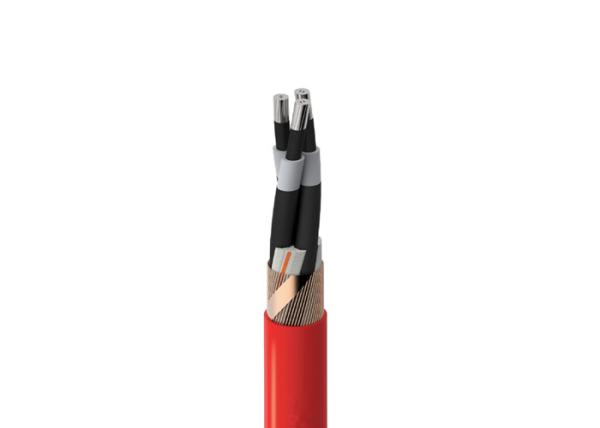

Three Core Unarmoured MV Power Cable Aluminum Conductor Medium Voltage Power Cable

APPLICATION:
Medium voltage aluminum power cable be used for connections from existing grid to new sub-main developments.

CONSTRUCTION
Conductor
Class 2 Stranded Aluminum Conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper Wires and Equalising Copper Tape
Separator
Binding Tape
Sheath
MDPE (Medium Density Polyethylene)

CHARACTERISTICS
Voltage Rating (Uo/U)(Um)
6.35/11 (12)kV
Temperature Rating
0°C to +90°C
Sheath Colour
Red

DIMENSIONS

NO. OF CORES NOMINAL CROSS
SECTIONAL AREA
mm2		 NOMINAL AREA OF
METALLIC SCREEN
mm2		 NOMINAL OVERALL
DIAMETER OF CABLE
(OR TRIPLEX GROUP
IF APPLICABLE)
mm2		 NOMINAL WEIGHT
OF CABLE
(OR TRIPLEX GROUP
IF APPLICABLE)
kg		 MINIMUM
BENDING
RADIUS
mm		 MAXIMUM
PULLING
TENSION
kg
3
3
3		 150
240
300		 60
60
60		 61
70
75		 3280
4380
4990		 490
560
600		 13500
21600
27000

ELECTRICAL CHARACTERISTICS

NOMINAL CROSS
SECTIONAL AREA
mm2		 MAXIMUM DC
RESISTANCE OF
CONDUCTOR
AT 20°C
ohms/km		 MAXIMUM AC
RESISTANCE OF
CONDUCTOR
AT 20°C
ohms/km		 REACTANCE AT 50HZ
ohms/km		 CAPACITANCE
(µf/km)		 1 SECOND SHORT
CIRCUIT RATING OF
CONDUCTOR
kA		 1 SECOND SHORT
CIRCUIT RATING OF
METALLIC SCREEN
kA
150
240
300		 0.206
0.125
0.100		 0.265
0.161
0.130		 0.091
0.085
0.084		 0.33
0.41
0.44		 14.2
22.7
28.3		 9.3
9.3
9.3


CURRENT CARRYING CAPACITY

NOMINAL CROSS SECTIONAL AREA
mm2		 DIRECT BURIED
Amps		 IN DUCTS
Amps		 IN AIR
Amps
150
240
300		 295
390
435		 255
340
380		 335
450
510
