Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Durable PVC Insulated Cable Unarmoured LSZH Cable NF M 87-202 Certification
Specifications
Brand Name :
CN CBALE
Model Number :
PVC CABLE
Certification :
NF M 87-202, UTE C 32-014, NF C 32-020, BS EN/IEC 60331-21, BS EN/IEC 60332-1, BS EN/IEC 60332-3-24
Place of Origin :
Henan
MOQ :
1000meters
Price :
USD1-10/m
Payment Terms :
L/C, T/T
Supply Ability :
1000m/day
Delivery Time :
20days
Packaging Details :
wooden drum
Conductor :
Class 1 solid copper conductor or Class 2 stranded copper conductor
Insulation :
PVC
Individual Binder Tape :
Polyester Tape
Individual Screen :
Aluminium/Polyester Tape
Individual Sheath :
PVC
Overall Binder Tape :
Polyester Tape
Collective Screen :
Aluminium/Polyester Tape
Sheath :
PVC
Description

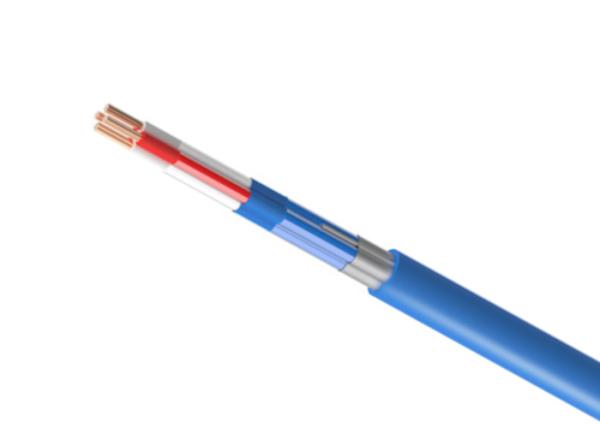

NF M 87 - 202 EISF Individually and Collectively Screened, Unarmoured, LSZH Cable

APPLICATION:

These cables are designed for safe use in petroleum and petrochemical units particularly for the transmission of AC or DC analogue signals. Suitable for aliphatic hydrocarbons resistance applications

CONSTRUCTION:
Conductor
Class 1 solid copper conductor according to UTE C 32-014
Class 2 stranded copper conductor according to UTE C 32-014
Insulation
PVC (Polyvinyl Chloride) according to NF C32-020
Individual Binder Tape
PET (Polyester Tape)
Individual Screen
AL/PET (Aluminum/Polyester Tape)
Individual Sheath
PVC (Polyvinyl Chloride) according to NF C32-020
Overall Binder Tape
PET (Polyester Tape)
Collective Screen
AL/PET (Aluminum/Polyester Tape)
Sheath
PVC (Polyvinyl Chloride) according to NF C32-020

CHARACTERISTICS:
Voltage Rating (Uo/U)
300/500V
Installation Temperature Range
+5°C to +50°C
Operating Temperature
+90°C
Core Identification
Pairs: White and Red numbered
Triples: Blue White and Red numbered
Sheath Color
Light Blue

DIMENSIONS

P = Pairs, Q = Quad, T = Triple

NO. OF
PAIRS/TRIPLE		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL OVERALL
DIAMETER
mm
1P
1P
1P
1T
1T
1T
2P(Q)
2P(Q)
2P(Q)
2T
2T
2T
3P
3P
3P
3T
3T
3T
7P
7P
7P
7T
7T
7T
12P
12P
12P
12T
12T
12T
19P
19P
19P
19T
19T
19T
27P
27P
27P
27T
27T
27T		 0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5
0.5
0.88
1.5		 6.1
7.4
8.3
6.3
7.7
8.7
6.7
8.5
9.4
10.9
14.1
16.1
11.1
14.3
16.2
11.6
15
17.1
15.2
19.5
22.2
15.9
25
23.8
20.6
26.4
30.2
21.6
27.8
31.9
24.7
31.2
35.7
25.9
32.9
37.7
29.7
37.7
43.3
31.2
39.8
45.8

CONDUCTORS

NOMINAL CROSS
SECTIONAL AREA
mm²		 CONDUCTOR
CLASS		 MAXIMUM DC RESISANCE
OF CONDUCTOR AT 20°C
ohms/km
0.5
0.88
1.5		 1
2
1		 37.9
21.6
12.5


ELECTRICAL CHARACTERISTICS

NOMINAL CROSS
SECTIONAL AREA
mm²		 CONDUCTOR
CLASS		 MAXIMUM MUTUAL CAPACITANCE
Between
Conductors
pF/m		 Between Conductors
and Screens
pF/m
0.5
0.88
1.5		 1
2
1		 160
145
85		 230
210
180
