Specifications
Brand Name :
CN CABLE
Model Number :
dual TEL
Certification :
CE
Place of Origin :
Henan
MOQ :
1000meters
Delivery Time :
20days after payment
Packaging Details :
wooden- drum
conductor :
copper
insulation :
Flame retardant polyolefin.
Color identification :
grey and black
Shield :
AL/PET tape with annealed aluminum wires
Sheath: :
Flame retardant, black polyolefin
Description

Dual conductor maximum rated voltage 600v TEL cable use for communication

Application

Halogen free, flame retardant and shielded cable for power supply to radio and other telecom equipment. Sunlight resistant per UL 1581 sec 1200, not for direct burial. CPR and UL listed. Indoor and outdoor use.

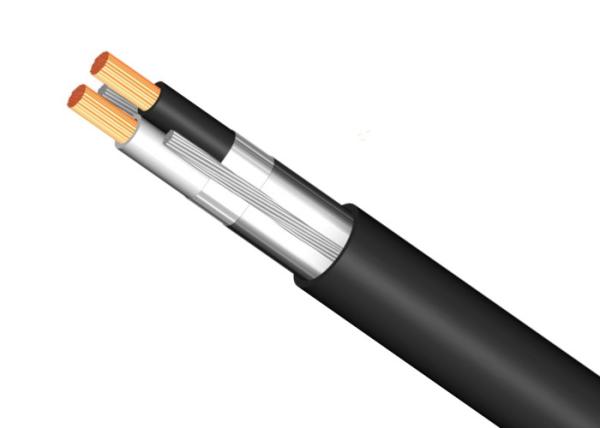

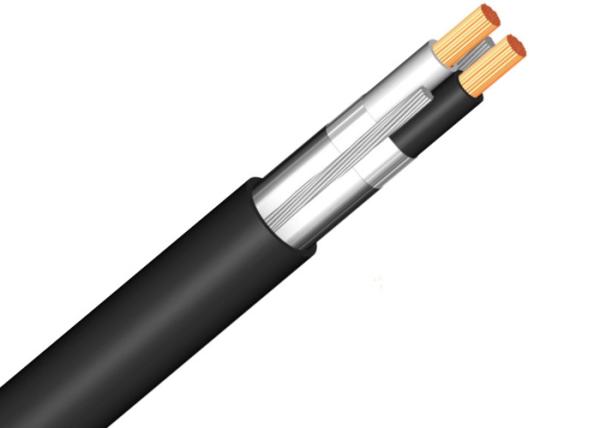

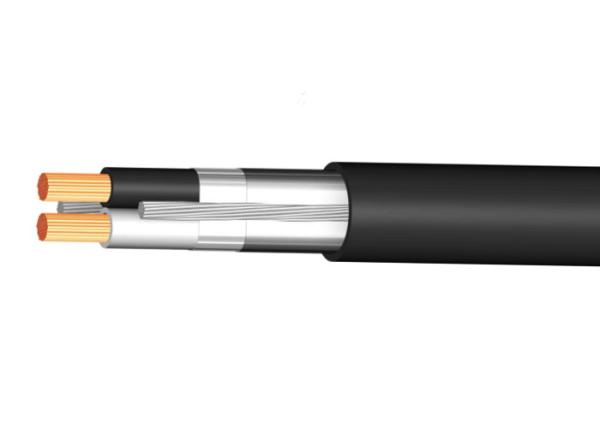

Construction:
1. Conductor: Stranded, annealed copper wires class 5IEC 60228.
2. Insulation: Flame retardant polyolefin.

Color identification: grey and black.
3. Shield: AL/PET tape with annealed aluminum wires. Max. resistance 4.95 Ω/km.
4. Sheath: Flame retardant, black polyolefin.

Properties:
Rated voltage: Max. 600 V

Fire classification IEC 60332-3-24 (Cat C)
UL 1685, Vertical Tray
CPR Class Dca
Minimum operating temperature: -20°C(-40°C when fixed)
Fulfils low voltage directive, CE: Yes
Maximum operating temperature+90°C

Fulfils RoHS: Yes
Minimum bending radius :5 x Outer diameter

Fulfils REACH: Yes

Dual Conductor Maximum Rated Voltage 600V TEL Cable Durable For Communication

Technical data:

No. of cores and cross-section

mm2

Outer Diameter

mm

Cable Weight

Kg/km

Effective resistance of conductor and shield

Ω/km

Inductance

μH/m
2*2.5(2*14AWG) 7.7 91 7.98 0.6
2*4(2*12AWG) 8.6 124 4.95 0.6
2*6(2*10AWG) 9.4 160 3.30 0.6
2*10(2*8AWG) 10.7 237 1.91 0.6
2*16(2*6AWG) 12.5 346 1.21 0.6
