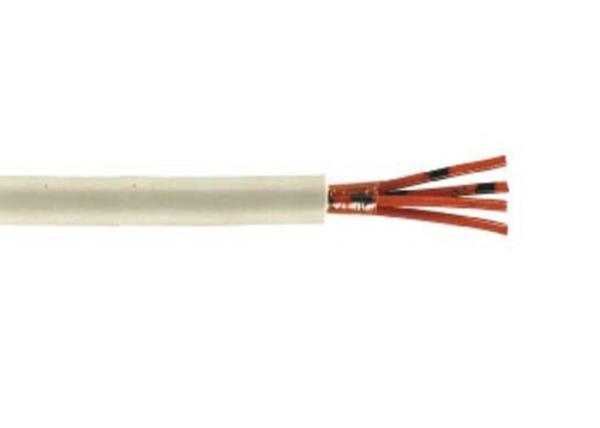

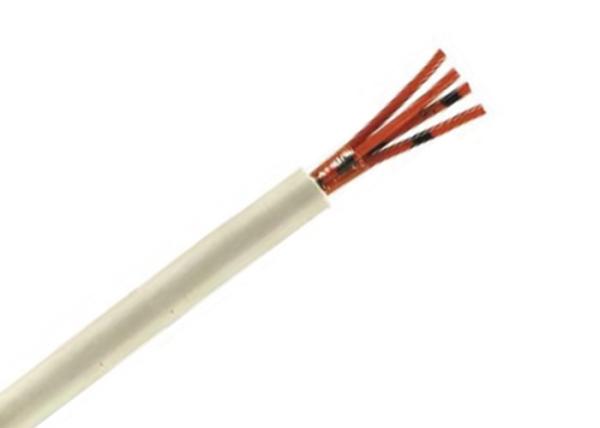

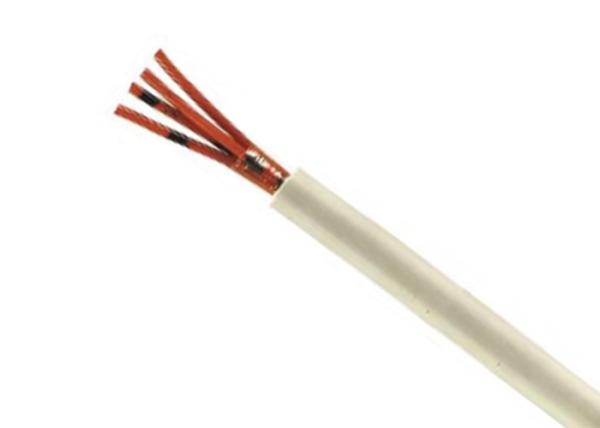

Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE
Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE
Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE
Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE
Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE
Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE
Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE
Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE
Specifications
Brand Name :
CN CABLE
Model Number :
J-YY
Certification :
VDE
Place of Origin :
Henan
MOQ :
1000meters
Payment Terms :
L/C, T/T
Delivery Time :
15days after payment
Packaging Details :
Drum
Construction :
Copper bare,solid,0,6mm diameter
Insulation :
PVC
Shielding :
plastic foil
Sheath : :
PVC
certification :
VDE
model :
J-YY
Description

Indoor cables for telecommunication J-YY ... Bd As communication cable for permanent installation.

Application

As communication cable for permanent installation. Suitable for fixed laying in dry and humid rooms, on-wall and in-wall, outdoor use. Not be used for power transmission and laying in ground.

Construction

Copper conductor:bare,solid,0,6mm diameter

Insulation: PVC

Stranding: 1*pair, cores twisted to star-quads, quads to units.

Shielding: plastic foil

Sheath: PVC, color: pebble grey, RAL 7032

Technical data

Conductor loop resistance: max.130Ω/km

Insulation resistance: min. 100MΩ*km

Operating capacity(800Hz): max.100Nf/km

Capacitance unbalance K, max.300pF/100m

Test voltage: 800v 50Hz 1Min.

Peak operating voltage: 300V

Temperature range

Flexing: -5℃…50℃

Fixed installation: -30℃…70℃

Minimum bending radius 7.5*cable diameter

Indoor Telecommunication Cable PVC Sheath For Permanent Installation VDE

Section

mm2

Copper content

kg/km
1*2*0.6 5.7
2*2*0.6 11.0
4*2*0.6 23.0
6*2*0.6 34.0
10*2*0.6 57.0
12*2*0.6 70.0
16*2*0.6 90.0
20*2*0.6 113.0
24*2*0.6 138.0
30*2*0.6 170.0
40*2*0.6 226.0
50*2*0.6 283.0
60*2*0.6 339.0
80*2*0.6 452.0
100*2*0.6 565.0
